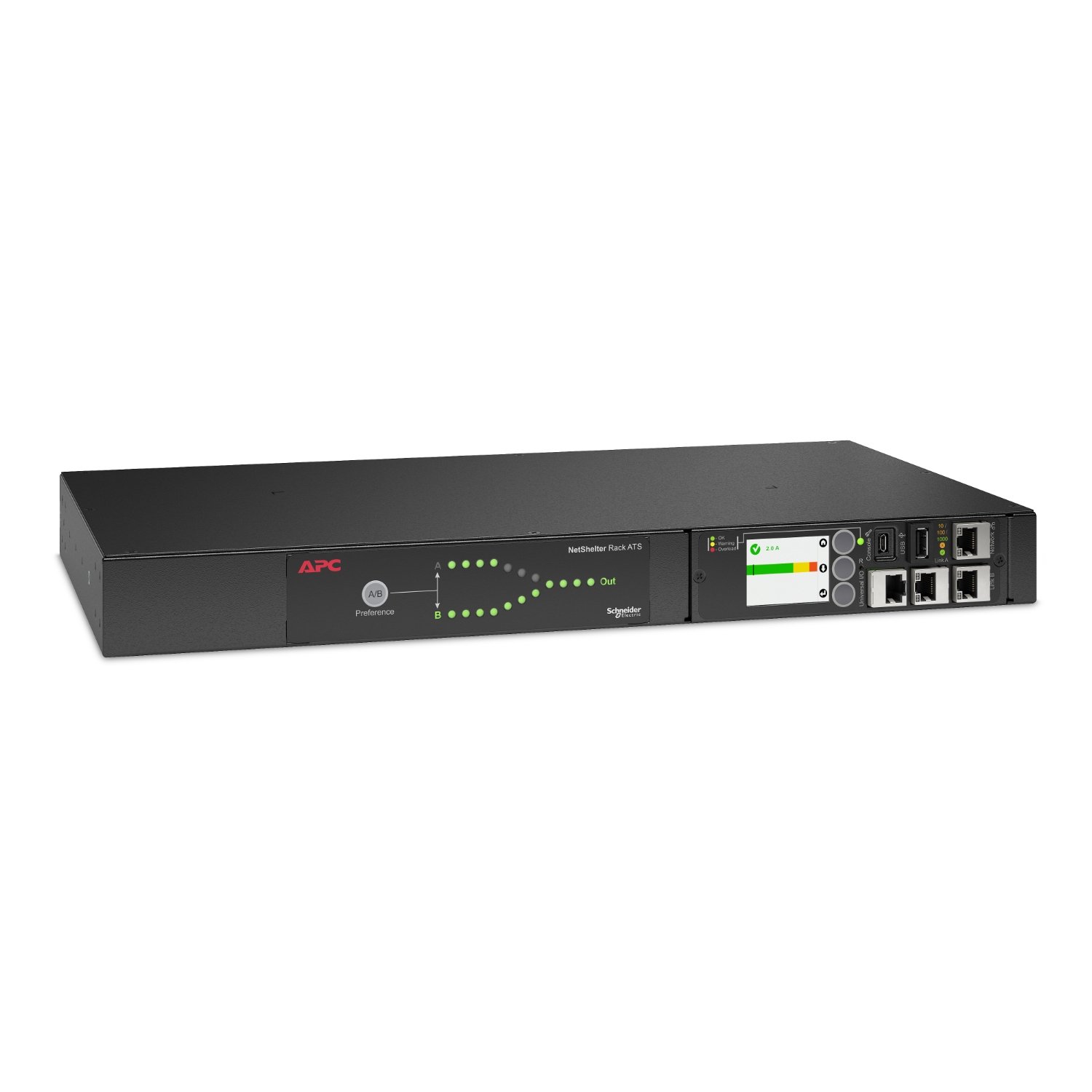

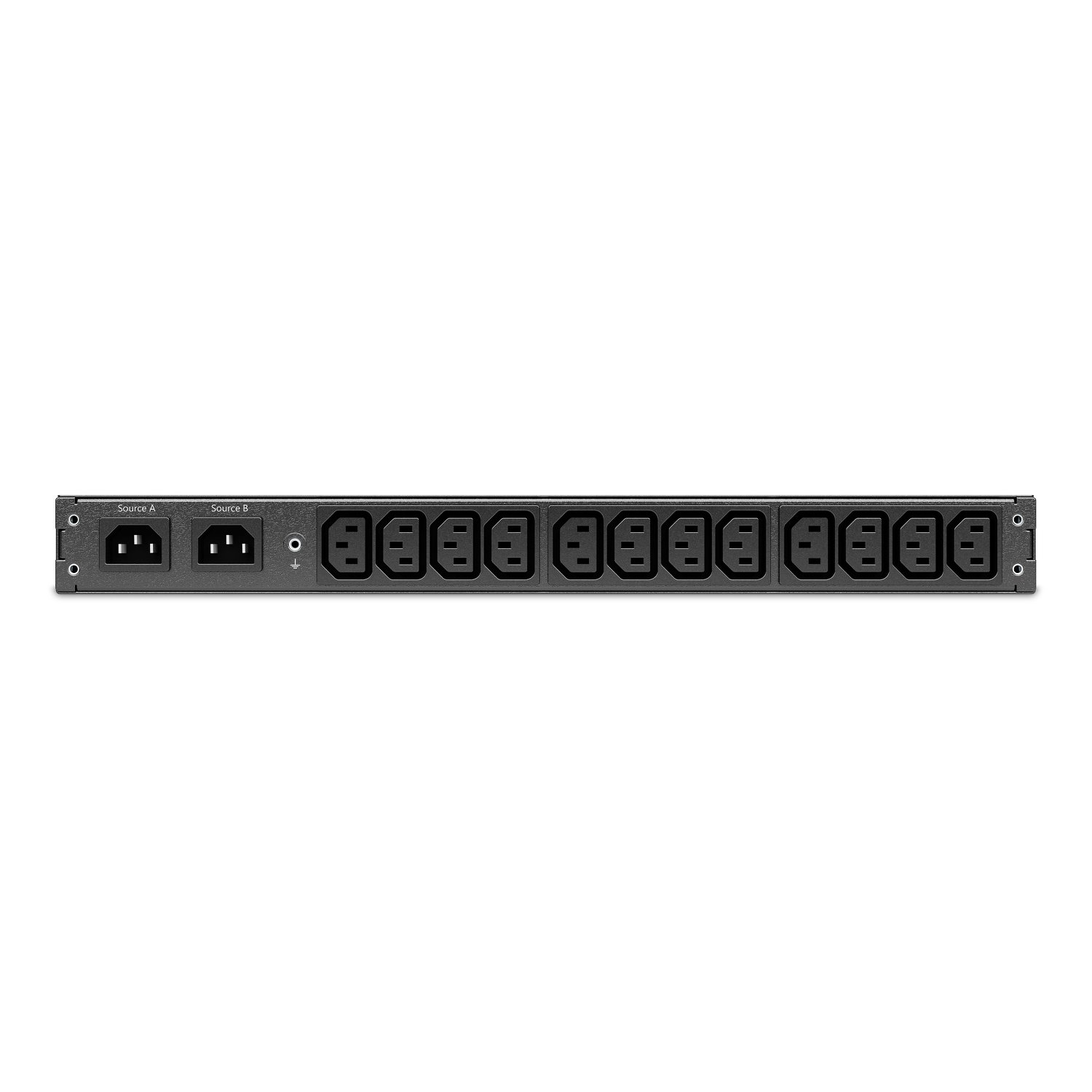

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4421A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4421A is single phase 1U Rack ATS with 10A rated current, 230V rated voltage and 2000VA load capacity. It comes with 2 IEC C14 inlet and 12 IEC C13 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Product Specifications
Manufacturer
APC by Schneider Electric
Manufacturer Part Number
AP4421A
GTIN / Barcode
0731304432425
Brand Name
APC by Schneider Electric
Product Name
APC Netshelter Rack Automatic Transfer Switch, 1U, 10A, 230V, C14 IN, 12 C13 OUT, 50/60Hz
Mfr. Part Number
AP4421A
GTIN / Barcode
0731304432425
Power
Input operation voltage (min)
207 V
Input operation voltage (max)
253 V
AC input frequency
50 - 60 Hz
Input current
10 A
Output current
10 A
Design
Form factor
Rackmount
Rack capacity
1U
Product colour
Black
Display
LCD
Ports & interfaces
AC outlets quantity
12 AC outlet(s)
AC outlet types
C13 coupler
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Technical details
Total carbon footprint (kg of CO2e)
450.72
Weight & dimensions
Width
432 mm
Depth
236 mm
Height
44 mm
Weight
3.93 kg
Brand
APC by Schneider Electric
Availability
In Stock
Price Currency
USD
Category
Network Switches
