Product Details

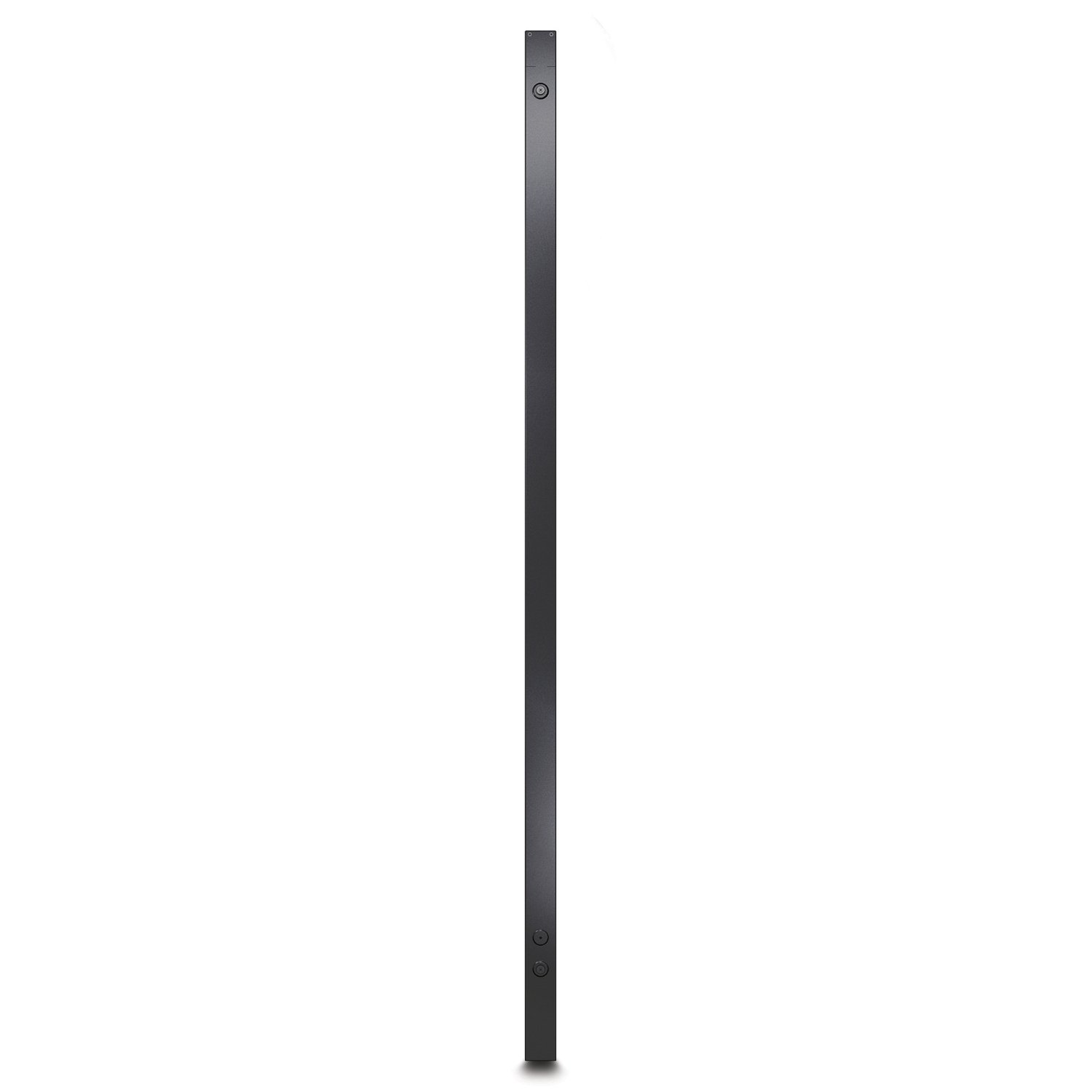

It is a switched rack PDU with a maximum current capacity of 20A and an input voltage of 415V. It features 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via an IEC 60309 20A 3P + N + PE plug. The PDU is designed for ZeroU mounting.

Product Specifications

Manufacturer	APC by Schneider Electric
Manufacturer Part Number	APDU9981NA3
GTIN / Barcode	0731304404255
Brand Name	APC by Schneider Electric
Product Name	APC Rack PDU 9000 Switched, ZeroU, 11.5kW, 200-240V, (21) C13/C15 & (3) C19/C21

Design
Mfr. Part Number	APDU9981NA3
GTIN / Barcode	0731304404255
PDU types	Switched
Type	Three-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black
Ports & interfaces
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C15 coupler, C19 coupler, C21 coupler

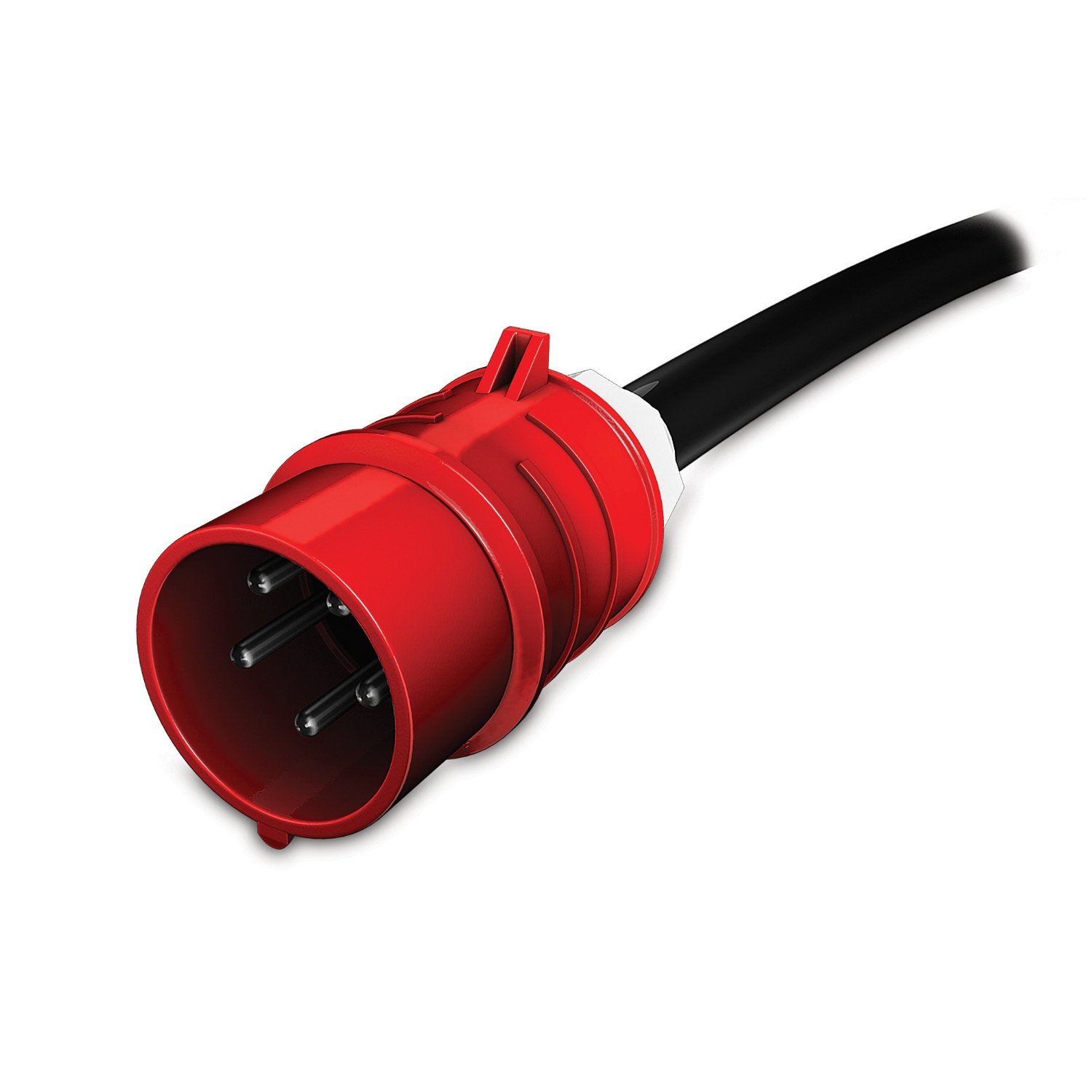

Input connection type	IEC 60309 20 A 3P + N + PE
Features
Cable length	1.82 m
Power
Nominal input voltage	415 3 phases
AC input frequency	50 - 60 Hz
Maximum current	16 A
Nominal output voltage	200 - 208 V
Output voltage	208 V; 240 V
Load capacity	11000 VA
Number of phases	3
Maximum power	11500 W
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	RoHS, REACH, WEEE
Certification	cUL listed; FCC part 15 class A; PSE
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	-5 - 60 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 15240 m
Weight & dimensions
Width	55 mm
Depth	46 mm
Height	1791 mm
Weight	7 kg
Packaging data
Package weight	8.95 kg
Package width	165 mm
Package depth	114 mm
Package height	2002 mm
Technical details
Sustainable packaging	No
Packaging recycled materials	Recycled cardboard
SCIP number	31346aed-552c-4a16-81d9-e683a383b6da
Removable battery	Yes
Preferred mounting position	no preference
Take-back system	No
Packaging without single use plastic	No
Logistics data
Customs product code (TARIC)	8537109899
Total carbon footprint (kg of CO2e)	1246.3338584171
Warranty period	3 year(s)
