Vertiv
Vertiv Avocent ACS8000 RS-232 ACS8032-NA-DAC-400
US$9,319.70
Save 5%
US$8,875.90
USD
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
- Business & Quantity Discounts Available
- Flexible Terms for Qualified Organizations
- Supporting Commercial, Government & Education Buyers
- Trusted B2B Ordering & Secure Payments
Product Details

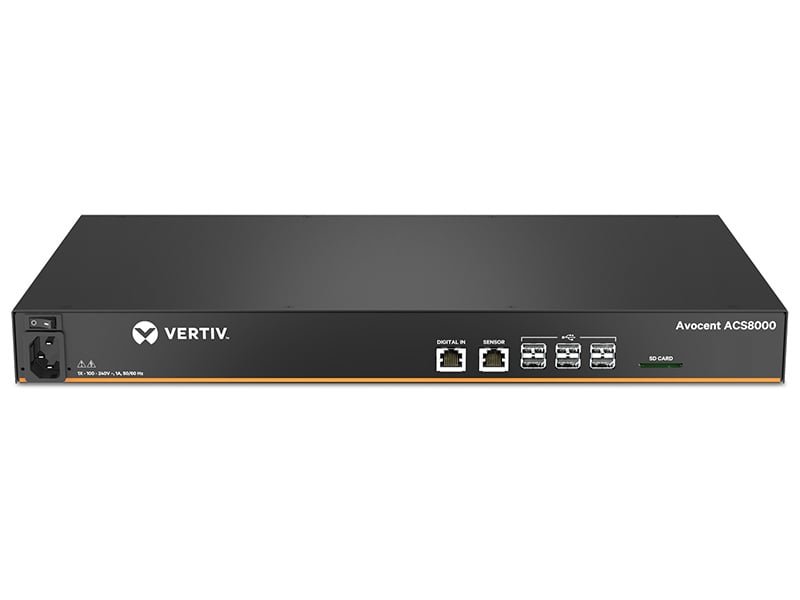

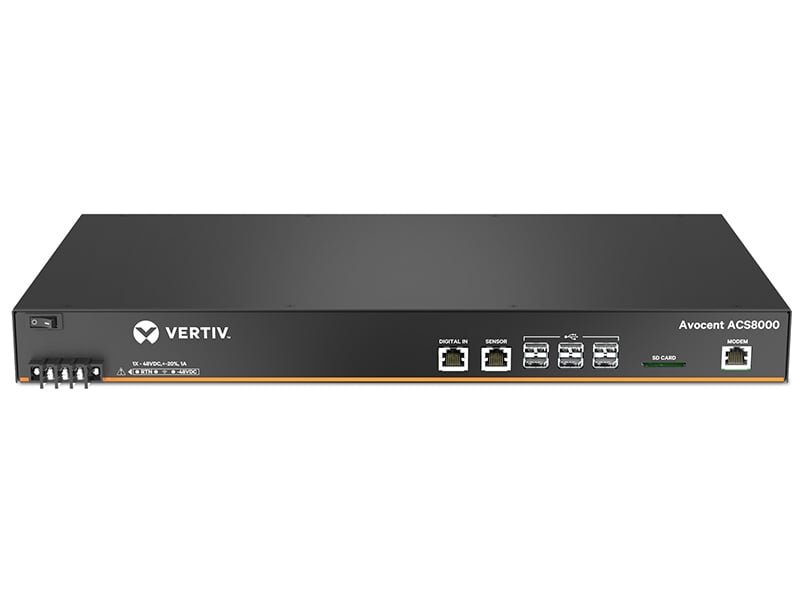

The Vertiv™ Avocent® ACS 8000 Serial Consoles deliver secure in-band and out-of-band visibility and control to downstream equipment in enterprise data centers, as well as cloud and colocation facilities. Now with cellular capabilities, the system provides flexibility to access devices when wired networks are down (failover) or unavailable at the location.
Product Specifications
| Manufacturer | Vertiv |
|---|---|
| Manufacturer Part Number | ACS8032-NA-DAC-400 |
| GTIN / Barcode | 636430090573 |
| Brand Name | Vertiv |
| Product Name | Vertiv Avocent ACS8000 RS-232 |
| Mfr. Part Number | ACS8032-NA-DAC-400 |
|---|---|
| GTIN / Barcode | 636430090573 |
| Security | |
| Security algorithms | SNMP, SSH, SSH-2, WPA2-RADIUS |
| IP address filtering | Yes |
| Ports & interfaces | |
| Console port | RS-232 |
| Serial ports quantity | 32 |
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| SFP module slots quantity | 2 |
| AC outlet types | C13 coupler |
| Software | |
| Operating system installed | Embedded LINUX |
| Technical details | |
| Mobile network generation | 4G |
| Rack mounting | Yes |
| Internal modem | Yes |
| 4G LTE | Yes |
| Event logging | Yes |
| Weight & dimensions | |
| Dimensions (WxDxH) | 438.2 x 241.3 x 44.5 mm |
| Weight | 6.4 kg |
| Power | |
| Power source type | AC |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 11 W |
| Power consumption (max) | 28 W |
| Number of power supply units | 2 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | FCC Class AUL (USA)CE Class A (EU)cUL (Canada)ICES-003 (Canada)EN-60950 (EU)VCCI (Japan)CBRCM (Australia)Customs Union (CU)KCC (Korea) |
| Memory | |
| Internal memory | 1000 MB |
| Flash memory | 16000 MB |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Processor | |
| Processor family | ARM Cortex-A9 |
| Brand | Vertiv |
| Availability | In Stock |
| Price Currency | USD |
| Category | Servers |
