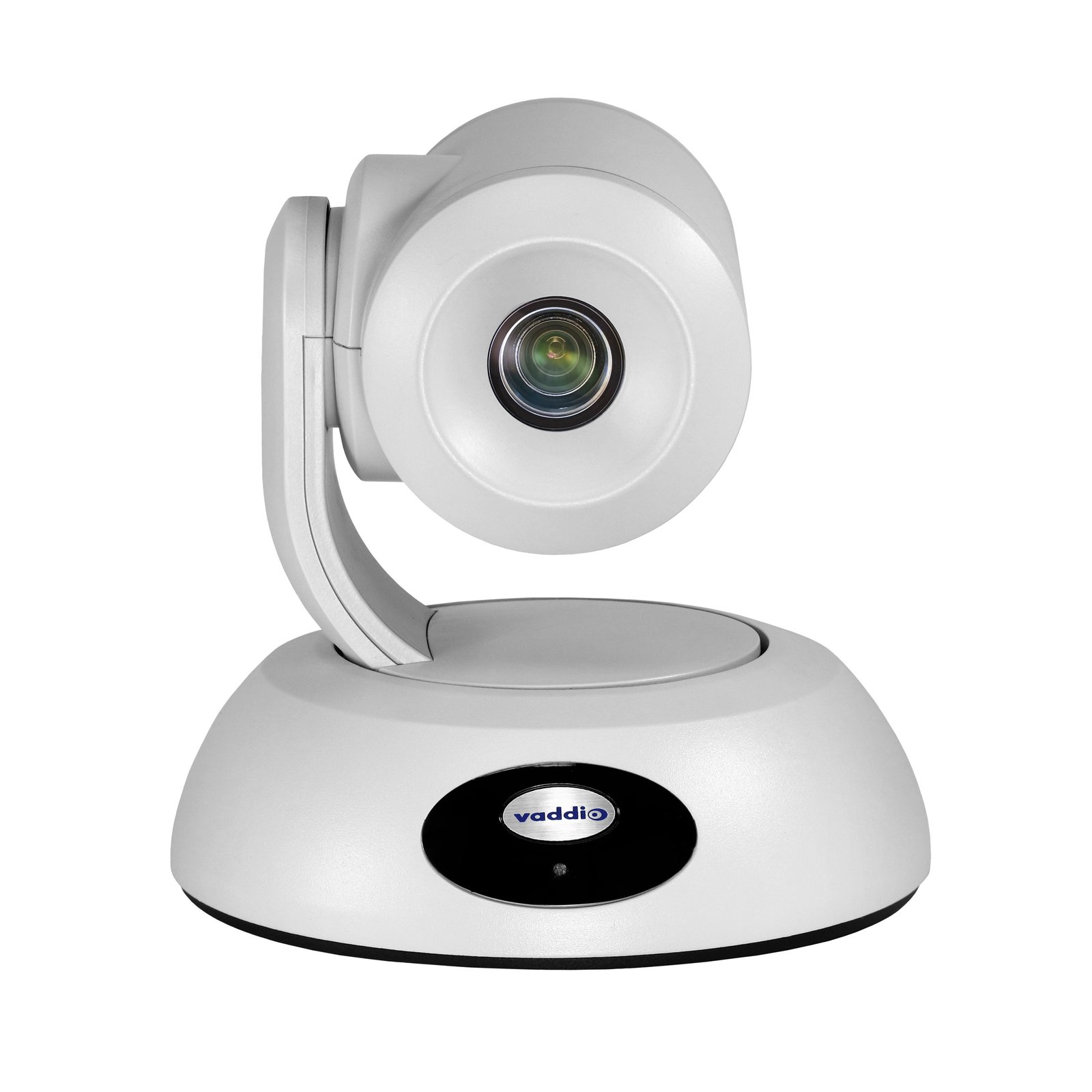

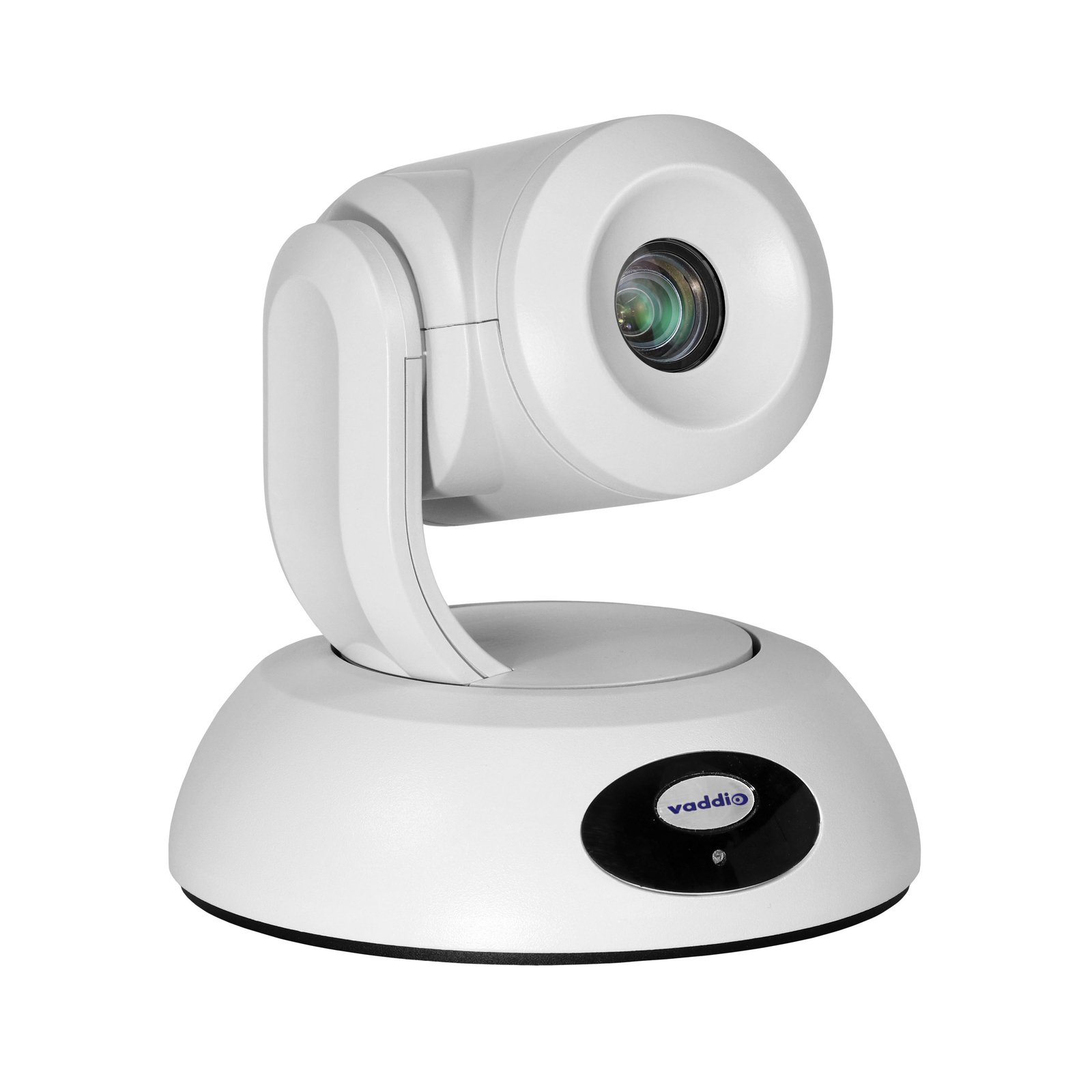

Vaddio RoboSHOT 12E HDBT OneLINK HDMI System 999-99600-100W

The RoboSHOT 12E HDBaseT camera paired with Vaddio's OneLINK HDMI extension system allows for ultimate flexibility when installing your professional PTZ camera. The improved HD quality image is perfect for capturing events in both small and medium sized spaces. The OneLINK HDMI system is our most popular extension system with single cable extension that powers and controls your camera from up to 328 feet away.



Key Features:
12x Optical Zoom
1/2.5-type Exmor R CMOS sensor
70.2° horizontal field of view
Simultaneous HDbaseT, HDMI and IP H.264 streaming
Remote IP Management
Simple, clutter-free camera extension with HDBaseT technology
Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
Simultaneous HDMI and IP Streaming outputs


Vaddio Deployment ToolEasily deploy and manage hundreds of conference rooms with the free desktop application.

Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.

RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.

A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera’s streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.

The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

The RoboSHOT 12E HDBT OneLINK HDMI System recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.

Video outputs include simultaneous HDBaseT, HDMI and IP (H.264) streaming. The system's OneLINK HDMI Receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6

This Package Includes:
RoboSHOT 12E HDBT PTZ camera (in black or white)
Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
Vaddio IR Remote Commander
OneLINK HDMI Interface
48V power supply with AC cord set(s)
EZCamera RS-232 Control Adapter


100 lux recommended
