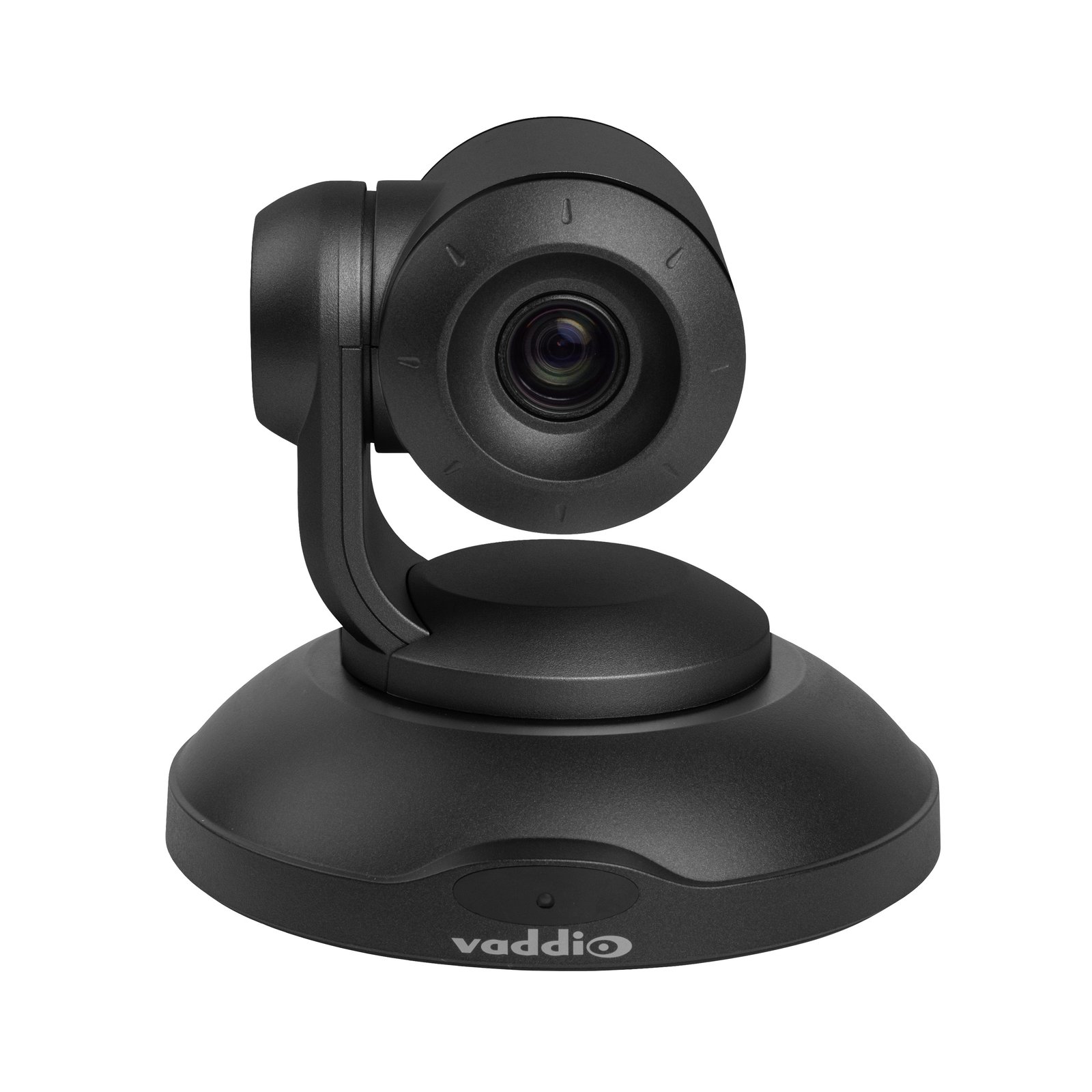

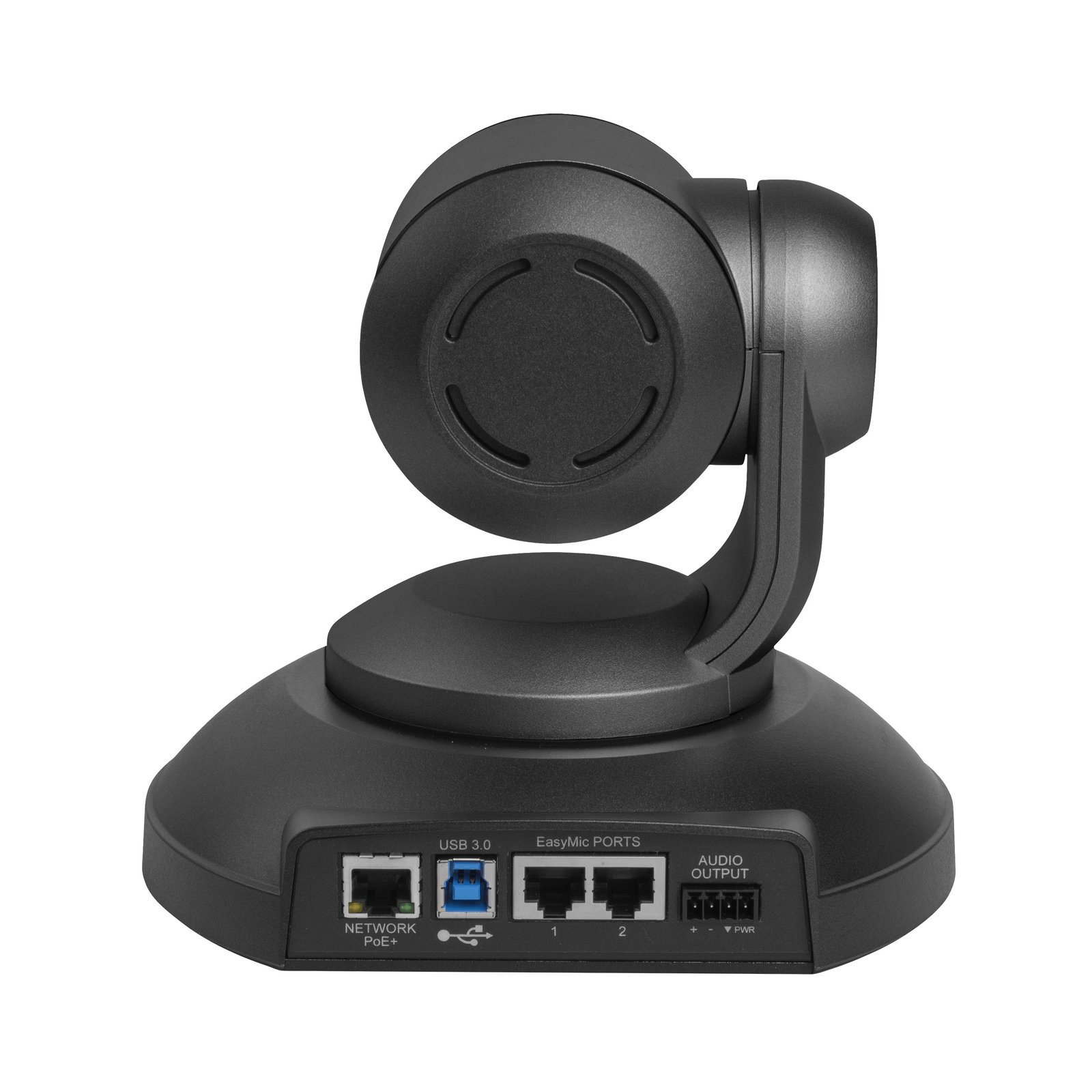

Ideal for video conferencing rooms, ConferenceSHOT AV integrates a PTZ camera and audio conferencing mixer into a single USB 3.0 device, so you can easily connect up to two microphones and an external speaker directly to the camera. Easy plug and play functionality with all major UCC soft clients such as Microsoft Teams, Google Meet and Zoom.
This conference room AV system is ideal for small to medium-sized videoconferencing rooms, choose color, power cord, speaker and microphone options to build the perfect ConferenceSHOT AV bundle for your space.
Powerful: ConferenceSHOT AV integrates a 10x zoom HD PTZ camera and audio conferencing mixer into a single USB 3.0 device, so you can easily connect microphones and an external speaker to the camera. The ConferenceSHOT AV is easy to install and allows simple plug and play functionality with all major UCC soft clients such as Microsoft Teams, WebEx and Google Meet. Simple: ConferenceSHOT AV is UVC compliant. No external drivers need to be installed on your PC – just plug and play. The versatile system supports customized AV designs with third-party equipment or can be deployed as a standalone solution. Enterprise-Class: ConferenceSHOT AV allows for remote monitoring, management and control of a distributed camera network. IP-accessible and a browser-based user interface enables both browser control and IP-live preview and setup from PCs, Macs and mobile devices including iPhone, iPad and Android devices.
This USB-based solution makes it easy for your organization to collaborate using your preferred videoconferencing software like Microsoft Teams, Google Meet and more.
ConferenceSHOT AV turns your BYOD device into a small space UC system with professional PTZ camera quality and full room audio performance. It’s a significant step up in performance from the current webcam-based technology offerings.
Product Specifications
Manufacturer
Vaddio
Manufacturer Part Number
999-99950-400B
GTIN / Barcode
0840077506414
Brand Name
Vaddio
Product Name
Vaddio ConferenceSHOT AV HD Conference Room System
Mfr. Part Number
999-99950-400B
GTIN / Barcode
0840077506414
Performance
Product colour
Black
Product type
Conferencing system set
Pan range
-162 - 162°
Pan speed range
0.35 - 90 °/sec
Tilt angle range
-30 - 90°
Tilt speed range
0.35 - 90 °/sec
PTZ control
Yes
Video
HD type
Full HD
Supported video modes
1080p
Maximum frame rate
60 fps
Camera
Megapixel (approx.)
2.14 MP
Zoom capability
Yes
Optical zoom
10x
Sensor type
CMOS
Image sensor size
1/2.8"
Field of view (FOV) angle
70°
Field of view (wide)
74°
Field of view (tele)
7.6°
Focus adjustment
Auto/Manual
Number of camera presets
16
PTZ motors
Stepper Motors
Minimum illumination
0.4 lx
White balance
Auto, Manual, One push
Gain control type
Auto/Manual
Microphone
Number of microphones
2
Features
Control method
IR remote, Joystick, RS-232, Telnet, Web UI
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-5 - 60 °C
Storage relative humidity (H-H)
20 - 80%
Power
Power source type
PoE
Certificates
Compliance certificates
Trade Agreements Act (TAA), Federal Communications Commission (FCC), CE, UL
Weight & dimensions
Speaker dimensions (WxDxH)
184 x 171 x 92 mm
Camera dimensions (WxDxH)
155 x 145 x 163 mm
Weight
2.5 kg
Packaging data
Package width
711.2 mm
Package depth
330.2 mm
Package height
457.2 mm
Package weight
7.7 kg
Packaging content
Number of microphones included
2
Speaker included
Yes
Microphone included
Yes
