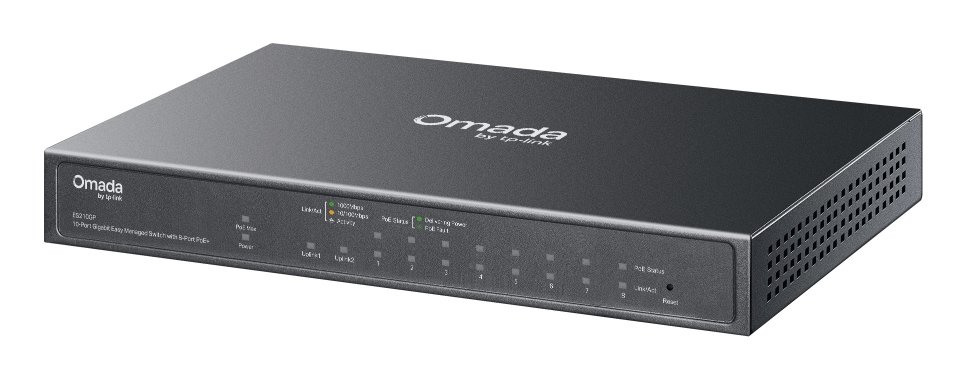

Name: TP-Link Omada ES210GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over (PoE) DIN
Brand: TP-Link
SKU: ES210GP
Price: 123.49 USD
Availability: InStock

856-283-0457 sales@centraldistributor.com 81 Erial Rd Apt B, Clementon, NJ, 08021

Home /Networking & Communications /Network Switches /TP-Link Omada ES210GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Black

Product Details

TP-Link Omada ES210GP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. DC input voltage: 53 V. Power over Ethernet (PoE). Rack mounting, Form factor: DIN rail

Product Specifications

Manufacturer	TP-Link
Manufacturer Part Number	ES210GP
GTIN / Barcode	1210002609722
Brand Name	TP-Link
Product Name	TP-Link Omada ES210GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Black

Management features
Mfr. Part Number	ES210GP
GTIN / Barcode	1210002609722
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	1
Network
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support	No
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs	4000
Optical fiber
Transmission distance (max)	0.25 km
Data transmission
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
MAC address table	8000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	15000
Packet buffer memory	0.5 MB
Security
DHCP features	DHCP client
IGMP snooping	Yes
Loop protection	Yes
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Form factor	DIN rail
Product colour	Black
LED indicators	Yes
Power
Power source	DC
DC input voltage	53 V
Input current	1.31 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	63 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	209 mm
Depth	126 mm
Height	26 mm
Packaging content
Cables included	Power
Quick start guide	Yes
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Brand	TP-Link
Availability	In Stock
Price Currency	USD
Category	Network Switches
