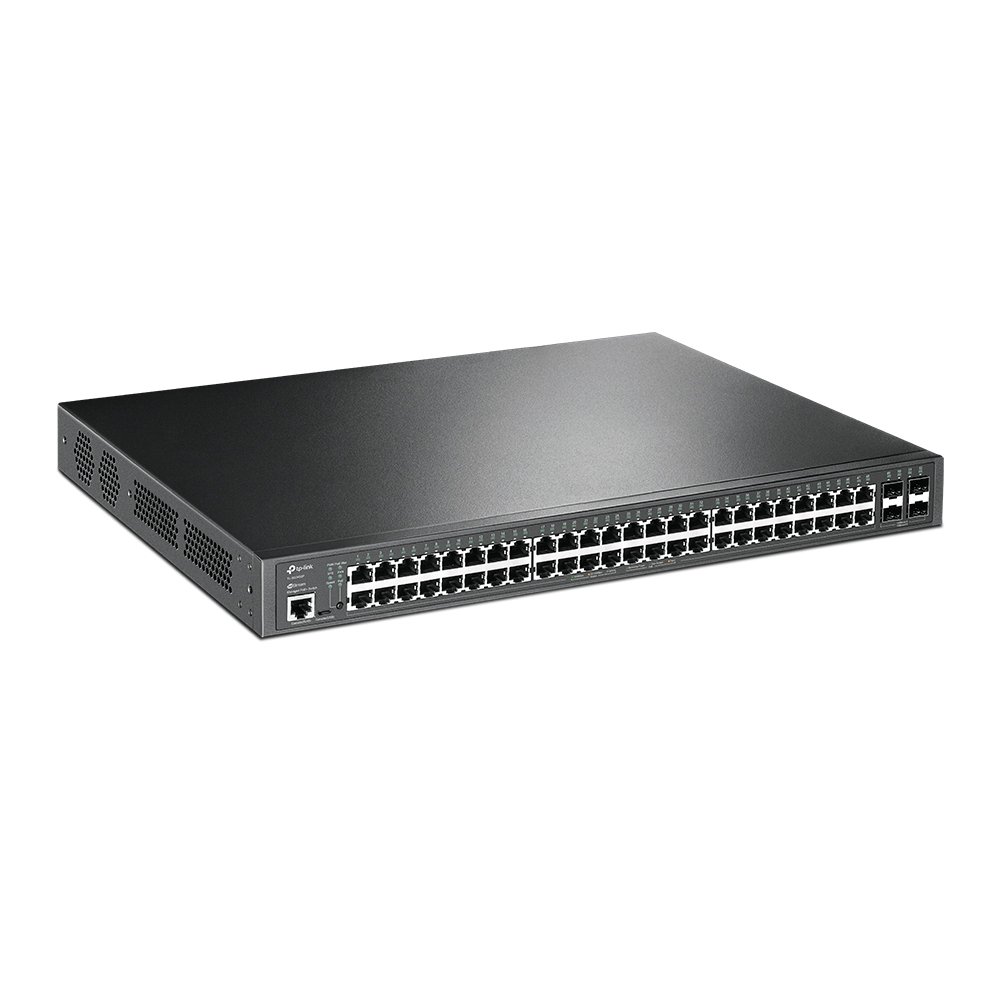

Name: TP-Link JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+ SG3452P
Brand: TP-Link
SKU: SG3452P
Price: 655.49 USD
Availability: InStock

856-283-0457 sales@centraldistributor.com 81 Erial Rd Apt B, Clementon, NJ, 08021

Home /Networking & Communications /Network Switches /TP-Link JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

Product Details

JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

Product Specifications

Manufacturer	TP-Link
Manufacturer Part Number	SG3452P
GTIN / Barcode	6935364006280
Brand Name	TP-Link
Product Name	TP-Link JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

Management features
Mfr. Part Number	SG3452P
GTIN / Barcode	6935364006280
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
System event log	Yes
MIB support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4
Console port	RJ-45/micro-USB
Power connector	AC-in jack
Network
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
10G support	No
Port mirroring	Yes
IP routing	Yes
Policy-based routing	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Active link detection	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
Data transmission
Switching capacity	104 Gbit/s
Forwarding rate	77.4 Mpps
MAC address table	16000 entries
Store-and-forward	Yes
Static route	Yes
Number of static routes	48
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	12 MB
Security
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	MAC-based authentication, Port-based authentication
Password protection	Yes
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Yes
Design
Rack mounting	Yes
Form factor	1U
Product colour	Black
Reset button	Yes
LED indicators	Yes
Number of fans	3 fan(s)
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	485.4 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	48
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	384 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1656.19 BTU/h
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm
Packaging content
Cables included	AC
Quick start guide	Yes
Manual	Yes
Packaging data
Package type	Box
Package width	440 mm
Package depth	528 mm
Package height	100 mm
Package weight	6.77 kg
Brand	TP-Link
Availability	In Stock
Price Currency	USD
Category	Network Switches
