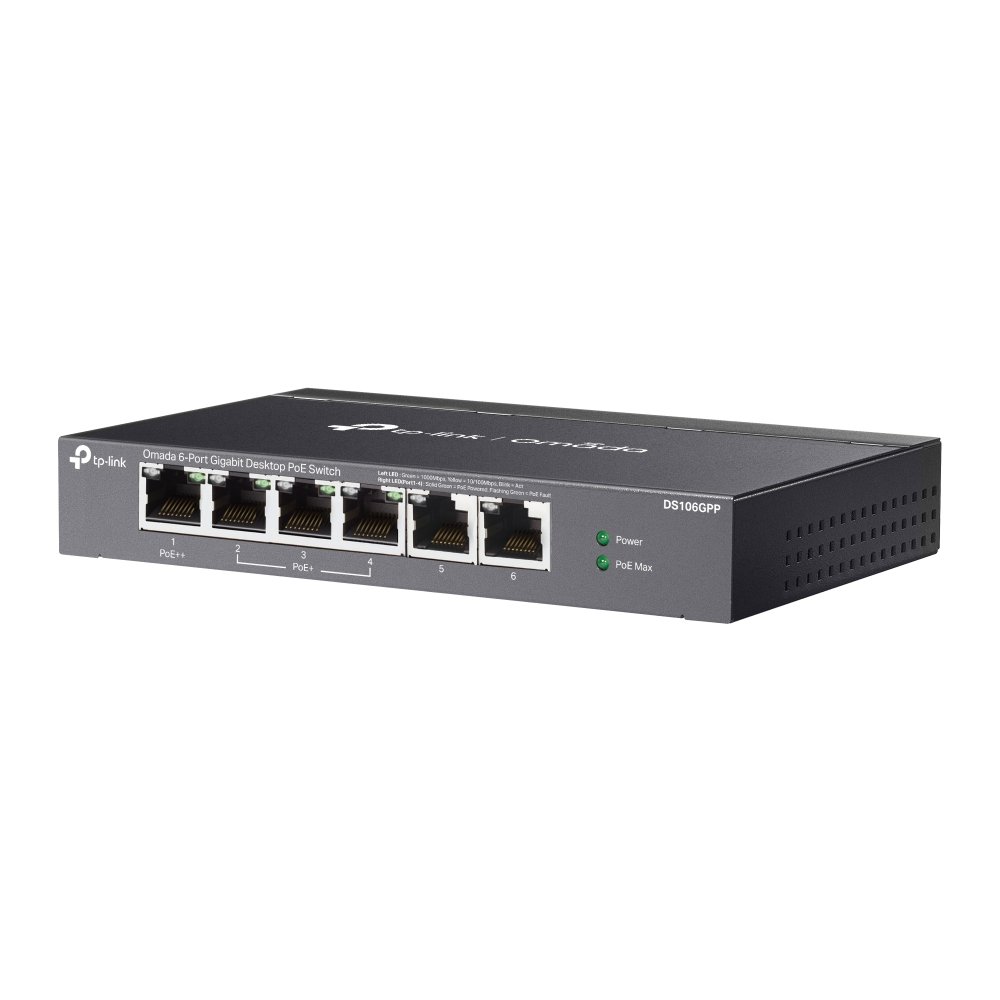

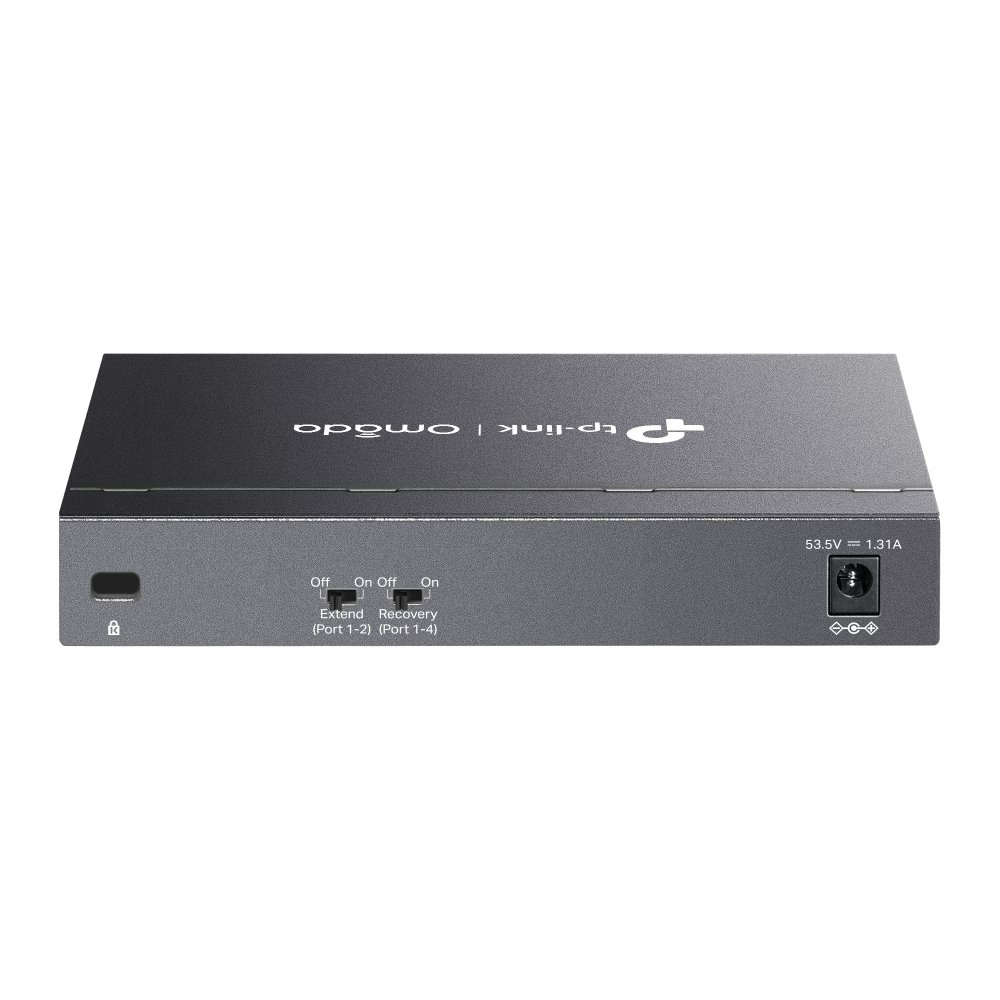

Name: TP-Link Omada DS106GPP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over (PoE)
Brand: TP-Link
SKU: DS106GPP
Price: 103.99 USD
Availability: InStock

856-283-0457 sales@centraldistributor.com 81 Erial Rd Apt B, Clementon, NJ, 08021

Home /Networking & Communications /Network Switches /TP-Link Omada DS106GPP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Product Details

TP-Link Omada DS106GPP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 4000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. Power connector: DC-in jack. Power over Ethernet (PoE)

Product Specifications

Manufacturer	TP-Link
Manufacturer Part Number	DS106GPP
GTIN / Barcode	0840030712555
Brand Name	TP-Link
Product Name	TP-Link Omada DS106GPP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Management features
Mfr. Part Number	DS106GPP
GTIN / Barcode	0840030712555
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Network
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto-negotiation	Yes
Data transmission
Switching capacity	12 Gbit/s
Forwarding rate	8.928 Mpps
MAC address table	4000 entries
Store-and-forward	Yes
Security
IGMP snooping	Yes
Design
Product colour	Black
Housing material	Steel
Reset button	Yes
Performance
Fanless	Yes
Power
Power source	AC/DC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input voltage	53.5 V
Power consumption (max)	71.46 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet plus (PoE+) ports quantity	3
Power over Ethernet 4PPoE (PoE++) ports quantity	1
Power over Ethernet (PoE) power per port	64 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	243.68 BTU/h
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	25 mm
Packaging content
Cables included	Power
User guide	Yes
Packaging data
Rubber feet	Yes
Certificates
Compliance certificates	CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA
Brand	TP-Link
Availability	In Stock
Price Currency	USD
Category	Network Switches
