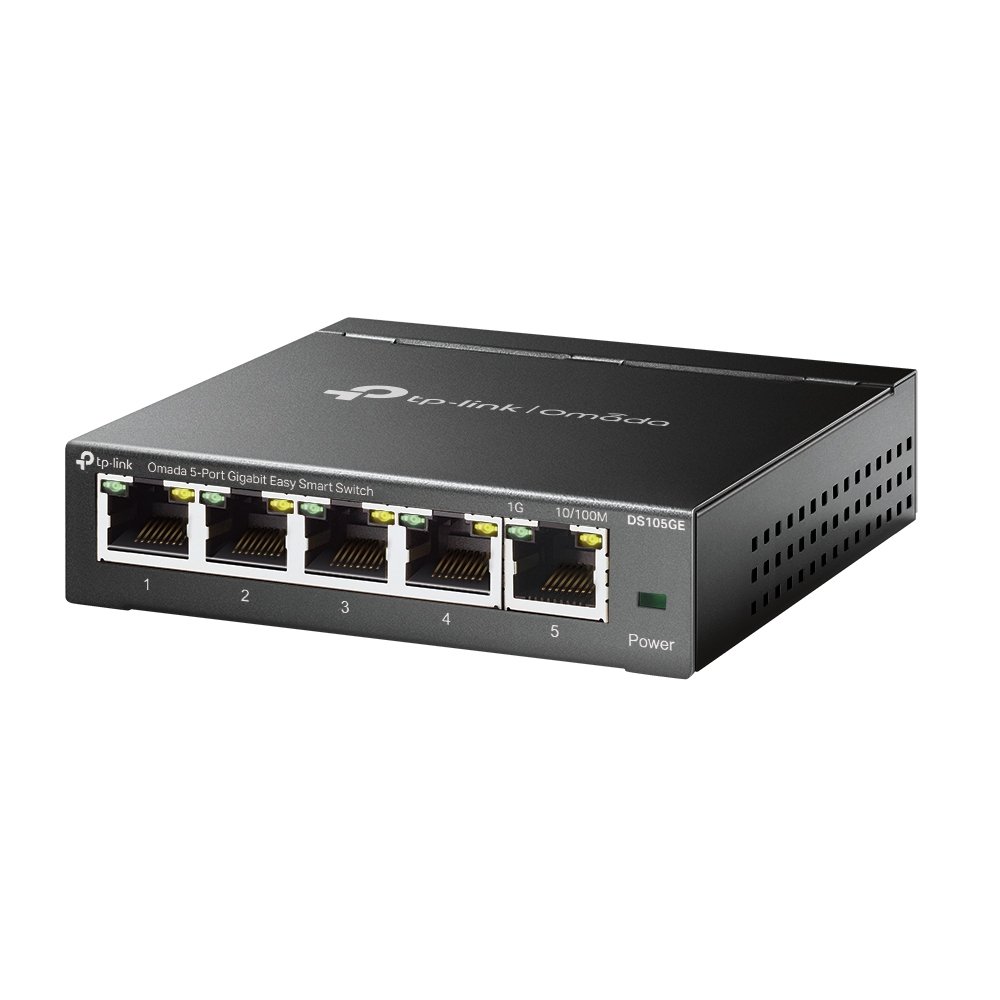

Name: TP-Link Omada DS105GE network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Brand: TP-Link
SKU: DS105GE
Price: 32.49 USD
Availability: InStock

856-283-0457 sales@centraldistributor.com 81 Erial Rd Apt B, Clementon, NJ, 08021

Home /Networking & Communications /Network Switches /TP-Link Omada DS105GE network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

Product Details

TP-Link Omada DS105GE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack

Product Specifications

Manufacturer	TP-Link
Manufacturer Part Number	DS105GE
GTIN / Barcode	0840030711985
Brand Name	TP-Link
Product Name	TP-Link Omada DS105GE network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

Management features
Mfr. Part Number	DS105GE
GTIN / Barcode	0840030711985
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto-negotiation	Yes
Virtual LAN features	Port-based VLAN, Tagged VLAN
Number of VLANs	32
Data transmission
Switching capacity	10 Gbit/s
Forwarding rate	7.4 Mpps
MAC address table	2000 entries
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	16
Packet buffer memory	1 MB
Security
IGMP snooping	Yes
Loop protection	Yes
Queue scheduling algorithms	Priority queuing (PQ)
Design
Rack mounting	No
Product colour	Black
Housing material	Steel
Reset button	Yes
LED indicators	Activity, Link, Power
Performance
Fanless	Yes
Power
Power source	AC/DC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
DC input voltage	5 V
Input current	0.6 A
Power consumption (max)	2.82 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	9.62 BTU/h
Weight & dimensions
Width	100 mm
Depth	98 mm
Height	25 mm
Packaging content
Cables included	Power
User guide	Yes
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
Brand	TP-Link
Availability	In Stock
Price Currency	USD
Category	Network Switches
