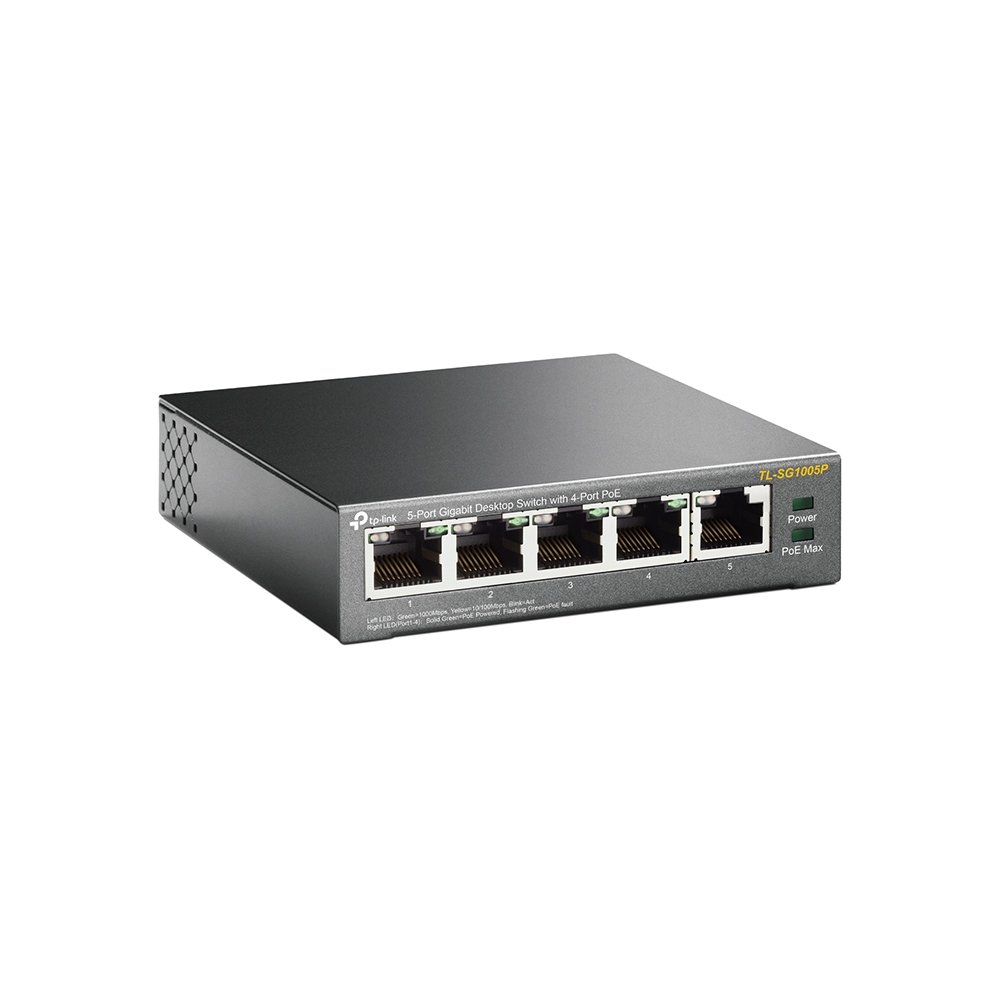

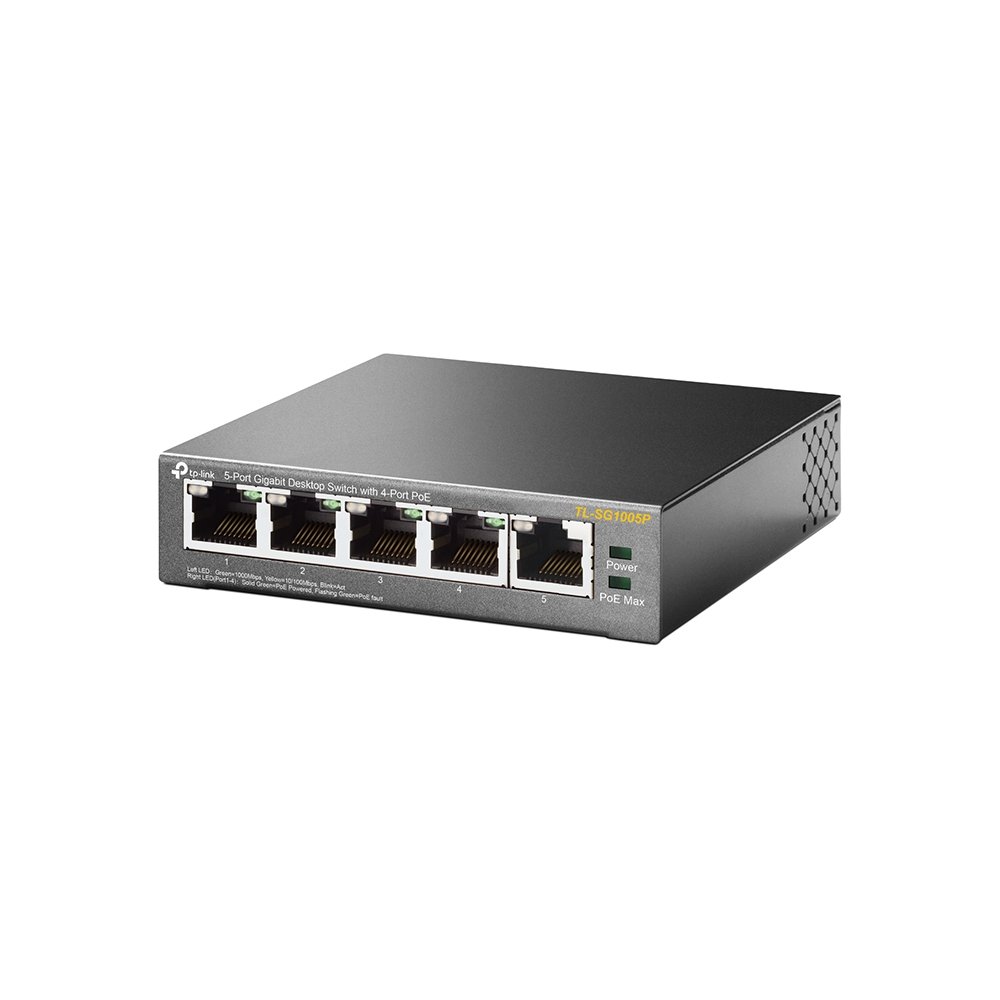

TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port TL-SG1005P
$68.24
Save 5% · $3.25
$64.99
USD
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
- Business & Quantity Discounts Available
- Flexible Terms for Qualified Organizations
- Supporting Commercial, Government & Education Buyers
- Trusted B2B Ordering & Secure Payments
Product Details
PoE Switches for Your Ultra Convenience
5-Port Gigabit Desktop Switch with 4-Port PoE
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
5-Port Gigabit Desktop Switch with 4-Port PoE
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Product Specifications
| Manufacturer | TP-Link |
|---|---|
| Manufacturer Part Number | TL-SG1005P |
| GTIN / Barcode | 6935364083212 |
| Brand Name | TP-Link |
| Product Name | TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port |
| Mfr. Part Number | TL-SG1005P |
|---|---|
| GTIN / Barcode | 6935364083212 |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| VLAN support | Yes |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Security | |
| IGMP snooping | Yes |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
| Performance | |
| Maximum cable length | 100 m |
| Fanless | Yes |
| Power | |
| Power source | DC/PoE |
| Power supply included | Yes |
| AC input voltage | 100 - 220 V |
| AC input frequency | 50 Hz |
| DC input voltage | 48 V |
| Input current | 1.25 A |
| Power consumption (max) | 64.44 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 56 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 219.87 BTU/h |
| Weight & dimensions | |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Packaging content | |
| Cables included | AC |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Packaging data | |
| AC adapter included | Yes |
| Package type | Box |
| Package width | 131 mm |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 761 g |
| Sustainability | |
| Sustainability compliance | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certification | FCC, CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Brand | TP-Link |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
