Product Details

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Product Specifications

Manufacturer	MSI
Manufacturer Part Number	B650MP
GTIN / Barcode	4711377100953
Brand Name	MSI

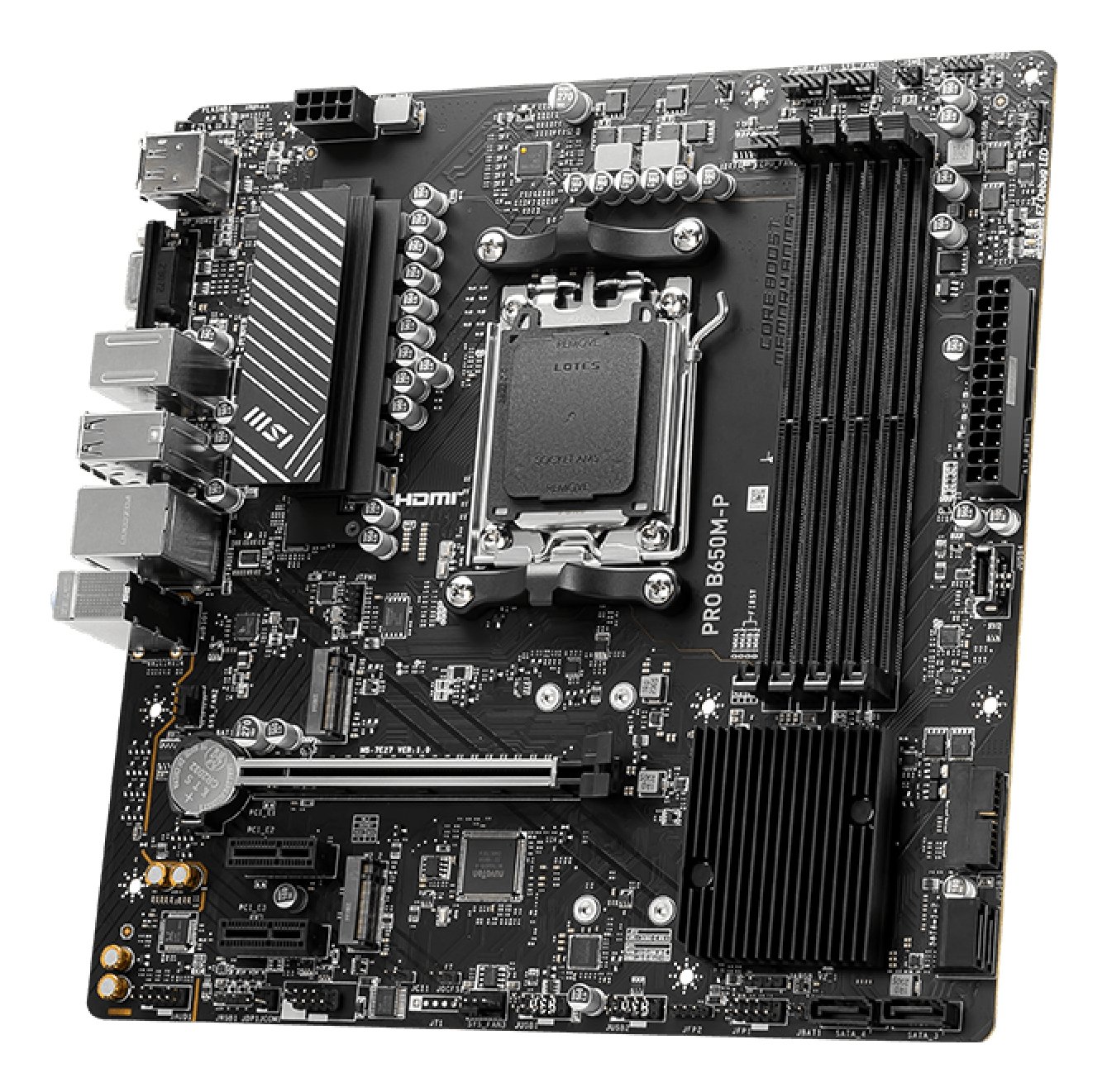

Product Name	MSI PRO B650M-P motherboard AMD B650 Socket AM5 micro ATX

Processor
Mfr. Part Number	B650MP
GTIN / Barcode	4711377100953
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series
Supported processor sockets	Socket AM5
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
ECC сompatibility	Non-ECC
Supported memory clock speeds	6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Maximum internal memory	192 GB
Storage controllers
Supported storage drive interfaces	M.2, SATA
Number of storage drives supported	6
RAID support	Yes
RAID levels	0, 1, 10
Graphics
On-board graphics card	No
Internal I/O
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125-BG
Wi-Fi	No
Top Wi-Fi standard	Not available
Features
Motherboard chipset	AMD B650
Audio chip	Realtek ALC897
Audio output channels	7.1 channels
Product colour	Black
PC health monitoring	Fan
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Windows operating systems supported	Windows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	6.4
System Management BIOS (SMBIOS) version	3.5
Weight & dimensions
Width	243.8 mm
Depth	243.8 mm
