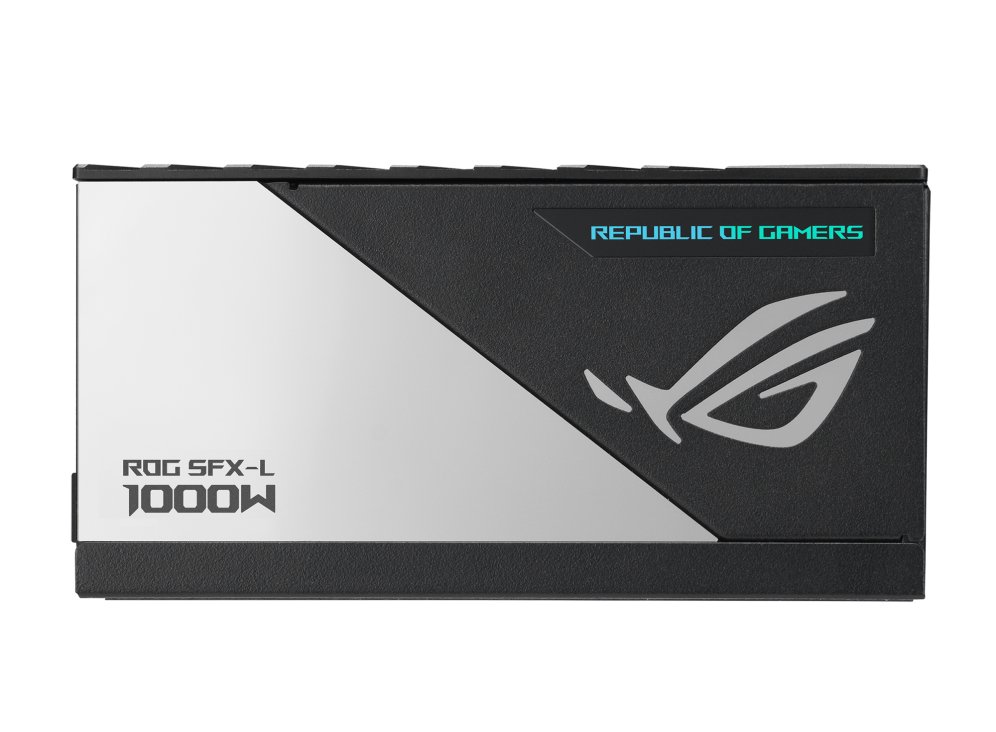

ROG Loki 1000W Platinum The Quietest SFX-L PSU Taking after the ROG Thor, the ROG Loki SFX-L 1000W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
ROG Heatsinks Cool under pressure ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
80 PLUS Platinum Certified Effortless output Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.
ATX 3.0 Compatible Step into the future The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.
ARGB-illuminated Fan & Aura Sync Magical glow The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.
* If the connector cable is not used, the default color effect is rainbow. * To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.
Product Specifications
Manufacturer
ASUS
Manufacturer Part Number
ROG-LOKI-1000P-SFX-L-GAMI
GTIN / Barcode
4711081721901
Brand Name
ASUS
Product Name
ASUS ROG Loki SFX-L 1000W Platinum power supply unit 24-pin ATX Black, Silver
Mfr. Part Number
ROG-LOKI-1000P-SFX-L-GAMI
GTIN / Barcode
4711081721901
Power
Total power
1000 W
AC input voltage
100 - 240 V
Combined power (+3.3V)
110 W
Combined power (+12V)
1000 W
Combined power (+5V)
110 W
Combined power (-12V)
9.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
20 A
Max output current (+12V)
83.3 A
Max output current (+5V)
20 A
Max output current (-12V)
0.8 A
Max output current (+5Vsb)
2.5 A
Ports & interfaces
Motherboard power connector
24-pin ATX
Number of SATA power connectors
6
Peripheral (Molex) power connectors (4-pin)
4
PCI Express power connectors (8-pin)
3
PCI Express power connectors (16-pin)
1
CPU power connector (4+4 pin)
Yes
PCI Express connector
Yes
Cabling type
Fully-Modular
Performance
80 PLUS certification
80 PLUS Platinum
Supported motherboard form factors
ATX
Purpose
PC
Power supply unit (PSU) form factor
SFX-L
ATX version
3.1
Silent mode
Yes
Design
Product colour
Black, Silver
Cooling type
Semi-passive
Fan diameter
12 cm
Number of fans
1 fan(s)
Illumination
Yes
Certificates
Compliance certificates
RoHS
Certification
OPP/OVP/UVP/SCP/OCP/OTP
Weight & dimensions
Width
125 mm
Depth
125 mm
Height
63.5 mm
Weight
1.83 kg
Packaging data
Package width
285 mm
Package depth
190 mm
Package height
100 mm
Package weight
2.52 kg
Package type
Box
Brand
ASUS
Availability
In Stock
Price Currency
USD
Category
Power & UPS
