Home /Networking & Communications /APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 208V/230V, Hard wire 3-wire(2PH+G)+3-wire(H+N+E)+3-wire(H+N+G) outlets, Network Card+SmartSlot, W/ rail kit

Product Details

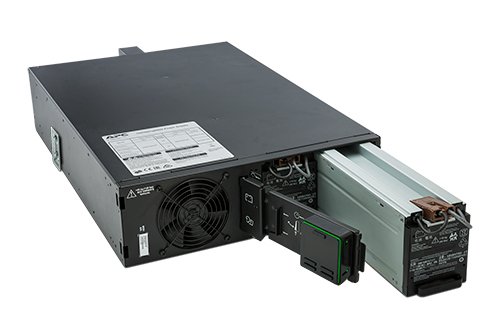

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) and 3-wire (1P+N+E) inputs, hard wire 3-wire (H+N+E), 3-wire (H+N+G) and 3-wire (2PH+G) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

Product Specifications

Manufacturer	APC by Schneider Electric
Manufacturer Part Number	SRT5KRMXLW-HW
GTIN / Barcode	0731304301516
Brand Name	APC by Schneider Electric
Product Name	APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 208V/230V, Hard wire 3-wire(2PH+G)+3-wire(H+N+E)+3-wire(H+N+G) outlets, Network Card+SmartSlot, W/ rail kit

Features
Mfr. Part Number	SRT5KRMXLW-HW
GTIN / Barcode	0731304301516
UPS topology	Double-conversion (Online)
Output power capacity	5 kVA
Output power	4500 W
Waveform	Sine
Input operation voltage (min)	100 V
Input operation voltage (max)	275 V
Input frequency	40 - 70 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency regulation	50/60 Hz
Surge energy rating	480 J
Efficiency	93.8%
Crest factor	3:1
Emergency Power Off (EPO)	Yes
Noise level	55 dB
Surge protection	Yes
Audible alarm(s)	Yes
Auto-restart	Yes
Ports & interfaces
AC outlet types	Hard Wire 3-wire (2PH + G)
Power plug	Hardwire
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
SmartSlot	Yes
SmartConnect port	No
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	845 VAh
Number of batteries supported	1
Typical backup time at full load	4 min
Typical backup time at half load	11.8 min
Battery life (max)	5 year(s)
Battery recharge time	1.5 h
Hot-swap battery	Yes
Automatic battery test	Yes
Cold start	Yes
Design
Form factor	Rackmount
Rack capacity	3U
Product colour	Black
Display type	LCD
LED indicators	Status
International Protection (IP) code	IP20
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Certificates
Compliance certificates	RoHS
Certification	REACH, CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IRAM, NOM, RCM, UL
Packaging content
Management card included	Yes
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	432 mm
Depth	719 mm
Height	130 mm
Weight	55.8 kg
Packaging data
Package width	610 mm
Package depth	960 mm
Package height	330 mm
Package weight	68 kg
Logistics data
Products per pallet	6 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	8442.38
Other features
Number of phases	3
Battery type	APCRBC140
Output connections	1x Hard Wire 3-wire (2PH + G) 1x Hard Wire 3-wire (H N + G)
