APC by Schneider Electric
APC Subscription, PowerChute Network Shutdown for Virtualization and HCI, 6 year
Mfr. Part# SWPCNS6Y-DIGI
$904.42
$861.35
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
| Manufacturer | APC by Schneider Electric |
|---|---|
| Manufacturer Part Number | SRT2200RMXLA-NC |
| GTIN / Barcode | 0731304325154 |
| Brand Name | APC by Schneider Electric |

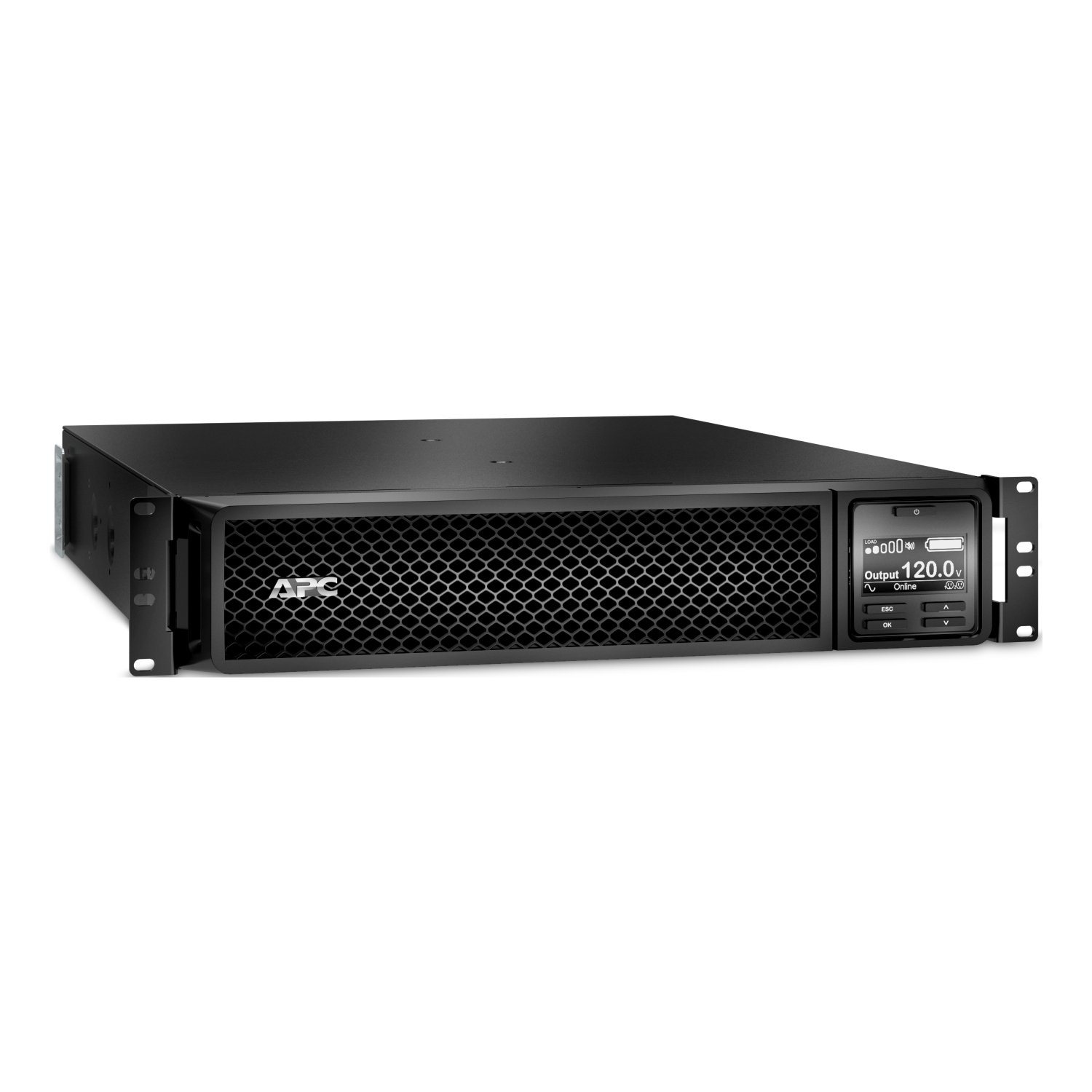

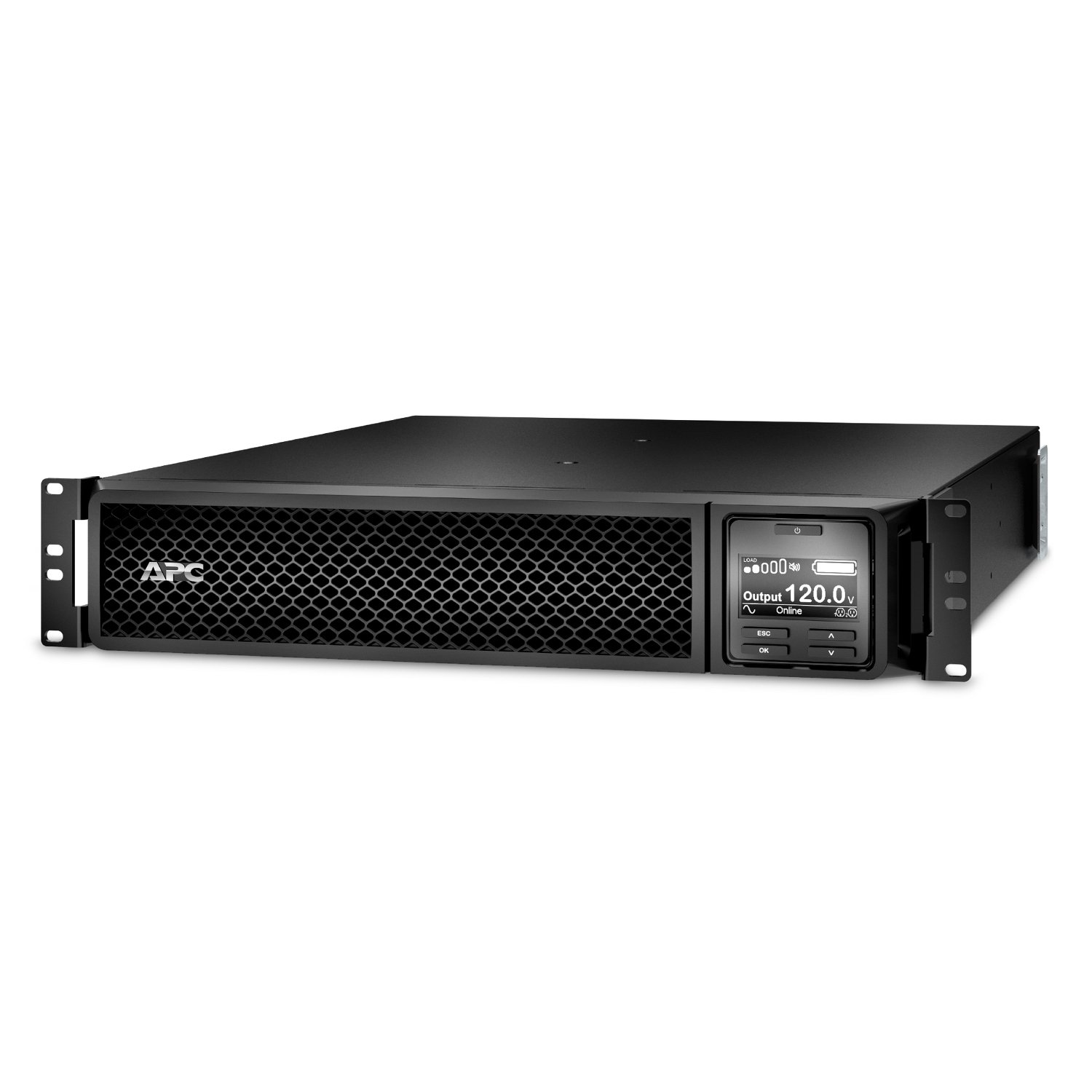

| Product Name | APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, Network Card, Extended runtime, W/ rail kit |
| Mfr. Part Number | SRT2200RMXLA-NC |
|---|---|
| GTIN / Barcode | 0731304325154 |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 2.2 kVA |
| Output power | 1800 W |
| Waveform | Sine |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 120 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 120 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 340 J |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Single-phase input voltage supported | 120 V |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| Ports & interfaces | |
| AC outlet types | NEMA 5–20R, NEMA L5-20R |
| Power plug | NEMA 5-20P |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Battery | |
| Battery replacement accessibility | End-user |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 306 Ah |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Replacement battery cartridge | APCRBC141 |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Cable length | 1.8 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Alarm, Status |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Sustainable packaging | No |
| Packaging recycled materials | Recycled cardboard |
| SCIP number | 4282bd22-a353-4f82-bb5c-97bbd7f1d1e9 |
| Proposition 65 | Yes |
| Preferred mounting position | lower |
| Take-back system | No |
| Packaging without single use plastic | No |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | ENERGY STAR V2.0 (USA) |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 584 mm |
| Height | 85 mm |
| Weight | 25 kg |
| Packaging data | |
| Package width | 599 mm |
| Package depth | 810 mm |
| Package height | 246 mm |
| Package weight | 34 kg |
| Logistics data | |
| Products per pallet | 12 pc(s) |
| Customs product code (TARIC) | 8504409590 |
| Total carbon footprint (kg of CO2e) | 5956.2860008137 |
| Other features | |
| Input connection type | NEMA 5-20P |
| Output connection type | 6 NEMA5-20R; 1 NEMAL5-20R |
| Output voltage | 120 V |
| Mounting | front; horizontal |
| Brand | APC by Schneider Electric |
| Availability | In Stock |
| Price Currency | USD |
| Category | Networking & Communications |
No reviews yet. If you have bought this, yours would be the first.
