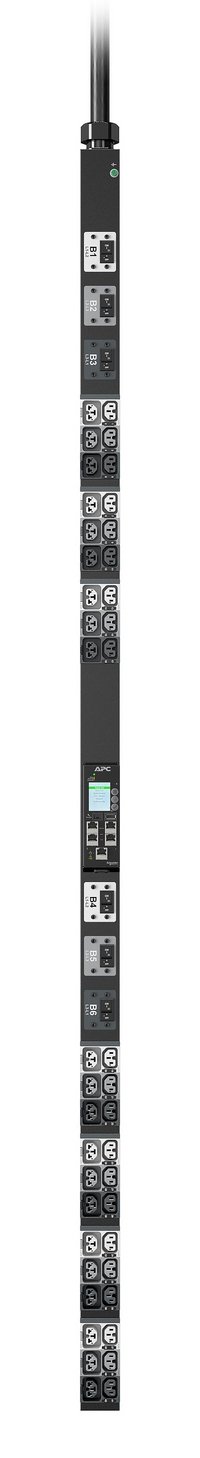

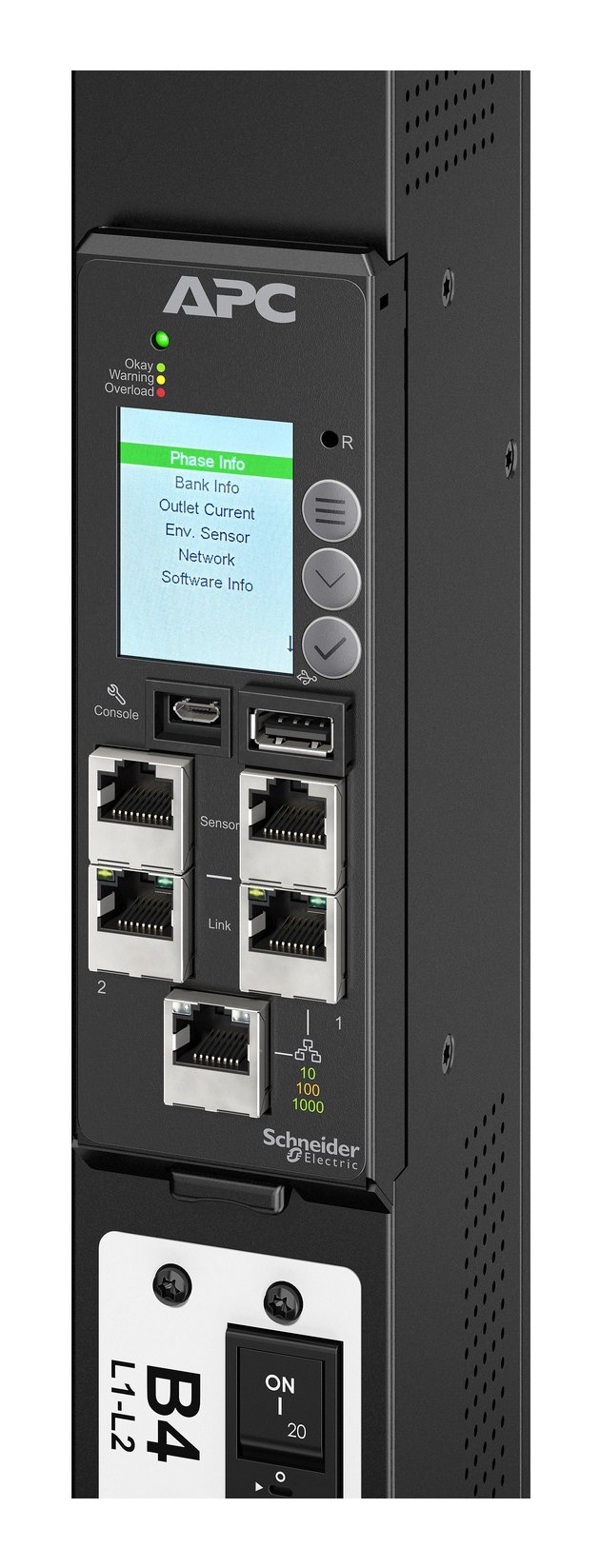

APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. PDU level power metering provides power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 42 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is CS8365C and features 21 count C13/C15/C19/C21 combo outlets and 21 count C13/C15 outlets.
Product Specifications
Manufacturer
APC by Schneider Electric
Manufacturer Part Number
APDU11451ME
GTIN / Barcode
0731304752813
Brand Name
APC by Schneider Electric
Product Name
APC APDU11451ME power distribution unit (PDU) 42 AC outlet(s) 0U Black
Mfr. Part Number
APDU11451ME
GTIN / Barcode
0731304752813
Design
PDU types
Metered
Rack capacity
0U
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity
42 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Features
Cable length
3 m
Power
Nominal input voltage
200 - 240 V
AC input frequency
50/60 Hz
Maximum current
50 A
Nominal output voltage
208 V
Output voltage
208 V
Load capacity
14400 VA
Maximum power
14400 W
Operational conditions
Operating temperature (T-T)
-5 - 60 °C
Operating temperature (charge) (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Non-operating altitude
0 - 15240 m
Operating temperature (T-T)
-5 - 60 °F
Weight & dimensions
Width
56 mm
Depth
75 mm
Height
1780 mm
Weight
10.6 kg
Packaging data
Package weight
13.6 kg
Package width
132 mm
Package depth
262 mm
Package height
1980 mm
Brand
APC by Schneider Electric
Availability
In Stock
Price Currency
USD
Category
Computers & IT Hardware
