- Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. - The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. - Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability) - Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. - An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network - Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Product Specifications
Manufacturer
APC by Schneider Electric
Manufacturer Part Number
AP8867
GTIN / Barcode
0731304289913
Brand Name
APC by Schneider Electric
Product Name

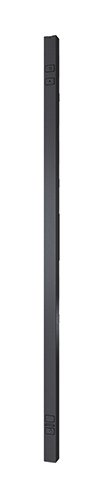

APC AP8867 power distribution unit (PDU) 30 AC outlet(s) 0U Black
Mfr. Part Number
AP8867
GTIN / Barcode
0731304289913
Design
PDU types
Metered
Rack capacity
0U
Mounting
Horizontal/Vertical
Product colour
Black
Display
LCD
Ports & interfaces
AC outlets quantity
30 AC outlet(s)
AC outlet types
C13 coupler
Input connection type

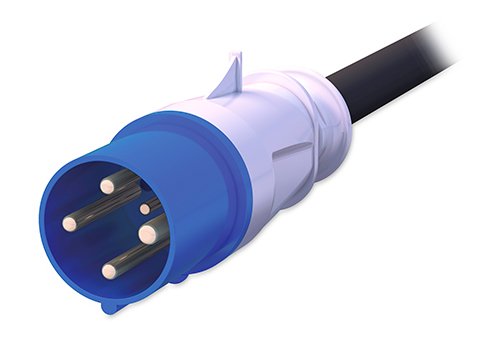

IEC 309 60A 3P+PE
Features
Cable length
1.83 m
Power
Nominal input voltage
208 V
AC input frequency
50 - 60 Hz
Maximum current
60 A
Nominal output voltage
208 V
Output voltage
208 V
Load capacity
17300 VA
Maximum input current per phase
48 A
Maximum total current draw per phase
48 A
Power protection features
Overload
Certificates
Compliance certificates
RoHS
Certification
cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC-15 A, UL, VCCI A
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
56 mm
Depth
51 mm
Height
1829 mm
Weight
10.2 kg
Packaging data
Package weight
14.1 kg
Package width
221 mm
Package depth
112 mm
Package height
2149 mm
Logistics data
Total carbon footprint (kg of CO2e)
59943.98
Brand
APC by Schneider Electric
Availability
In Stock
Price Currency
USD
Category
Computers & IT Hardware
