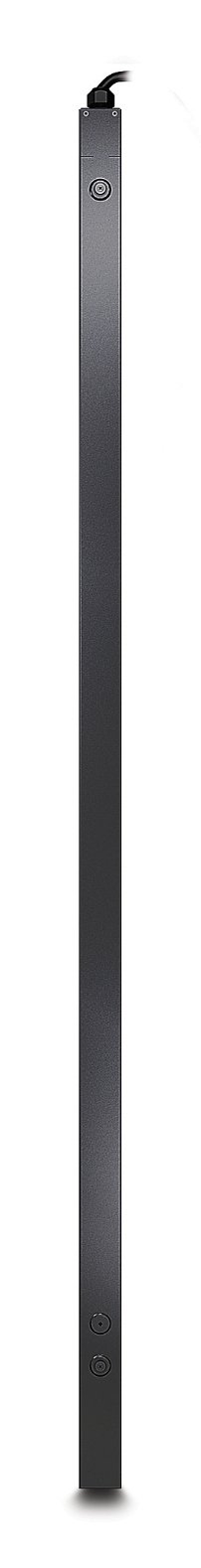

The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8865 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a NEMA L21-30P input plug with 1 83m (6ft) cord, (2) NEMA 5-20R, (36) IEC 60320 C13 and (6) IEC 60320 C19 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty
Product Specifications
Manufacturer
APC by Schneider Electric
Manufacturer Part Number
AP8865
GTIN / Barcode
7313042770644
Brand Name
APC by Schneider Electric
Product Name
APC AP8865 power distribution unit (PDU) 44 AC outlet(s) 0U Black
Mfr. Part Number
AP8865
GTIN / Barcode
7313042770644
Design
PDU types
Metered, Monitored
Rack capacity
0U
Mounting
Vertical
Product colour
Black
Display
LCD
Ports & interfaces
AC outlets quantity
44 AC outlet(s)
Power plug

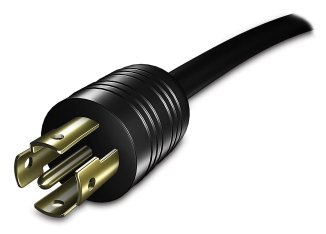

NEMA L21-30P
AC outlet types
NEMA 5-20R, C13 coupler, C19 coupler
Output connections
36x IEC 320 C13
6x IEC 320 C19
2x NEMA 5-20R
Features
Cable length
1.82 m
Security algorithms
SNMP
Management features
Monitoring
Power, Voltage, Energy
Power
Nominal input voltage
208 V
AC input frequency
50 - 60 Hz
Maximum current
30 A
Nominal output voltage
208 V
Load capacity
8600 VA
Maximum input current per phase
30 A
Maximum total current draw per phase
30 A
Certificates
Certification
CSA C22.2 No. 60950,UL 60950-1
Operational conditions
Operating temperature (T-T)
5 - 60 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Non-operating altitude
0 - 15240 m
Weight & dimensions
Width
56 mm
Depth
46 mm
Height
1791 mm
Weight
7.56 kg
Packaging content
Manual
Yes
Packaging data
Package weight
9.2 kg
Package width
107 mm
Package depth
162 mm
Package height
200 mm
Logistics data
Total carbon footprint (kg of CO2e)
6416
Brand
APC by Schneider Electric
Availability
In Stock
Price Currency
USD
Category
Computers & IT Hardware
