Zyxel
Zyxel XS1930-10 network switch Managed L3 10G Ethernet (100/1000/10000) Black
Mfr. Part# XS1930-10
$845.24
$804.99
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
| Manufacturer | ZyXEL Communications |
|---|---|
| Manufacturer Part Number | GS2220-10HP |
| GTIN / Barcode | 4718937607402 |
| Brand Name | Zyxel |

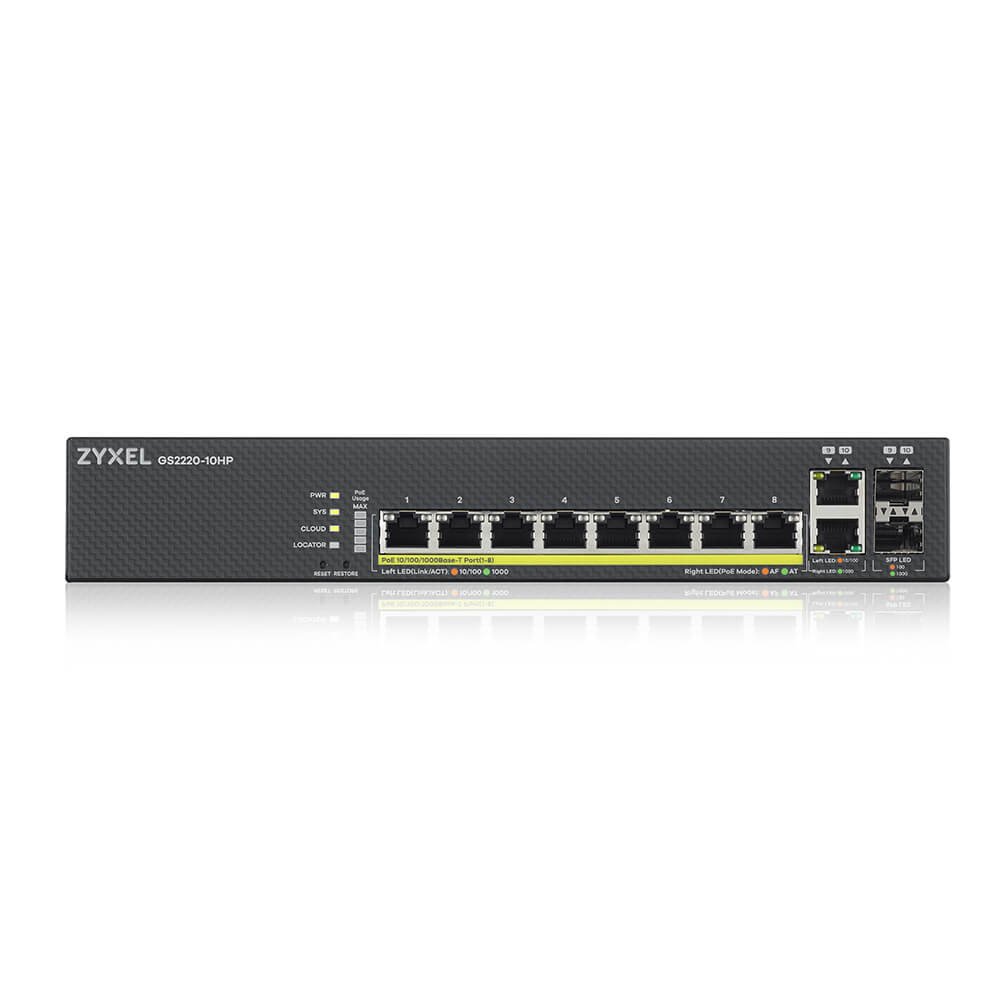

| Product Name | Zyxel GS2220-10HP-EU0101F network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black |
| Mfr. Part Number | GS2220-10HP |
|---|---|
| GTIN / Barcode | 4718937607402 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 15 Mpps |
| MAC address table | 16000 entries |
| Packet buffer memory | 1.5 MB |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS |
| MAC address filtering | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Performance | |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Noise level | 41 dB |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 587477 h |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 210.8 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 180 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 718.828 BTU/h |
| Weight & dimensions | |
| Width | 267 mm |
| Depth | 162 mm |
| Height | 44 mm |
| Weight | 1.8 kg |
| Packaging content | |
| Cables included | AC |
| Packaging data | |
| Package width | 375 mm |
| Package depth | 235 mm |
| Package height | 61 mm |
| Package weight | 2.7 kg |
| Certificates | |
| Certification | LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Brand | Zyxel |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
