Vaddio RoboSHOT 12E HDBT OneLINK HDMI System for Cisco SX Codecs 999-95750-400

Combine the RoboSHOT 12E HDBT camera with the OneLINK HDMI receiver to extend power, video and control over a single cable for simple, tidy installation. This bundle includes RoboSHOT Elite Series camera, cabling required to connect to SX80, and OneLINK HDMI. Recommended for large conference rooms, training rooms, and classrooms that are connecting to a Cisco SX20 or SX80 codec. Cisco Certified Solution.

Key Features:
12x Optical Zoom
1/2.5-type Exmor R CMOS sensor
70.2° horizontal field of view
Simultaneous HDMI and IP H.264 streaming
Remote IP Management
Simple, clutter-free camera extension with HDBaseT technology
Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
Simultaneous HDMI and IP Streaming outputs


TrainingLearn how to connect Vaddio cameras with Cisco Codecs straight from the Vaddio applications engineering team!

Vaddio Deployment ToolEasily deploy and manage hundreds of conference rooms with the free desktop application.

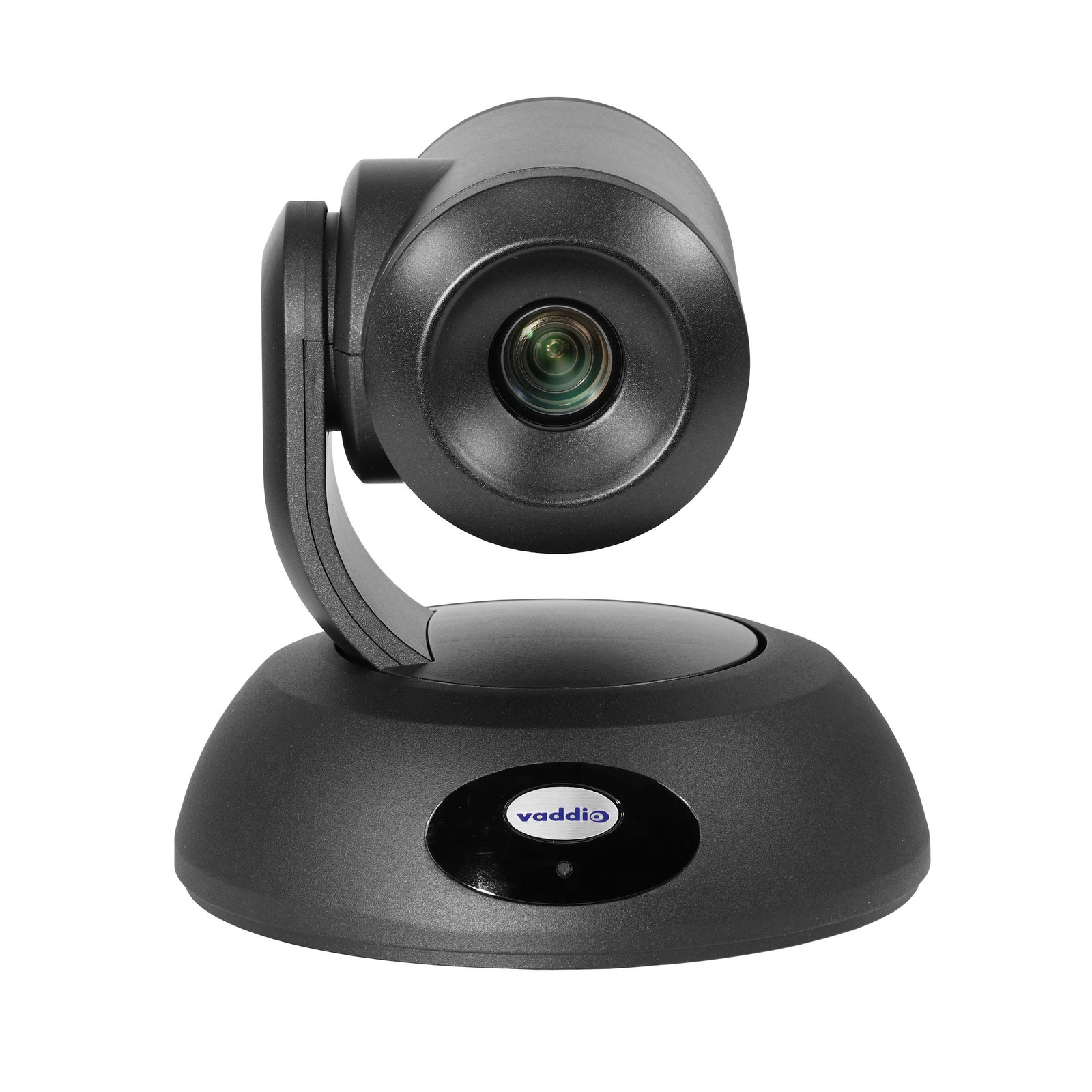

Introducing the RoboSHOT Elite Series – Vaddio’s next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.

RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.

A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera’s streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.

The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

The RoboSHOT 12E cameras are recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.

Video outputs include simultaneous HDMI and IP (H.264) streaming.

The system’s OneLINK HDMI Receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable.

This Package Includes:
RoboSHOT 12E HDBT camera (black or white)
Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
Vaddio IR Remote Commander
OneLINK HDMI Interface
48V power supply with AC cord set(s)
3 ft. (0.9m) cat-5 cable, black
3 ft. (0.3m) directional cat-5 cable for Cisco SX20
3 ft. (0.9m) HDMI cable
EZCamera RS-232 Control Adapter
EZCamera RS-232 Control Adapter 998-1002-232 for Cisco codec serial 9-pin ports
Application Note: Using RoboSHOT Series Cameras with Cisco Codecs


**If connecting to a Cisco SX20 codec, a user-supplied Cisco CAB-PHD4XS2-SPLIT cable is required

100 lux recommended
