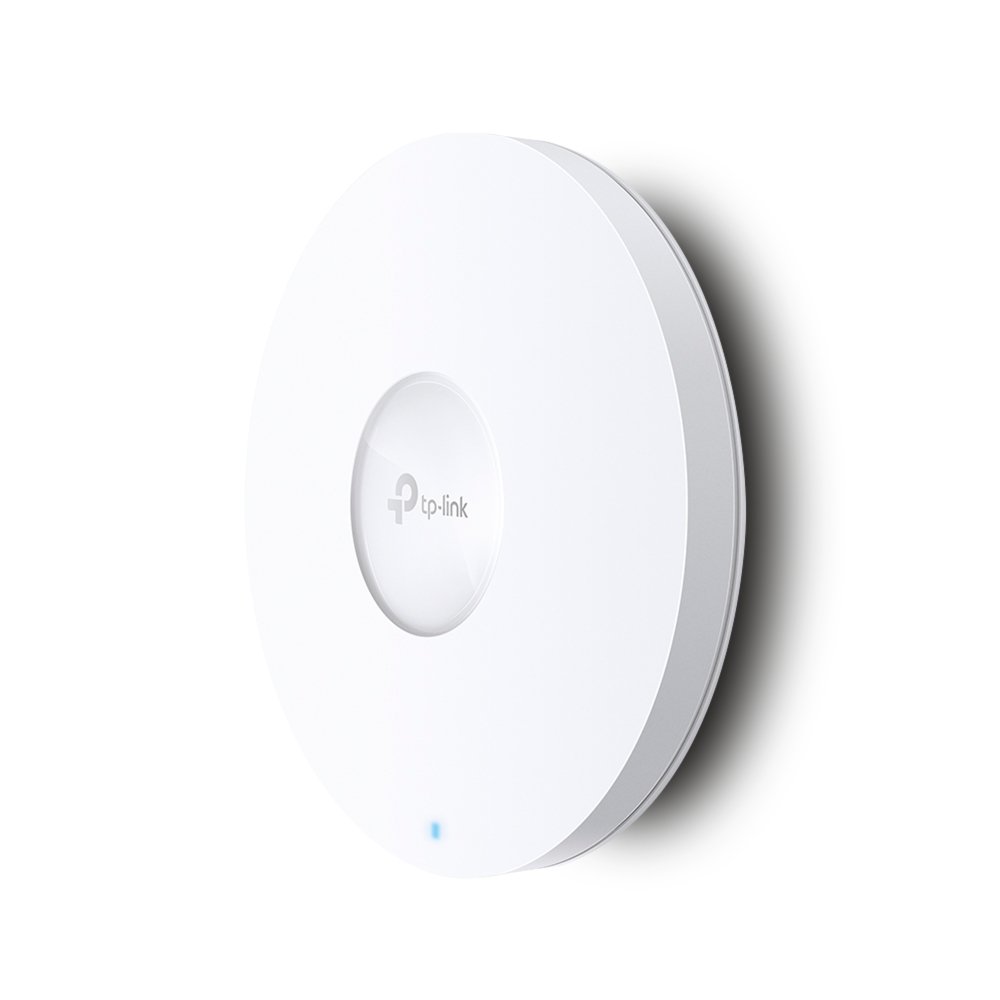

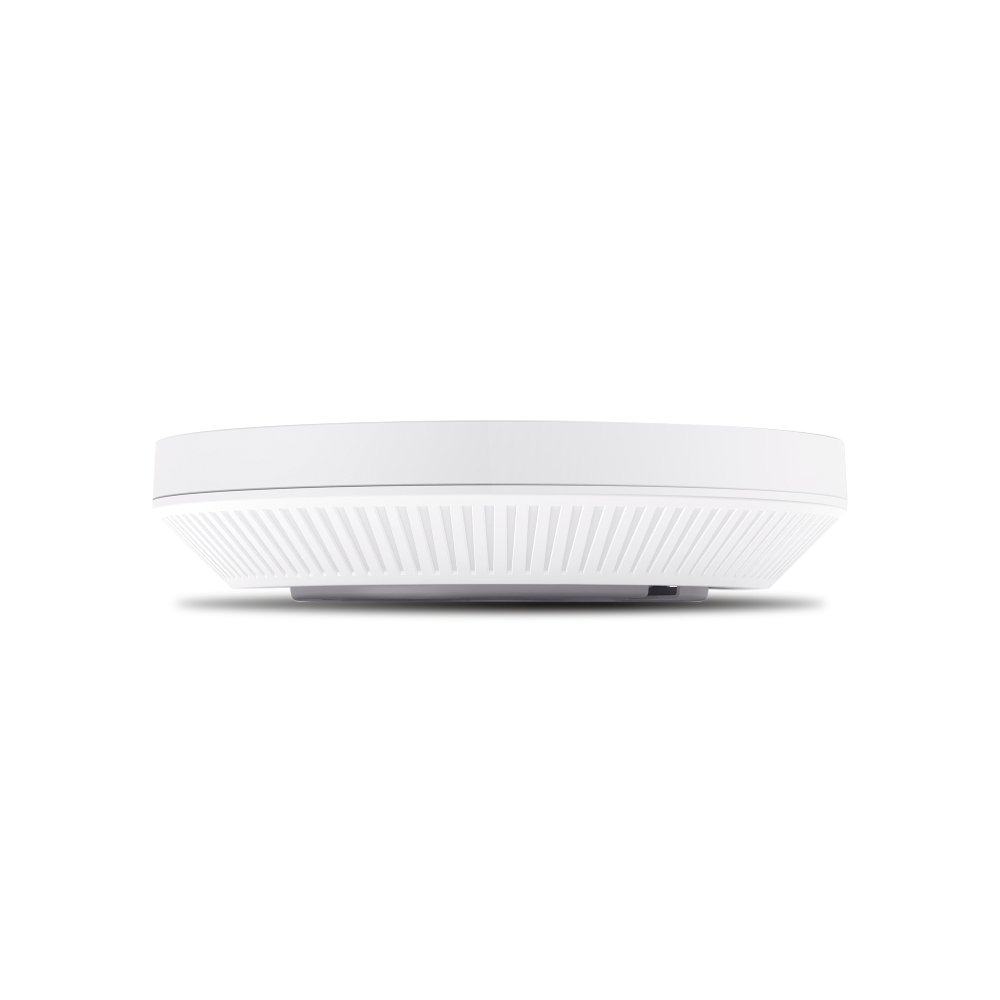

TP-Link Omada Pro AX1800 Ceiling Mount WiFi 6 Access Point AP9635

What This Product Does

AP9635, the Omada Pro AX1800 Ceiling Mount WiFi 6 Access Point, provides overall 1775 Mbps speeds for various high-density environments with WiFi 6 technologies, such as 1024 QAM, Long OFDM Symbol, and more. A built-in Gigabit Ethernet port allows an ultra-fast business network. PoE+ supported also provides flexible installations.

Integrated into the Omada Software Defined Networking (SDN) solution, AP9635 runs in an efficient management way. Centralized and remote management liberate managers and reduce maintenance costs.

High-Density Connectivity with 4× Increased Capacity

OFDMA and MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously‡. Leverage multi-user capabilities and upgrade your business like never before. You can enjoy a smooth network even when you are in high-density environments, such as hospitals, restaurants, shopping malls, meeting rooms, railway stations, and more.

Advanced Wi-Fi 6 Speed with 2 Spatial Streams

The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band)†. With 2 spatial streams, multi-user throughput is incredibly increased to drive more applications.

Boosted Network Security

Customizable WIDS and adaptive WIPS assist in safeguarding critical data and network resources. Intelligent Anomaly Detection and Analysis guarantees 24/7 automatic network anomaly analysis to offer timely optimization advice. AP9635 also provides secure WiFi access along with multiple authentication options (SMS/Voucher/RADIUS) and abundant wireless security technologies, such as WPA3 for worry-free open public networks.

Auto Channel Selection and Power Adjustment provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network. Band Steering automatically moves dual-band devices onto the wider 5GHz band for faster connections. Load Balance ensures large numbers of users have smooth network experiences in high-density business networks. Airtime Fairness increases average network throughput in heavily congested environments.

Cloud Centralized Management

The Omada Software Defined Networking (SDN) platform provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface. Seamless wireless connections are provided, making them ideal for use in hotels, education, retail, offices, and more. Zero-Touch Provisioning allows admins to remotely deploy and configure multi-site networks, so there’s no need to send out an engineer for on-site configuration.

Easy Deployment

Intelligent software and quality hardware designs together lead to simple deployment. With Automated Radio Frequency Deployment, AP9635 efficiently optimizes RF deployment by scanning the surrounding area 24/7, improving the performance and quality of wireless networks. With Omada Mesh, AP9635 saves you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas. And intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted. What’s more, a flexible power supply, including DC, 802.3at PoE+, and passive PoE, ensures simple installation. With the compact case design, AP9635 can be installed in 2 steps: simply push and rotate.
