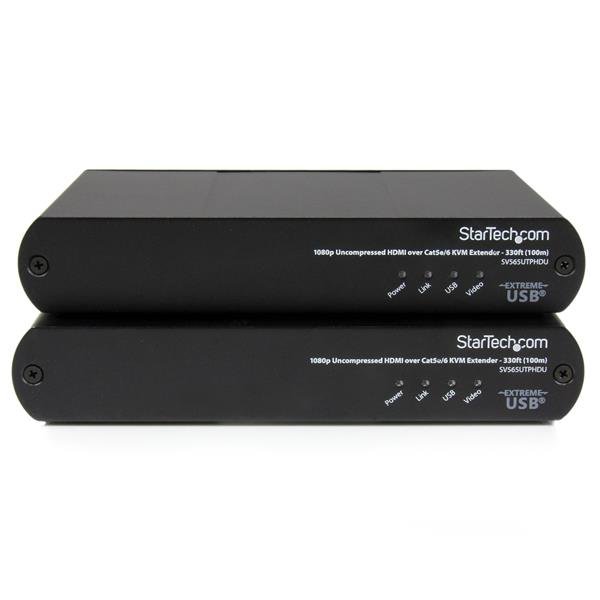

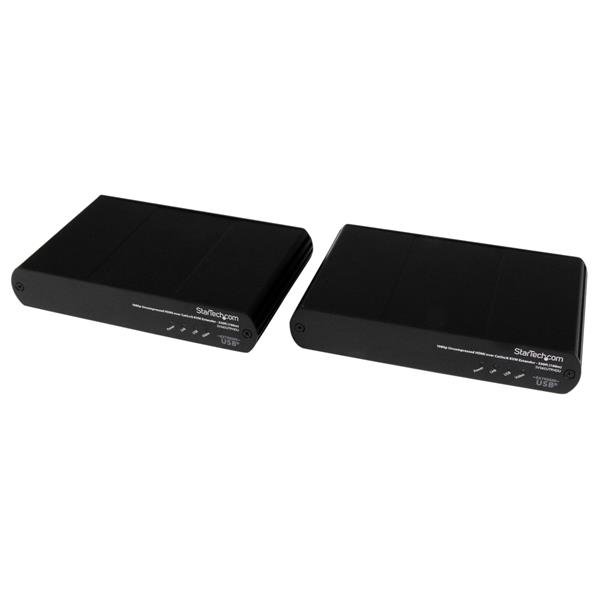

The SV565UTPHDU USB HDMI® KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices.
A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance. Additional features such as 3D support, HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote display.

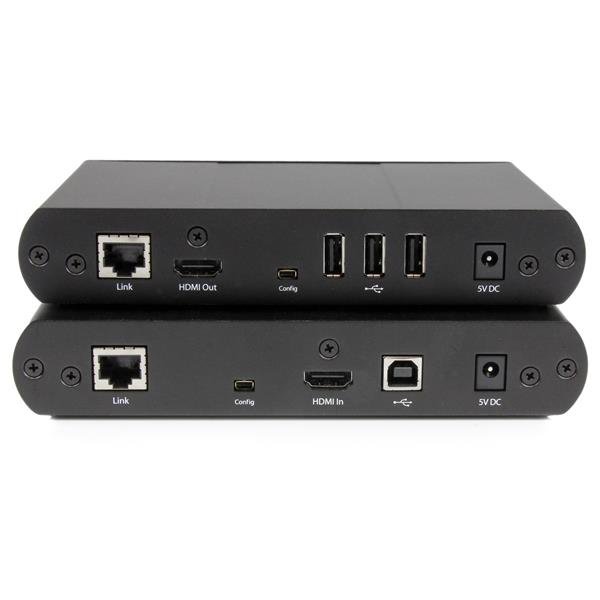

This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage - Power a large HDMI display from a distance with uncompressed 1080p video - Operate a single system or KVM switch remotely through KVM console extension - Save time and money by extending over an existing Cat 5e / Cat 6 infrastructure cabling
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
SV565UTPHDU
GTIN / Barcode
0065030853057
Brand Name
StarTech.com
Product Name
StarTech.com USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft (100m)
Mfr. Part Number
SV565UTPHDU
GTIN / Barcode
0065030853057
Features
Type
AV transmitter & receiver
Connectivity technology
Wired
Maximum transfer distance
100 m
Rack mounting
No
Maximum digital resolution
1920 x 1200 pixels
Product colour
Black
Material
Aluminium
Plug and Play
Yes
Certification
CE, FCC, RoHS, UL
Transmitter
Transmitter video port type
HDMI
Transmitter local keyboard/mouse port type
USB
Receiver
Receiver local video port type
HDMI
Power
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
AC adapter output voltage
5 V
AC adapter output current
3 A
Power consumption (transmitter) (max)
15 W
Power consumption (receiver) (max)
15 W
Packaging data
Package width
214 mm
Package depth
375 mm
Package height
103 mm
Package weight
2.46 kg
Packaging content
AC adapter included
Yes
Cables included
AC, HDMI, USB
Quick installation guide
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
20 - 80%
Technical details
Dimensions (WxDxH)
112 x 175 x 30 mm
Weight
847 g
Logistics data
Harmonized System (HS) code
84733080
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Cables & Connectivity
