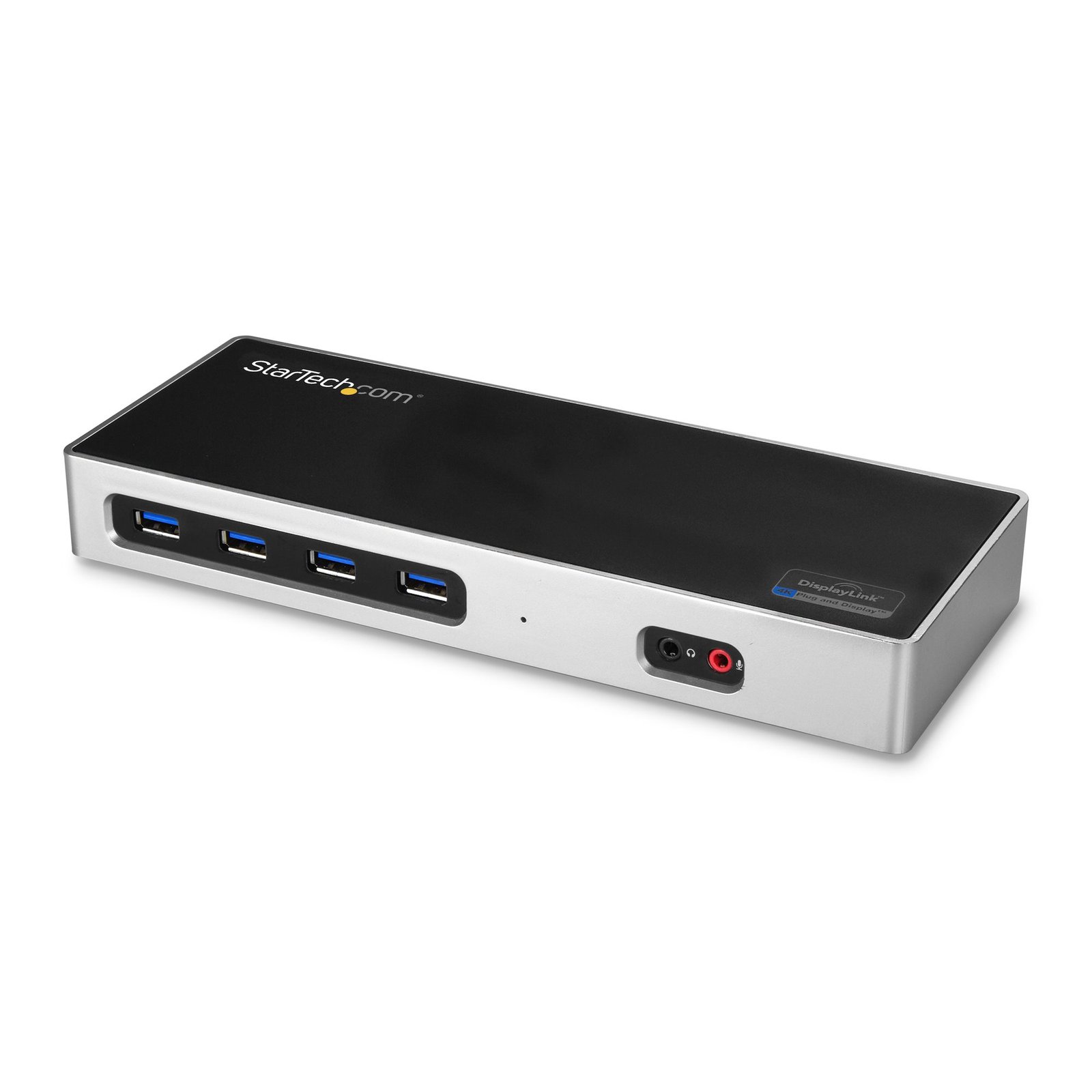

StarTech.com USB-C & USB-A Dock - Dual Monitor 4K 60Hz DisplayPort + HDMI - Hybrid USB 3.0 Docking
Product details
This dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.
Enhance Productivity with Dual-4K 60Hz Video
Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.
With the dual-4K dock, connect:
• 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)
• 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
• 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
Connects to USB-C and USB-A Laptops
The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops.
All the Connections You Need
This USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable.
DK30A2DH is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
- Business & Quantity Discounts Available
- Flexible Terms for Qualified Organizations
- Supporting Commercial, Government & Education Buyers
- Trusted B2B Ordering & Secure Payments
Specifications
| Manufacturer | Startech.com |
|---|---|
| Manufacturer Part Number | DK30A2DH |
| Barcode | 0065030868235 |
| Brand Name | StarTech.com |
| Product Name | StarTech.com USB-C & USB-A Dock - Dual Monitor 4K 60Hz Dock DisplayPort + HDMI - Hybrid USB 3.0 Docking Station for USB-C or USB-A Laptops - 6x USB Type-A, GbE - USB 3.1 Gen 1 - Mac/Windows |
| Mfr. Part Number | DK30A2DH |
|---|---|
| Barcode | 0065030868235 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Combo headphone/mic port | No |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| 10G support | No |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |
| Number of displays supported | 2 |
| Product colour | Black, Silver |
| On/off switch | Yes |
| LED indicators | Power |
| UASP support | Yes |
| Housing material | Aluminium, Plastic |
| Brand compatibility | Any brand |
| Certification | CE, FCC, REACH |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 20 V |
| Output current | 2 A |
| Power consumption (typical) | 40 W |
| Power plug type | Type N |
| Compatible power plug types | AU, EU, JP, UK, US |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |

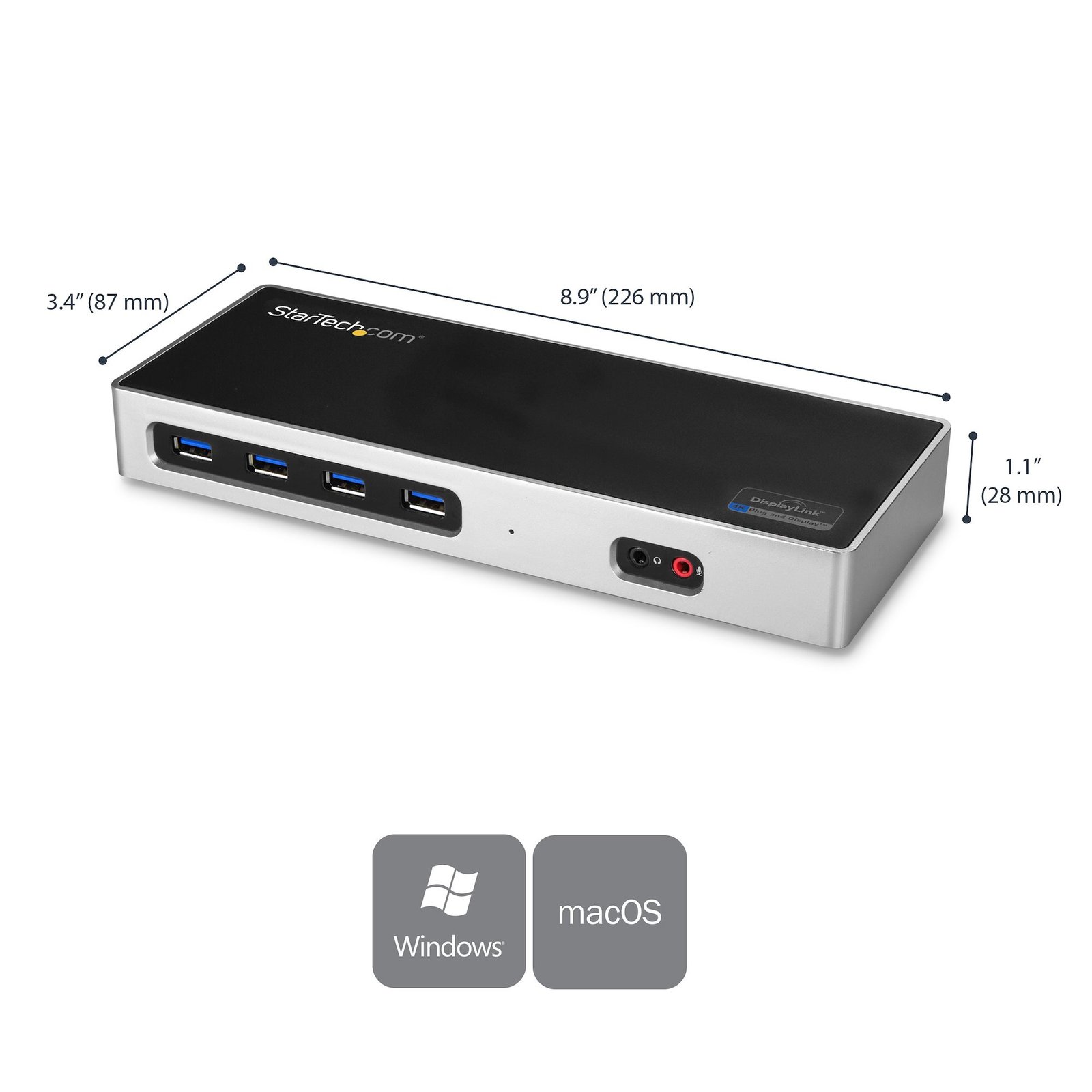

| Weight & dimensions | |
| Width | 87 mm |
| Depth | 226 mm |
| Height | 28 mm |
| Weight | 301 g |
| Packaging data | |
| Package width | 130 mm |
| Package depth | 318 mm |
| Package height | 52 mm |
| Package weight | 900 g |
| Packaging content | |
| Cables included | USB Type-A to USB Type-C, USB Type-C |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 325 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 305 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Cable length | 0.152 m |
| Chipset | DisplayLink - DL-6950, VIA/VLI - VL813 |
| Number of microphone inputs | 1 |
| USB data transfer rates | 12,480,5000 Mbit/s |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Laptops & Notebooks |
