Control multiple computers with a single set of peripherals while isolating data paths between systems and ensuring no data is ever stored
Operate multiple secure systems from a single workstation with the NIAP-Certified KVM switch, delivering uncompromising security, enterprise-grade performance, and seamless control over eight computers with a 4K 60Hz display.
NIAP Certified Multi-System Control

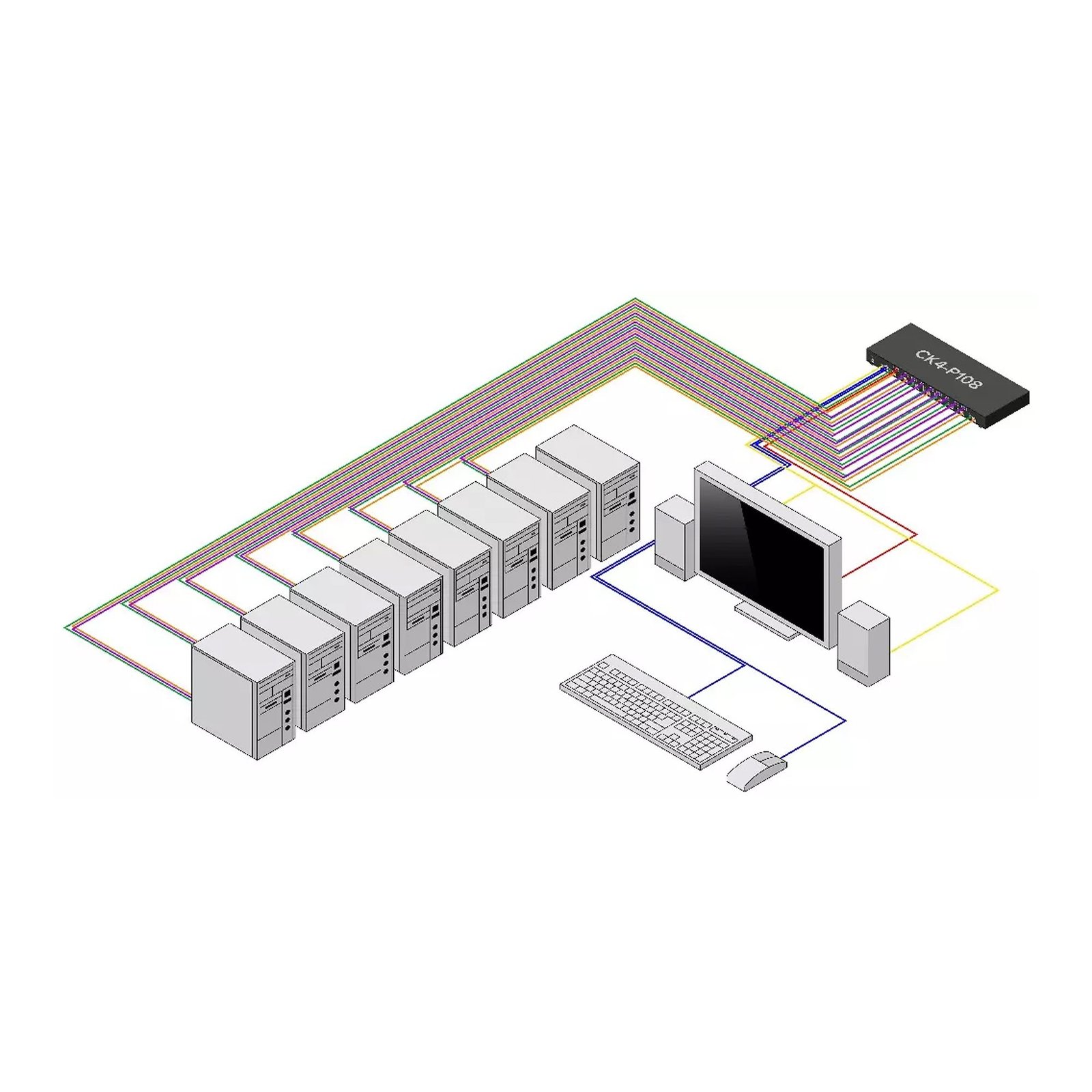

Manage up to eight DisplayPort-enabled desktops, workstations, or servers from one mouse, keyboard, and a 4K 60Hz monitor. Status LEDs on the console ports and port selection indicators provide instant visual feedback, while NIAP certification ensures complete system isolation to prevent any data transfer or leakage between connected systems. Integrated anti-tamper switches provide protection from the moment the unit leaves the factory, so any intrusion attempt, whether in storage, transit, or operation, will permanently disable the KVM and trigger clear visual and audible alerts. This makes it ideal for safeguarding operations across security domains or ensuring compliance with strict regulatory requirements.
This secure KVM complies with the following protection profiles and modules:
Protection Profile for Peripheral Sharing Device (PSD), Version 4.0
PP-Module for Analog Audio Output Devices, Version 1.0
PP-Module for User Authentication Devices, Version 1.0
PP-Module for Keyboard/Mouse Devices, Version 1.0
PP-Module for Video/Display Devices, Version 1.0
Anti-Tamper Switches
The advanced Tamper Protection System uses anti-tamper switches to detect physical intrusion attempts, immediately disabling all functionality and triggering visual and audible alerts, while a tamper-evident seal provides clear indication of unauthorized physical access.
Enterprise-Grade Security and Reliability
Engineered for IT professionals, our secure KVM switches are built in the USA, NIAP certified, rigorously tested in our Innovation Lab, and trusted by government, military, and enterprise security teams worldwide. Built for environments handling sensitive or classified data, they combine high-assurance security with the dependable performance required for mission-critical operations.
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
CK4-P108
GTIN / Barcode
0735816657857
Brand Name
StarTech.com
Product Name
StarTech.com Secure 8-Port KVM Switch, DisplayPort, 4K 60Hz, NIAP 4.0 Desktop KVM, Metal Housing, Made in the USA
Mfr. Part Number
CK4-P108
GTIN / Barcode
0735816657857
Ports & interfaces
Number of computers controlled
8
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
DisplayPorts quantity
8
USB 2.0 Type-B ports quantity
8
Console ports
3.5mm headphone, DisplayPort, USB A
Console USB ports quantity
2
Console DisplayPorts ports quantity
1
Audio connections
Yes
Headphone outputs
1
Number of microphone inputs
8
Performance
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Daisy chain
No
Maximum refresh rate
30 Hz
Audio channels
2.0
Number of displays supported
1
Design
Rack mounting
No
Product colour
Black
Housing material
Metal
Maximum cable length
6 m
LED indicators
Yes
Push button
Yes
Hot keys
No
Display
Built-in display
No
On Screen Display (OSD)
No
Power
Power source
DC
Sustainability
Compliance certificates
Trade Agreements Act (TAA), Federal Communications Commission (FCC), RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
170 mm
Depth
431 mm
Height
45 mm
Weight
2.9 kg
Packaging data
Package width
546 mm
Package depth
330 mm
Package height
127 mm
Other features
IP control
No
Logistics data
Master (outer) case width
610 mm
Master (outer) case length
457 mm
Master (outer) case height
457 mm
Products per master (outer) case
5 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Network Switches
