Home/Computers & IT Hardware/Servers/StarTech.com Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
StarTech.com
StarTech.com Rackmount KVM Console HD 1080p - Single Port VGA with 17" LCD Monitor for Server Rack
Availability: In StockMfr. Part#: RKCONS17HD
$1,505.53Save 5% · $71.69
$1,433.84USD
Prices shown in USD. Taxes, duties and freight are quoted separately.
Call 856-283-0457 for volume pricing.
Business & Quantity Discounts Available
Flexible Terms for Qualified Organizations
Supporting Commercial, Government & Education Buyers
Control your server or KVM switch from a centralized HD KVM console
Providing centralized control of your single PC or dozens of servers, this HD rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet. Connected to your servers through a separate KVM switch (sold separately), the LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.
High-Definition LCD Monitor
The 1080p KVM console’s monitor is 17.3” and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.
Clutter-Free Monitoring

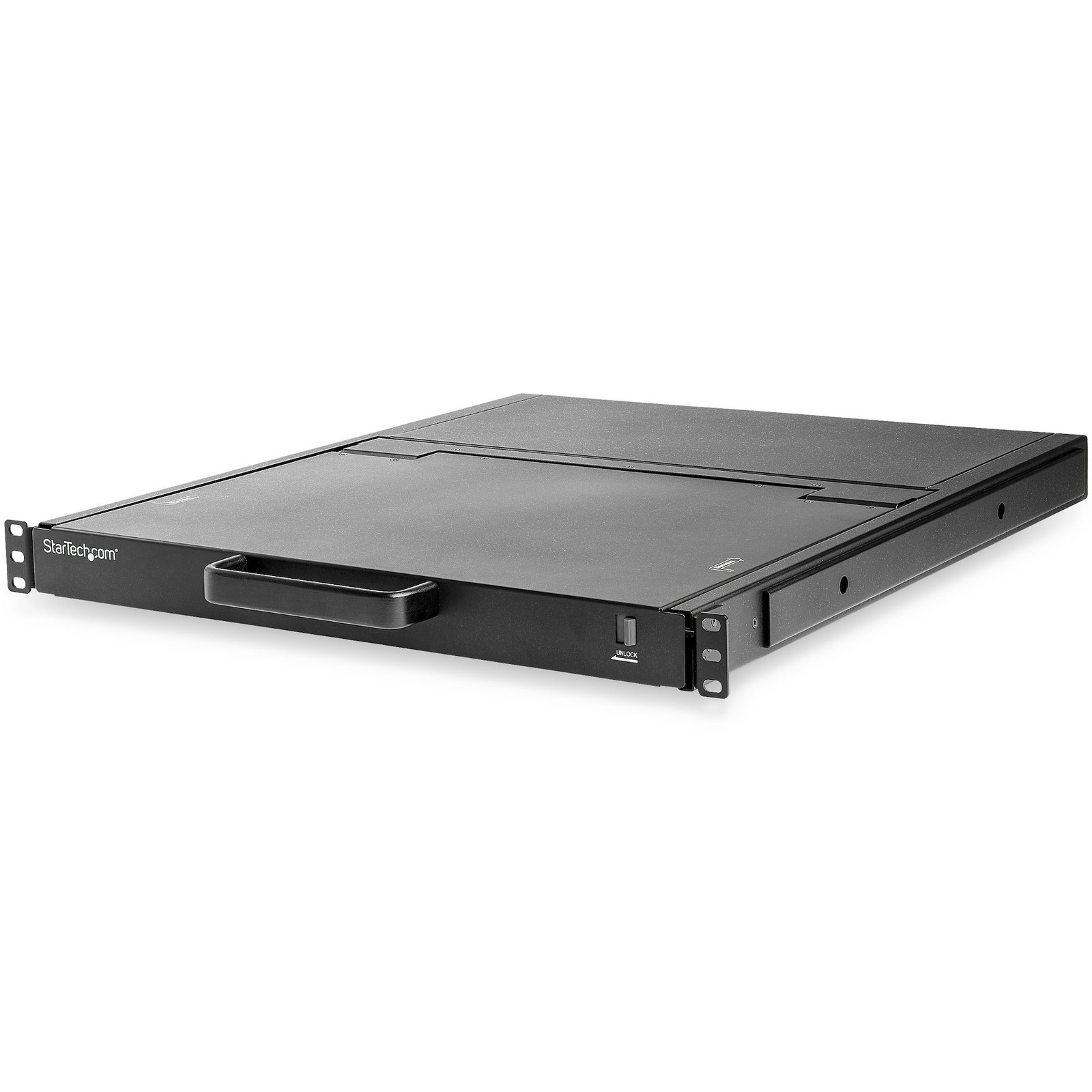

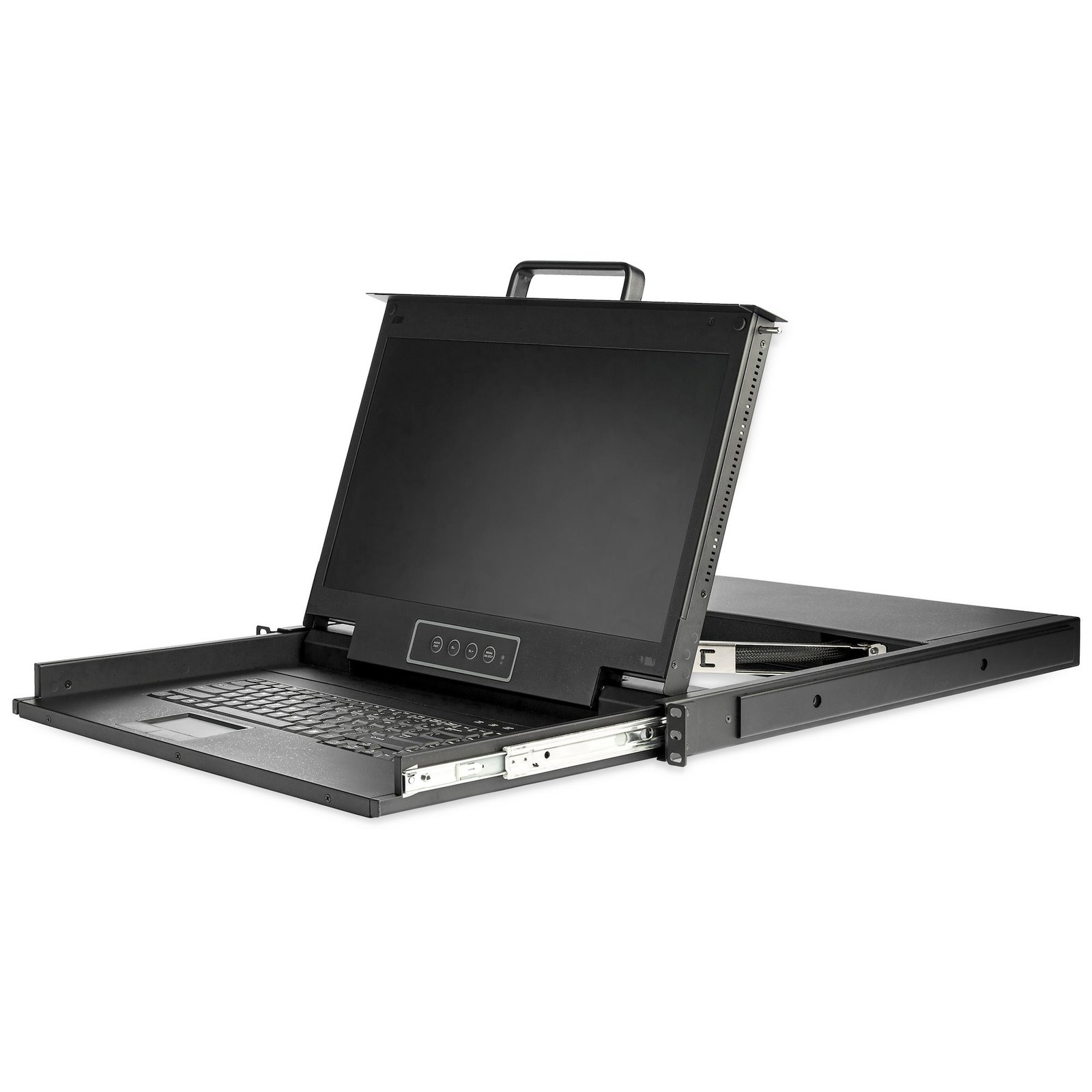

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Simple Setup
This single-port KVM console comes with everything you need to set up:
• 1 Audio Cable • 1 Set of KVM Cables (VGA) • 2 Rear Mounting Brackets • M5 Cage Nuts and Screws
Cost Effective Solution
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display.
StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This rackmount KVM console is backed by a 2-year warranty and free lifetime technical support.
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
RKCONS17HD
GTIN / Barcode
0065030872478
Brand Name
StarTech.com
Product Name
StarTech.com Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
Mfr. Part Number
RKCONS17HD
GTIN / Barcode
0065030872478
Display
Display diagonal
43.9 cm (17.3")
Display resolution
1920 x 1080 pixels
Display
TFT LCD
Display brightness
300 cd/m²
Contrast ratio (typical)
800:1
Viewing angle, horizontal
170°
Viewing angle, vertical
170°
Pixel pitch
0.1989 x 0.1989 mm
Aspect ratio
16:9
Display type
LCD
Display number of colours
262144 colours
Colour depth
6 bit
Technical details
Material
Steel
Mean time between failures (MTBF)
50000 h
Product colour
Black
Operating relative humidity (H-H)
10 - 80%
Rack mounting
Yes
Audio support
No
Daisy chain
No
IP control
No
LED indicators
Power, Status
Cable length
1.8 m
Compliance certificates
RoHS
Rack capacity
1U
Ports & interfaces
Video port type
VGA
Keyboard
Built-in touchpad
Yes
Certificates
Certification
CE, FCC, PSE, UL, REACH
Power
Power consumption (typical)
13 W
AC adapter input voltage
100 - 240 V
Input current
1.5 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Width
483 mm
Height
565 mm
Depth
43 mm
Weight
11.2 kg
Mounting depth (min)
51 cm
Mounting depth (max)
85 cm
Packaging data
Package weight
16 kg
Package width
780 mm
Package depth
616 mm
Package height
191 mm
Packaging content
Cables included
KVM
Screws included
Yes
Number of screws
8
Cage nuts included
Yes
Number of cage nuts
8
Included power plug types
ANZ, EU, JP, NA, UK
Quick installation guide
Yes
Logistics data
Master (outer) case width
780 mm
Master (outer) case length
616 mm
Master (outer) case height
191 mm
Products per master (outer) case
1 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Servers
