Home/Networking & Communications/StarTech.com Multi-Mode (MM) SC Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to SC MM Fiber Media Converter, 1310nm, 2km - TAA
StarTech.com

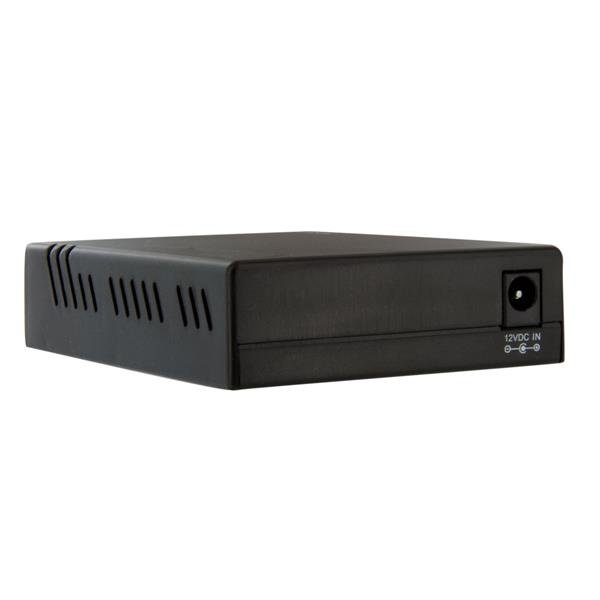

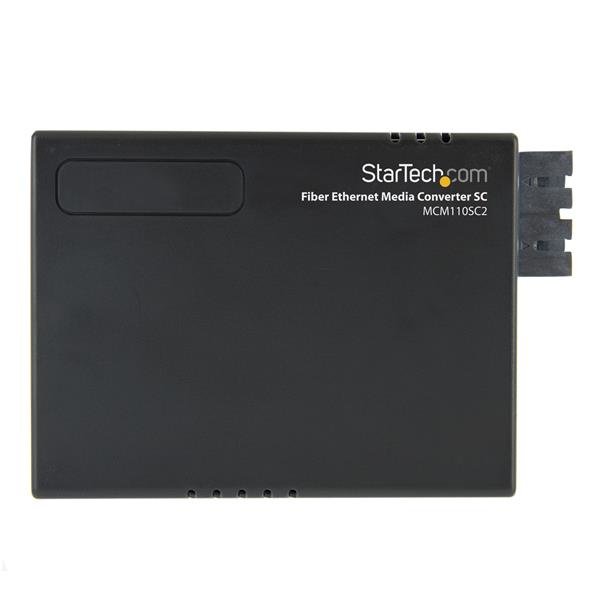

StarTech.com Multi-Mode (MM) SC Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet
Availability: In StockMfr. Part#: MCM110SC2
$109.12Save 5% · $5.20
$103.92USD
Prices shown in USD. Taxes, duties and freight are quoted separately.
Call 856-283-0457 for volume pricing.
Business & Quantity Discounts Available
Flexible Terms for Qualified Organizations
Supporting Commercial, Government & Education Buyers
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber
The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
MCM110SC2
GTIN / Barcode
0065030835626
Brand Name
StarTech.com
Product Name
StarTech.com Multi-Mode (MM) SC Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to SC MM Fiber Media Converter, 1310nm, 2km - TAA
Mfr. Part Number
MCM110SC2
GTIN / Barcode
0065030835626
Network
Maximum data transfer rate
100 Mbit/s
Networking standards
IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates
10,100 Mbit/s
Jumbo frames support
Yes
Jumbo frames
9000
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Duplex system
Full, Half
Performance
Maximum transfer distance
2000 m
Wavelength
1310 nm
Wavelength-division multiplexing (WDM)
No
Fiber mode structure
Multi-mode
Mean time between failures (MTBF)
65000 h
Features
Internal
No
LED indicators
Yes
Product colour
Black
Housing material
Plastic
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SC
DC-in jack
Yes
Power
Input voltage
115 V
Output voltage
12 V
Output current
0.2 A
Power over Ethernet (PoE)
No
Power plug type
Type M
Weight & dimensions
Width
75 mm
Depth
95 mm
Height
20 mm
Weight
90.5 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Packaging content
AC adapter included
Yes
Manual
Yes
Packaging data
Package width
63 mm
Package depth
148 mm
Package height
145 mm
Package weight
400 g
Certificates
Compliance certificates
RoHS
Certification
CE, FCC
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Networking & Communications
