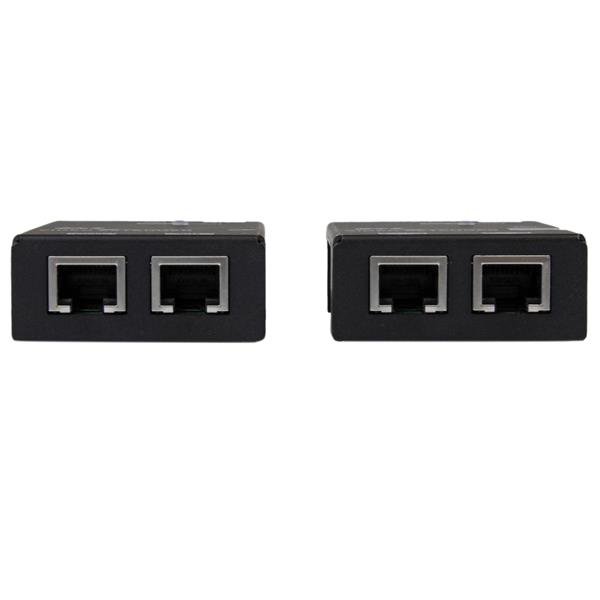

Extend HDMI® up to 165ft (50m) over Cat5e/6 cabling with Power over Cable to Receiver
The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.
With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.
For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.
The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
ST121SHD50
GTIN / Barcode
0065030851404
Brand Name
StarTech.com
Product Name
StarTech.com HDMI Over CAT5e/CAT6 Extender with Power Over Cable - 165 ft (50m) - TAA
Mfr. Part Number
ST121SHD50
GTIN / Barcode
0065030851404
Features
Type
AV transmitter & receiver
Maximum resolution
1920 x 1080 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
50 m
LED indicators
Power
Supported video modes
1080i, 1080p
Supported graphics resolutions
1920 x 1080 (HD 1080)
Material
Aluminium
Rack mounting
Yes
Daisy chain
No
Product colour
Black
Certification
CE, FCC, REACH, TAA
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN
Yes
RJ-45 input ports
2
RJ-45 output ports
2
HDMI in
1
Number of HDMI outputs
1
DC-in jack
Yes
Power
AC input voltage
100-240 V
Operating voltage
12 V
Input current
0.5 A
Output current
1.5 A
Power consumption (typical)
18 W
External power adapter
Yes
Power plug type
Type M
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Receiver dimensions (WxDxH)
51 x 80 x 21 mm
Receiver weight
157 g
Transmitter dimensions (WxDxH)
51 x 80 x 21 mm
Transmitter weight
157 g
Packaging data
Package width
235 mm
Package depth
159 mm
Package height
66 mm
Package weight
935 g
Packaging content
AC adapter included
Yes
Cables included
HDMI
Manual
Yes
Mounting brackets included
Yes
Technical details
Compliance certificates
RoHS
Logistics data
Master (outer) case width
416 mm
Master (outer) case length
326 mm
Master (outer) case height
269 mm
Products per master (outer) case
12 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Cables & Connectivity
