This 4K HDMI audio extractor lets you de-embed the audio from your HDMI video streams to create a distinct audio output that you can connect directly to a digital or analog audio device. Supporting HDMI 2.0 specifications, the de-embedder maintains 4K 60Hz resolutions to deliver a seamless video experience.
4K Video Performance
The HDMI sound splitter supports video resolutions up to 4K 60Hz (3840 x 2160) and high video bandwidth up to 18Gbps. It also supports High Dynamic Range (HDR) video pass-through, letting you enjoy lifelike images with incredible contrast, brightness and color, and greater luminosity compared to standard digital imaging.
Maximum Compatibility
Easily integrate HDMI 2.0 devices, such as your new 4K Blu-ray player, with your existing audio equipment or desktop speakers. The extractor isolates and extracts the audio signal from your HDMI cable and lets you output to digital optical audio or dual RCA audio devices . The integrated EDID management capabilities support 2-channel, 5.1-channel and pass-through audio modes.
The HDCP compliant HDMI audio de-embedder is compatible with dual-RCA composite adapters, giving you the flexibility to integrate the audio from your HDMI source into 3.5 mm audio applications using MU6MMRCA, MU3MMRCA or MUFMRCA (sold separately).

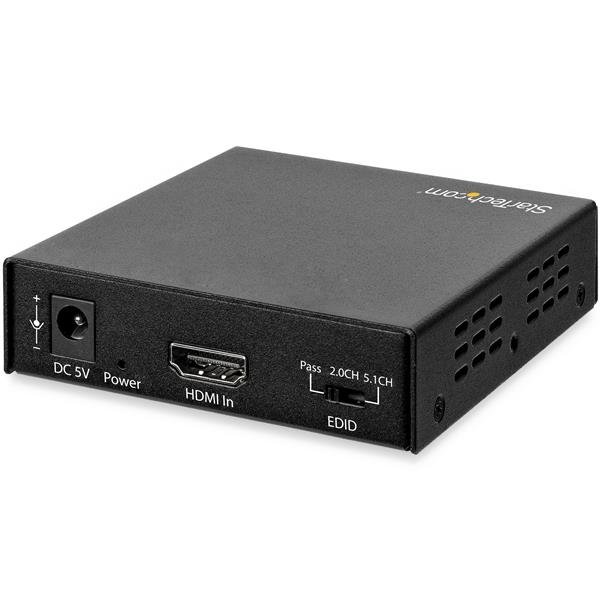

The compact extractor features a small footprint that blends discreetly into your hardware setup, for a uniform look.
HD202A is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
HD202A
GTIN / Barcode
0065030878609
Brand Name
StarTech.com
Product Name
StarTech.com HDMI Audio Extractor with 4K 60Hz Support
Mfr. Part Number
HD202A
GTIN / Barcode
0065030878609
Features
Product colour
Black
Video
Maximum video resolution
4096 x 2160 pixels
Video resolutions
1280 x 720,1920 x 1080,1920 x 1200,3840 x 2160,4096 x 2160
Maximum refresh rate
60 Hz
Audio
Audio output channels
5.1 channels
Ports & interfaces
Host interface
HDMI
Video in
HDMI
Video out
HDMI
Audio output
RCA + Toslink
Power
External power adapter
Yes
Input voltage
100 - 240 V
Operating voltage
5 V
Operating current
1 A
Input current
0.4 A
Power plug type
Type M
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
80 mm
Depth
90 mm
Height
22 mm
Weight
320 g
Packaging data
AC adapter included
Yes
Screws included
Yes
Number of screws
2
Included power plug types
ANZ, EU, NA, UK
Mounting bracket(s) included
Yes
Package width
157 mm
Package depth
195 mm
Package height
52 mm
Package weight
470 g
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case width
360 mm
Master (outer) case length
608 mm
Master (outer) case height
308 mm
Products per master (outer) case
30 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Warranties & Support
