Convert and Scale a Composite or S-Video Signal to Work with a VGA Display

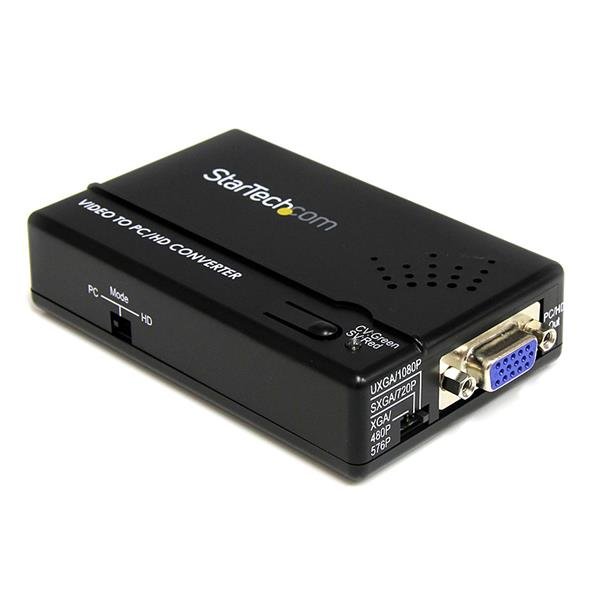

The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets. Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector. Plus, the Component/S-Video-VGA Converter includes a VGA to Component (RCA) breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Specifications
Manufacturer
STARTECH.COM
Manufacturer Part Number
STA-VID2VGATV2
GTIN / Barcode
0065030844345
Brand Name
StarTech.com
Product Name
StarTech.com Composite and S-Video to VGA Video Scan Converter - TAA
Mfr. Part Number
STA-VID2VGATV2
GTIN / Barcode
0065030844345
Features
Converter type
Active video converter
On Screen Display (OSD)
Yes
Plug and Play
Yes
Product colour
Black
Housing material
Plastic
Certification
CE, FCC, TAA, REACH
Video
Maximum video resolution
1600 x 1200 pixels
Video resolutions
1024 x 768,1280 x 1024,1600 x 1200
Analog signal format system
NTSC, PAL
Maximum refresh rate
60 Hz
Ports & interfaces
Host interface
Composite, S-Video
Output interface
VGA
Power
External power adapter
Yes
Operating voltage
5 V
Operating current
1 A
Power consumption (typical)
2.5 W
Technical details
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
0 - 60 °C
Operating relative humidity (H-H)
0 - 60%
Weight & dimensions
Width
64 mm
Depth
112 mm
Height
26 mm
Weight
86 g
Packaging data
Package width
117 mm
Package depth
210 mm
Package height
62 mm
Package weight
459 g
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case width
384 mm
Master (outer) case length
450 mm
Master (outer) case height
336 mm
Products per master (outer) case
30 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Cables & Connectivity
