Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
| Manufacturer | STARTECH.COM |
|---|---|
| Manufacturer Part Number | STA-ICUSB2328I |
| GTIN / Barcode | 0065030848978 |
| Brand Name | StarTech.com |

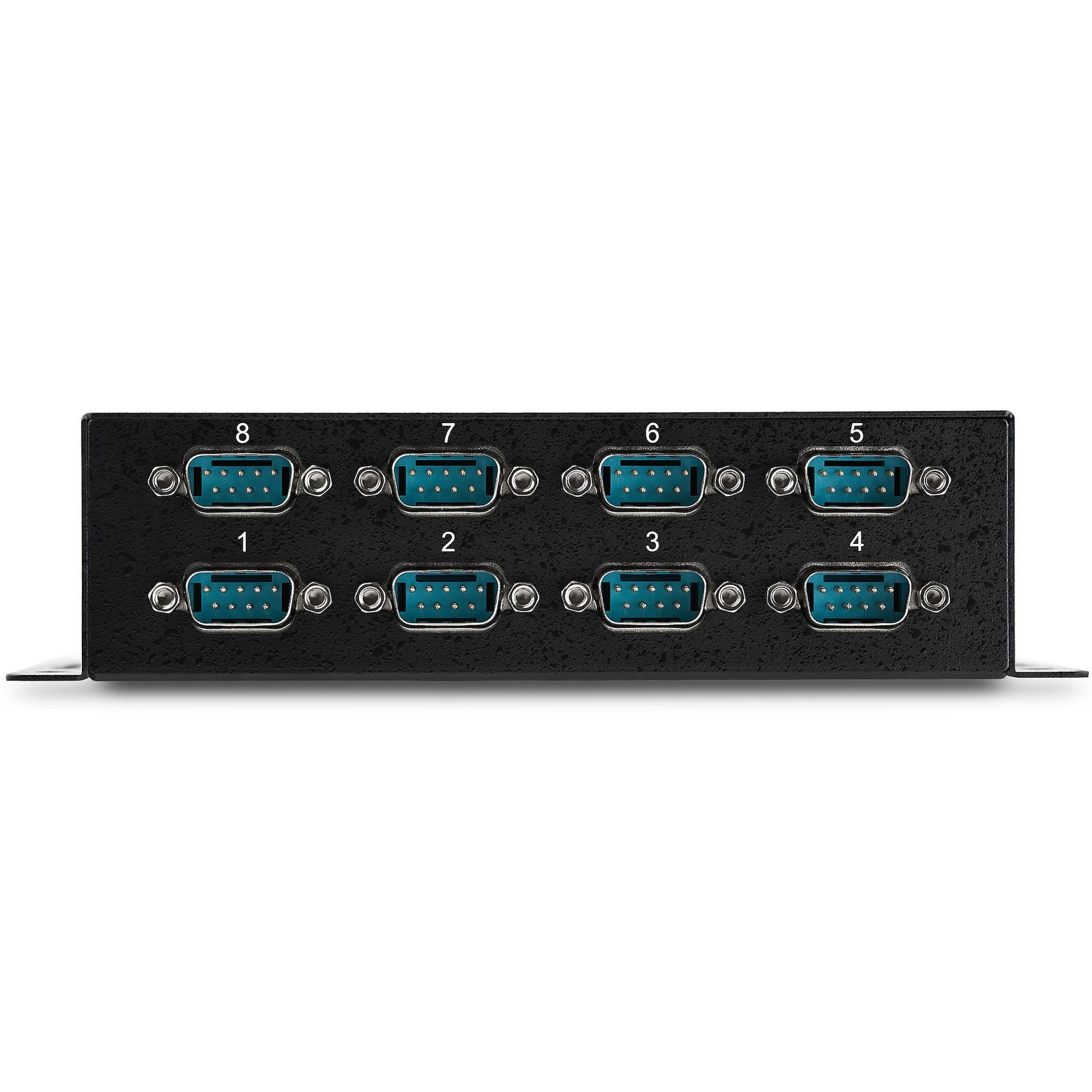

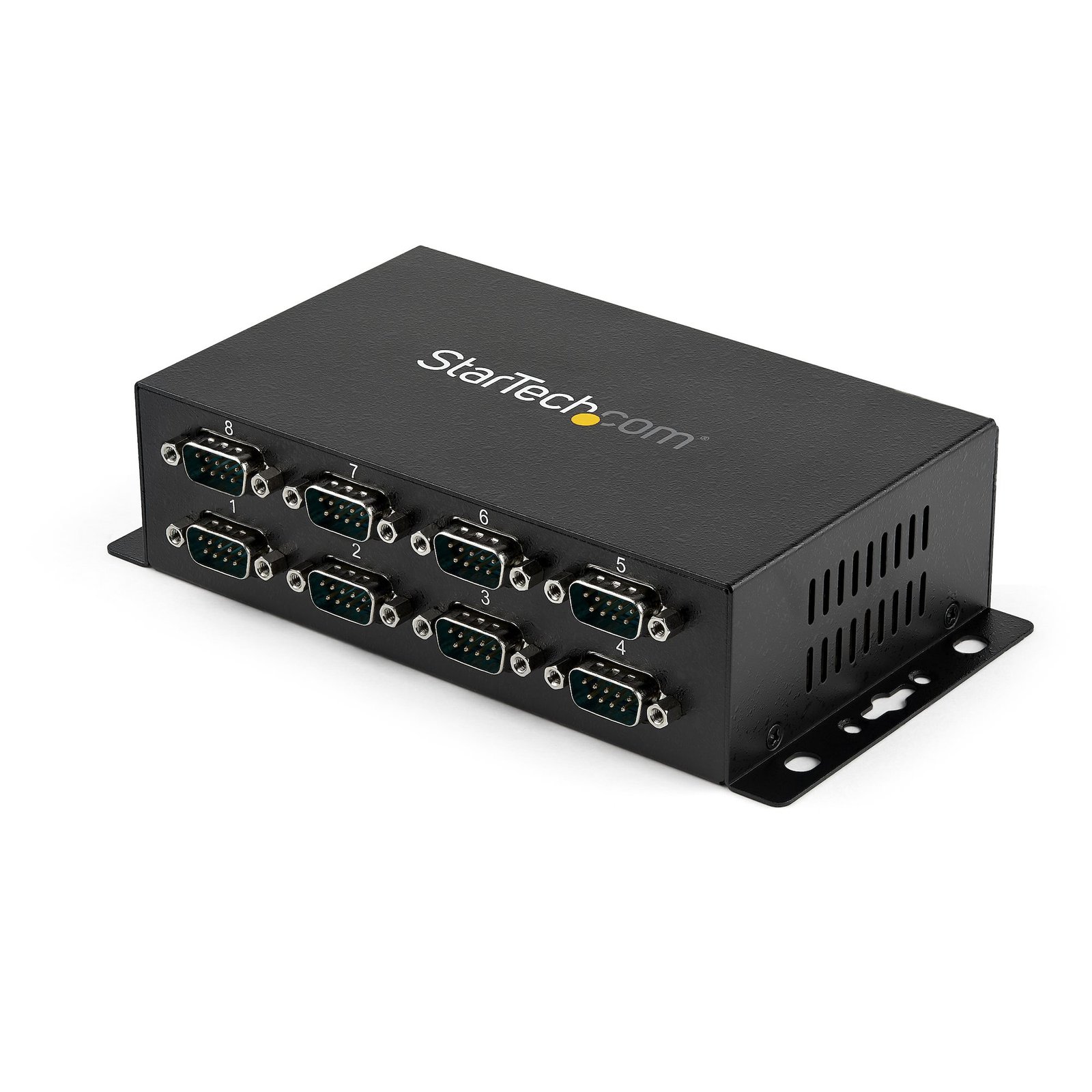

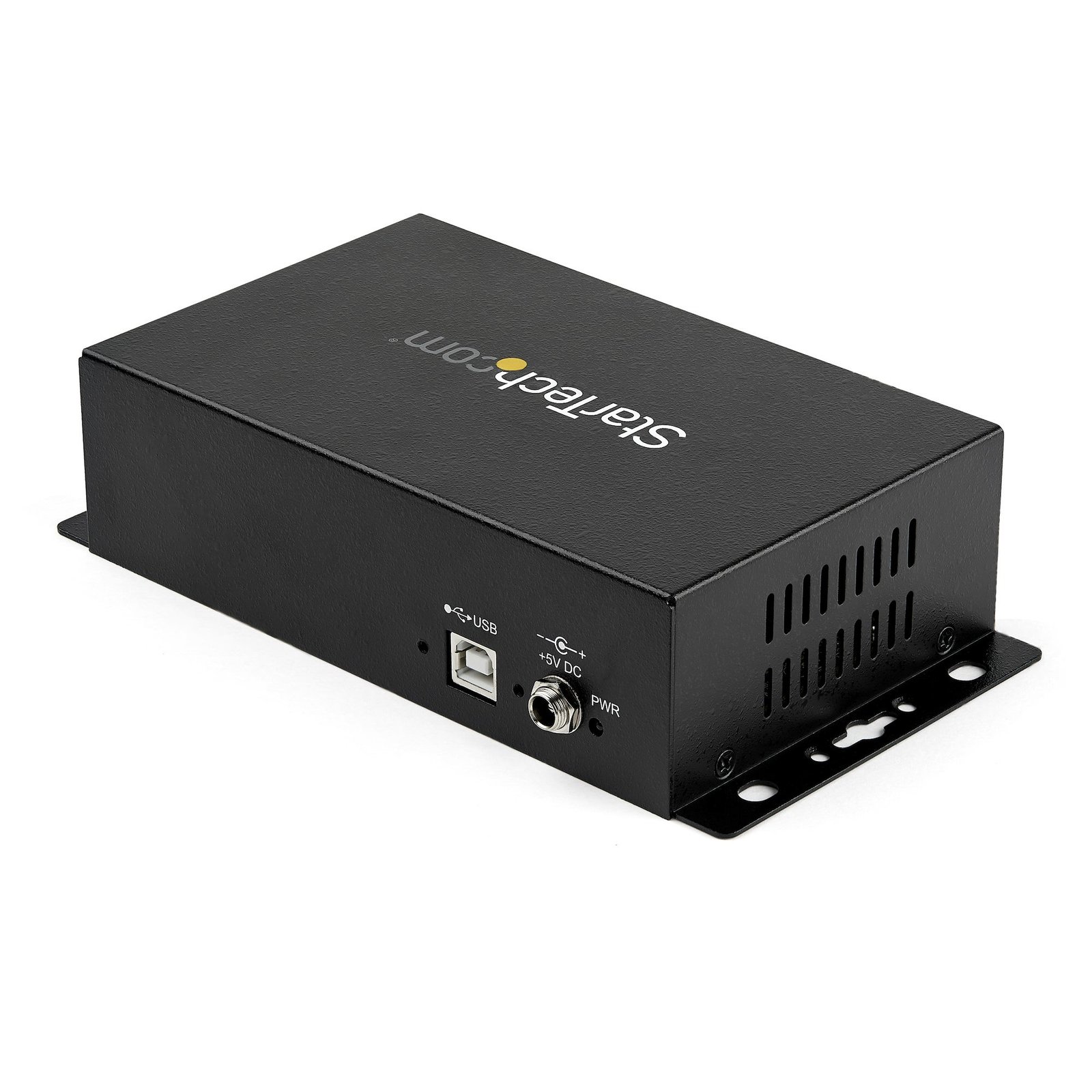

| Product Name | StarTech.com 8 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable - TAA |
| Mfr. Part Number | STA-ICUSB2328I |
|---|---|
| GTIN / Barcode | 0065030848978 |
| Ports & interfaces | |
| Host interface | USB 2.0 Type-B |
| Hub interfaces | Serial |
| Ports quantity | 8 |
| RS-232 ports | 8 |
| Card reader integrated | No |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Activity |
| Power | |
| Input voltage | 5 V |
| Input current | 0.25 A |
| Power plug type | Type M |
| USB powered | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Other operating systems supported | Windows XP Embedded |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 180 mm |
| Height | 43.2 mm |
| Weight | 544 g |
| Packaging data | |
| Package width | 243 mm |
| Package depth | 170 mm |
| Package height | 62 mm |
| Package weight | 862 g |
| Packaging content | |
| Cables included | USB |
| Manual | Yes |
| DIN rail kit included | Yes |
| Drivers included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Performance | |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| FIFO (First In, First Out) | 4048 B |
| Baud rate | 921.6 Kbit/s |
| Mean time between failures (MTBF) | 146300 h |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Master (outer) case width | 425 mm |
| Master (outer) case length | 421 mm |
| Master (outer) case height | 290 mm |
| Products per master (outer) case | 16 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Other features | |
| Chipset | FTDI - FT232RL |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Mounts & Stands |
