| Manufacturer | Startech.com |
|---|---|
| Manufacturer Part Number | SV831DUSBUK |
| GTIN / Barcode | 0065030843331 |
| Brand Name | StarTech.com |

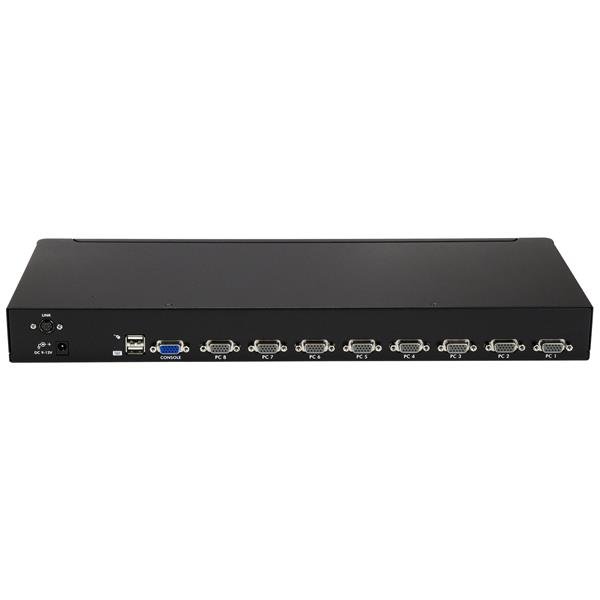

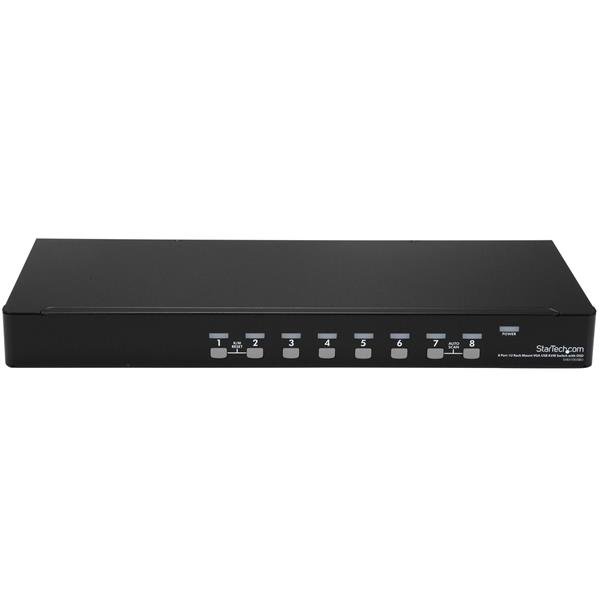

| Product Name | StarTech.com 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables - TAA |
| Mfr. Part Number | SV831DUSBUK |
|---|---|
| GTIN / Barcode | 0065030843331 |
| Ports & interfaces | |
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 9 |
| Console ports | USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
| Performance | |
| Maximum resolution | 1920 x 1440 pixels |
| Maximum analog resolution | 1920 x 1440 pixels |
| Plug and Play | Yes |
| Daisy chain | Yes |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Steel |
| Cascadable | Yes |
| LED indicators | Power |
| Hot keys | Yes |
| Certification | CE, FCC, TAA, REACH |
| Display | |
| On Screen Display (OSD) | Yes |
| Power | |
| Input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (typical) | 12 W |
| External power adapter | Yes |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 435 mm |
| Depth | 180 mm |
| Height | 45 mm |
| Weight | 2.2 kg |
| Packaging data | |
| Package width | 594 mm |
| Package depth | 265 mm |
| Package height | 124 mm |
| Package weight | 4.7 kg |
| Packaging content | |
| Cables included | KVM |
| Manual | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Other features | |
| Audio support | No |
| IP control | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 614 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case height | 413 mm |
| Products per master (outer) case | 3 pc(s) |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Network Switches |
