This 4x4 HDMI matrix switch lets you share four HDMI video sources between four independent displays or projectors, and switch between which source is active on each display device.
True 4K at 60Hz
The HDMI switcher box provides a high level of audio and video performance, with superior contrast and crisp, clear imagery. With support for resolutions up to 4K 60Hz (4:4:4 pixel format, 8-bit color depth) and HDR, the matrix switch is ideal for conventions or trade shows, restaurants and classroom settings, as well as hospital/medical applications.
Plus, the 4K 60Hz HDMI switch is backward compatible with earlier versions of HDMI, so it's easy to use with your existing devices and displays.
Optimized Functionality

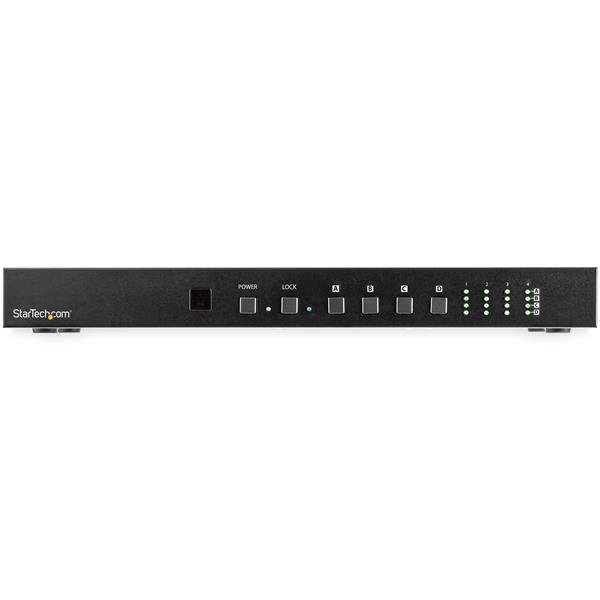

This 4x4 matrix switch is equipped with convenient push-button switching, WebGUI and RS232 control, and also features a front-panel LED display for easy status monitoring.
The HDMI switch box enables you to switch each input, meaning that different A/V sources can be shown on each output, or a single source can be output to all displays.
Ultimate Convenience
The matrix switcher includes a remote control and IR extender module that provides simple control from a distance, and is designed to save space with a standalone or rack-mounting option (ear-mounts included).
VS424HD4K60 is backed by a StarTech.com 2 -year warranty and free lifetime technical support.
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
VS424HD4K60
GTIN / Barcode
0065030880800
Brand Name
StarTech.com
Product Name
StarTech.com 4x4 HDMI Matrix Switch with Audio and Ethernet Control - 4K 60Hz - TAA
Mfr. Part Number
VS424HD4K60
GTIN / Barcode
0065030880800
Features
Product type
AV matrix switcher
Maximum resolution
4096 x 2160 pixels
Bandwidth
18 Gbit/s
Audio channels
7.1
Supported resolutions
4096 x 2160
3840 x 2160
1920 x 1200
Design
Housing colour
Black
Housing material
Metal
Rack mounting
Yes
LED indicators
Activity, Power
Remote control included
Yes
Certification
TAA, CE, FCC, REACH
Display
Built-in display
No

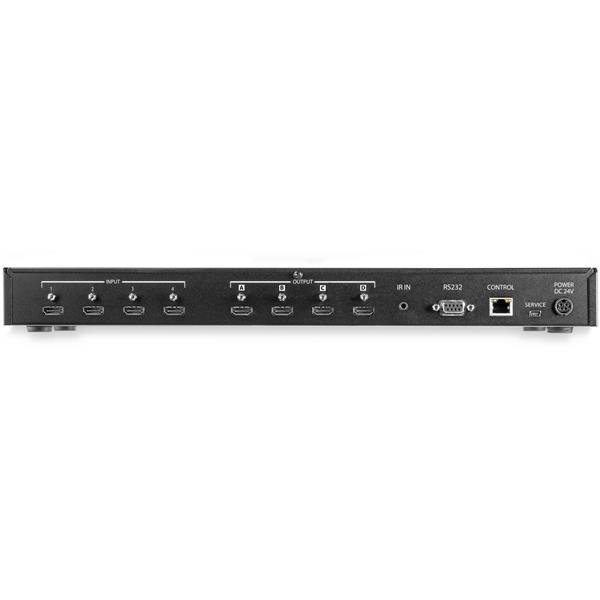

Ports & interfaces
HDMI input ports quantity
4
HDMI output ports quantity
4
HDMI version
2.0
USB connector type
Mini-USB B
USB ports quantity
1
Ethernet LAN (RJ-45) ports
1
RS-232 ports
1
Remote (IR) input
1
Power
AC input voltage
100 - 240 V
Input current
1.5 A
Output current
2700 mA
Output voltage
24 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Logistics data
Products per master (outer) case
3 pc(s)
Master (outer) case length
413 mm
Master (outer) case width
601 mm
Master (outer) case height
345 mm
Harmonized System (HS) code
85299097
Technical details
Compliance certificates
RoHS
Weight & dimensions
Width
160 mm
Depth
437 mm
Height
43 mm
Weight
2 kg
Package width
239 mm
Package depth
470 mm
Package height
99 mm
Package weight
4 kg
Packaging content
Manual
Yes
Mounting brackets included
Yes
IR receiver included
Yes
Included power plug types
ANZ, EU, JP, NA, UK
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Network Switches
