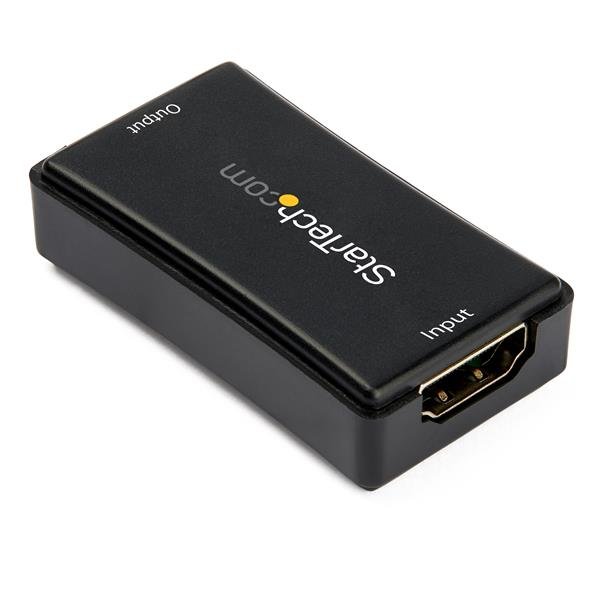

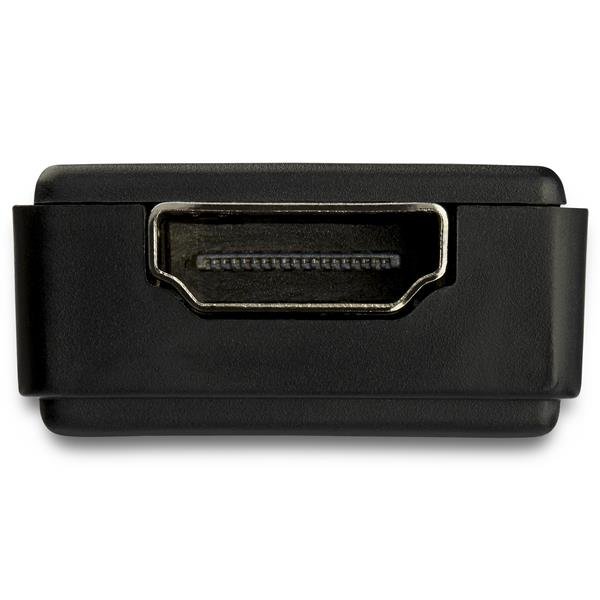

HDMI® Inline Repeater & Amplifier | USB Powered | 7.1 Audio Support | YUV 4:4:4
Use this 4K HDMI® signal booster to amplify your HDMI signal and extend it 45 ft. (14 m) using HDMI cabling.
Maintains Ultra HD 4K Video
When you're extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few short feet. With this signal extender you can ensure that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 45 ft. (14 m). You can achieve even longer distances at lower refresh rates - up to 4K at 30Hz, at up to 100 ft. (30 m).
The signal booster works by connecting two HDMI certified cables, each up to 22.5 ft. (7 m) in length, to either side of the signal booster.
Hassle-Free Installation
With its compact design, the HDMI signal amplifier is easy to hide, for a discreet installation. By extending your video signal using HDMI certified cables, the inline booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.
Supports Several Distances
Support for a variety of extension distances makes the 4K repeater perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.
Note: To achieve resolutions up to 4K 60Hz, your video source, display and cabling must support HDMI 2.0.
Product Specifications
Manufacturer
STARTECH.COM
Manufacturer Part Number
STA-HDBOOST4K2
GTIN / Barcode
0065030883795
Brand Name
StarTech.com
Product Name

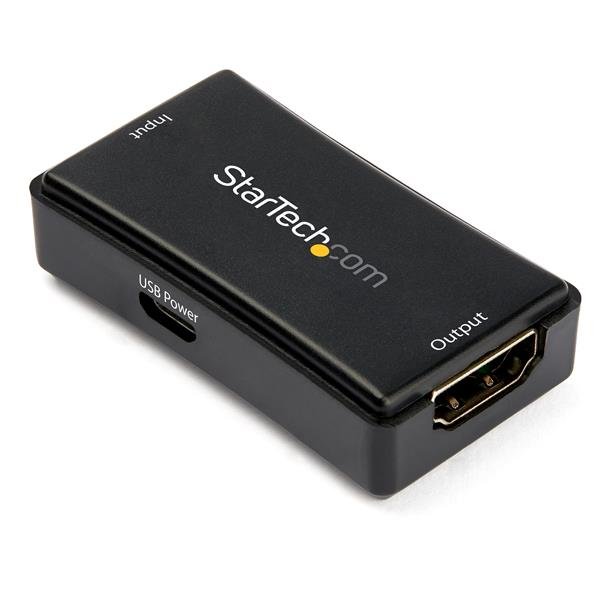

StarTech.com 45 ft. (14 m) HDMI Signal Booster - 4K 60Hz
Mfr. Part Number
STA-HDBOOST4K2
GTIN / Barcode
0065030883795
Features
Type
AV repeater
Maximum resolution
3840 x 2160 pixels
Maximum transfer distance
14 m
Maximum refresh rate
60 Hz
Audio output channels
7.1 channels
Bandwidth
18 Gbit/s
HDCP
Yes
Material
Plastic
Rack mounting
No
Daisy chain
No
HDCP version
2.2
Product colour
Black
Certification
REACH, CE, FCC
Ports & interfaces
HDMI in
1
Number of HDMI outputs
1
HDMI version
2.0
USB ports quantity
1
USB connector type
Micro-USB B
Power
Power consumption (typical)
2.5 W
USB powered
Yes
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
52 mm
Depth
28.5 mm
Height
13.7 mm
Weight
15 g
Packaging data
Package width
143 mm
Package depth
174 mm
Package height
33 mm
Package weight
113 g
Packaging content
Cables included
USB
Quick start guide
Yes
Technical details
Compliance certificates
RoHS
Logistics data
Master (outer) case width
541 mm
Master (outer) case length
550 mm
Master (outer) case height
338 mm
Products per master (outer) case
100 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Cables & Connectivity
Customer reviews
No reviews yet. If you have bought this,
yours would be the first.
