Share keyboard, mouse, and DisplayPort display between four HD multimedia systems

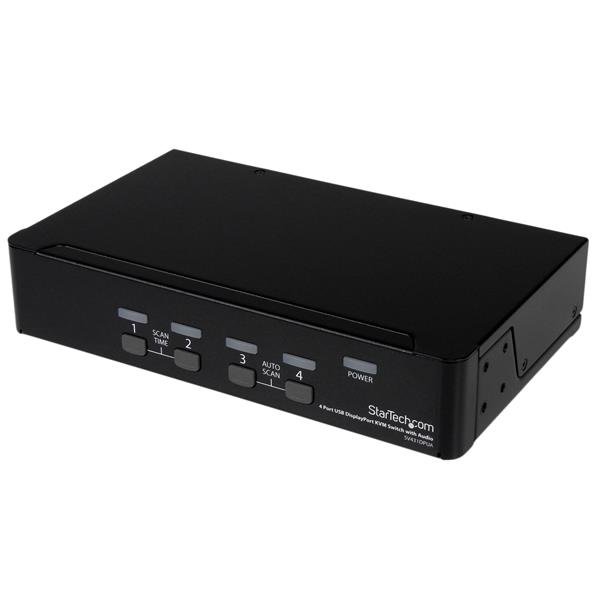

The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

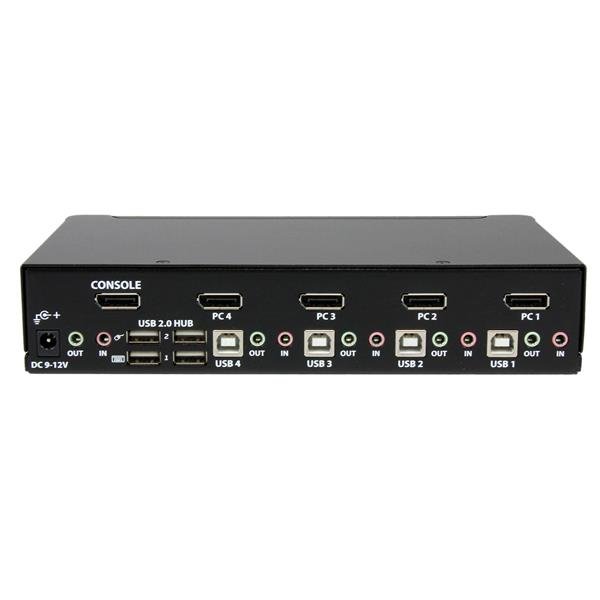

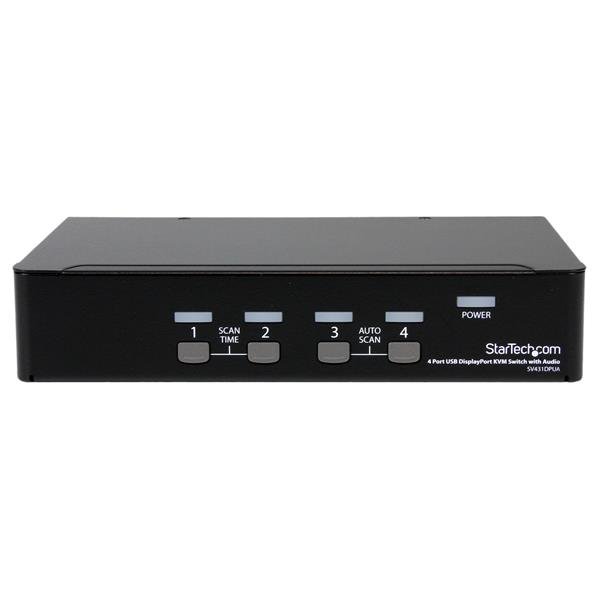

A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
Product Specifications
Manufacturer
STARTECH.COM
Manufacturer Part Number
STA-SV431DPUA
GTIN / Barcode
0065030837545
Brand Name
StarTech.com
Product Name
StarTech.com 4 Port USB DisplayPort KVM Switch with Audio - TAA
Mfr. Part Number
STA-SV431DPUA
GTIN / Barcode
0065030837545
Ports & interfaces
Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Console ports
DisplayPort, 3.5mm headphone, 3.5mm mic, USB A
Console USB ports quantity
4
USB hub
Yes
Audio connections
Yes
Headphone outputs
5
Number of microphone inputs
5
DC-in jack
Yes
Performance
Maximum resolution
3840 x 2400 pixels
Maximum digital resolution
2560 x 1600 pixels
DDC2B support
Yes
Hot-Plug support
Yes
Plug and Play
Yes
Daisy chain
No
Number of users
1 user(s)
Audio channels
7.1
Design
Product colour
Black
Housing material
Steel
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Mean time between failures (MTBF)
136000 h
Certification
CE, FCC, UL, TAA, REACH
Display
Built-in display
No
On Screen Display (OSD)
No
Power
Input voltage
100 - 240 V
Input current
0.8 A
Output voltage
12 V
Output current
1.5 A
External power adapter
Yes
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
221 mm
Depth
130.6 mm
Height
44 mm
Weight
1 kg
Packaging data
Package width
412 mm
Package depth
214 mm
Package height
92 mm
Package weight
1.6 kg
Packaging content
Manual
Yes
AC adapter included
Yes
Rubber feet
Yes
Other features
Audio support
Yes
IP control
No
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
553 mm
Master (outer) case length
438 mm
Master (outer) case height
257 mm
Products per master (outer) case
6 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Network Switches
