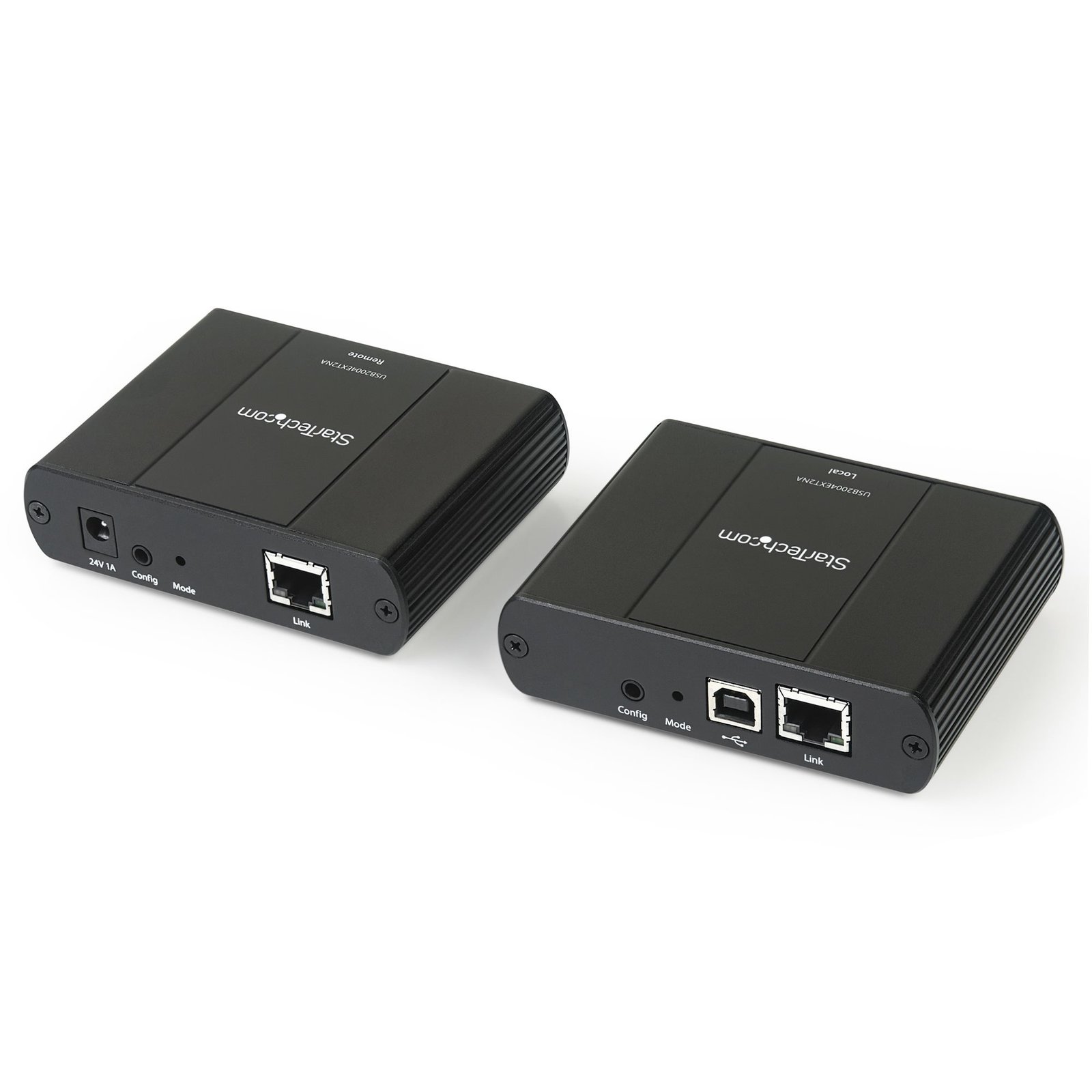

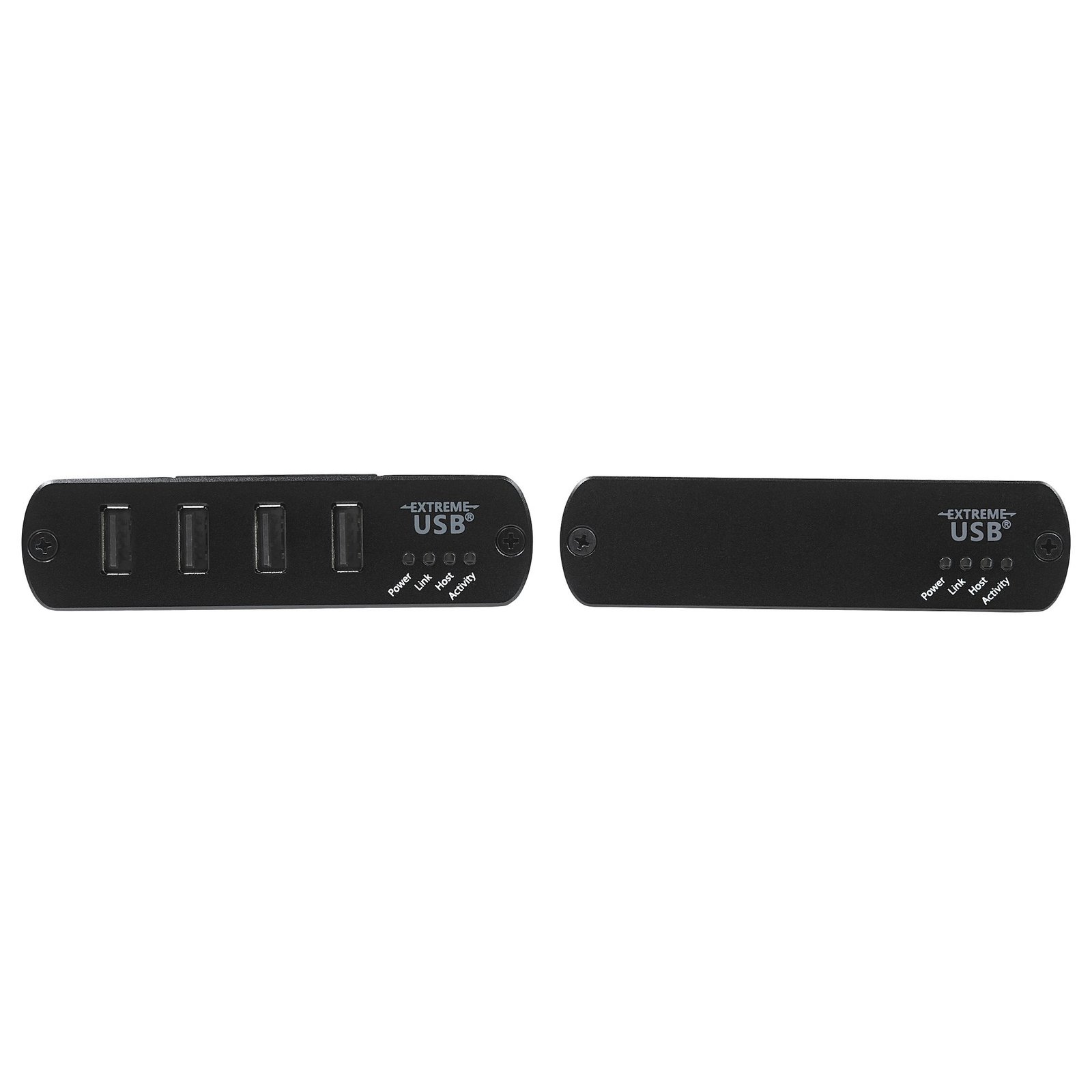

StarTech.com 4 Port USB 2.0 Extender Hub over Cat5e/Cat6 Ethernet Cable (RJ45) - 330ft/100m
Availability: In StockMfr. Part#: USB2004EXT2NA
$625.47Save 5% · $29.78
$595.69USD
Prices shown in USD. Taxes, duties and freight are quoted separately.
Call 856-283-0457 for volume pricing.
Business & Quantity Discounts Available
Flexible Terms for Qualified Organizations
Supporting Commercial, Government & Education Buyers
USB Extender Over CAT5e/CAT6/CAT7 | Rugged Enclosure | ESD Protection | 2-Year Warranty
The USB2004EXTNA USB 2.0 extender over ethernet lets you extend a USB 2.0 connection over distances of up to 100-meters (330-feet), over standard Cat5e or Cat6 ethernet LAN cabling.
Hi-Speed USB performance
With data bandwidth of up to 480 Mbps and no software installation required, the USB extender over Cat5e, Cat6, or Cat7 offers a fast, easy, and versatile solution for business or industrial applications with durable metal housing, an included surface-mounting bracket kit and simple plug-and-play installation.
Plus, the 100m USB extender provides up to the full 500 mA of power (with the use of an external power adapter at the remote end) allowing for greater compatibility with bus-powered USB devices.
Compatible with older USB devices
Connecting older peripherals isn’t a problem. This versatile USB over network extender is backward compatible with legacy USB 1.0 devices. The USB over ethernet hub enables almost any kind of USB device to be placed at remote locations away from the host computer.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales
The USB2004EXT2NA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- USB 2.0 EXTENDER: Connect 4 USB devices up to 330ft/100m over CAT5e/CAT6 RJ45 ethernet network cable w/ data transfer rates up to 480Mbps; LEDs monitor power, activity status, link & host connectivity - CONNECT REMOTE USB DEVICES: The USB extender creates a 4 port hub to remotely access USB devices like printers, cameras, plotters, keyboard/mouse, displays, & CCTV systems at a convenient location - INDUSTRIAL USB EXTENDER: Built w/ durable extruded aluminum construction for high wear & tear environments w/ mounting brackets incl; provides 8kV/16kV Contact/Air Electrostatic Discharge protection
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
USB2004EXT2NA
GTIN / Barcode
0065030889681
Brand Name
StarTech.com
Product Name
StarTech.com 4 Port USB 2.0 Extender Hub over Cat5e/Cat6 Ethernet Cable (RJ45) - 330ft/100m Industrial Metal USB Extender Adapter Kit w/ ESD Protection - Externally Powered - 480 Mbps
Mfr. Part Number
USB2004EXT2NA
GTIN / Barcode
0065030889681
Technical details
Type
Console transmitter & receiver
Data transfer rate
480 Mbit/s
Maximum transfer distance
100 m
LED indicators
Activity, Link, Power
Cable types supported
Cat5e, Cat6, Cat7
Compliance certificates
RoHS
Plug and Play
Yes
Certification
CE, FCC, REACH
Ports & interfaces
USB 2.0 Type-A ports quantity
4
USB 2.0 Type-B ports quantity
1
RJ-45 ports quantity
2
Weight & dimensions
Width
76 mm
Depth
26 mm
Height
100 mm
Weight
190 g
Package width
195 mm
Package depth
245 mm
Package height
76 mm
Package weight
934 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Packaging content
Cables included
AC, USB
Mounting kit
Yes
Quick start guide
Yes
AC adapter included
Yes
Power
Power consumption (typical)
15 W
Input voltage
100 - 240 V
Input current
0.58 A
Output voltage
24 V
Output current
1 A
Power plug type
Type M
Logistics data
Master (outer) case width
420 mm
Master (outer) case length
570 mm
Master (outer) case height
260 mm
Products per master (outer) case
14 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Network Cabling
