Control up to 4 PC or Mac® computers from a single keyboard, mouse and monitor and share any USB device between all connected computers

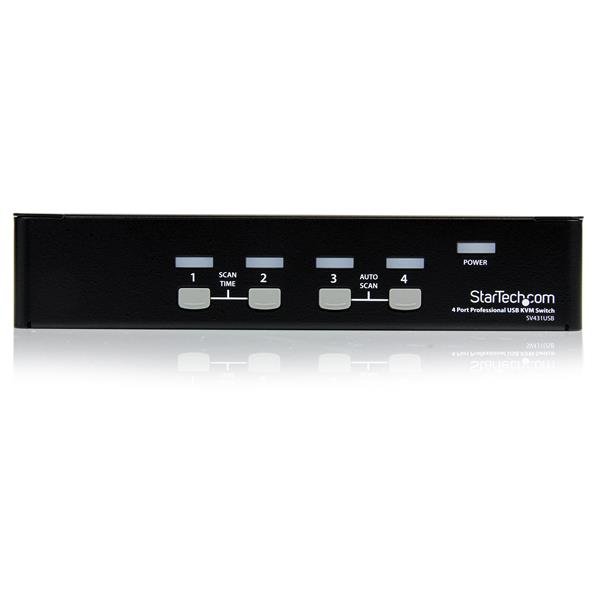

The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.

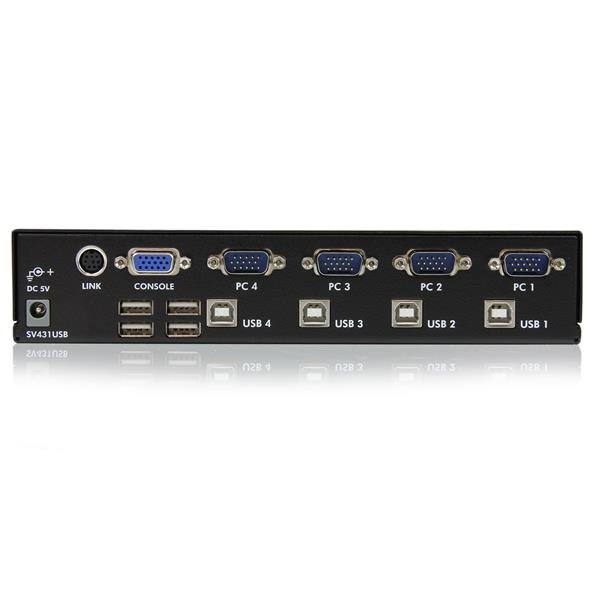

Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.
A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.
This product is TAA compliant and backed by a Startech.com 3 year warranty with free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
Product Specifications
Manufacturer
STARTECH.COM
Manufacturer Part Number
STA-SV431USB
GTIN / Barcode
0065030787192
Brand Name
StarTech.com
Product Name

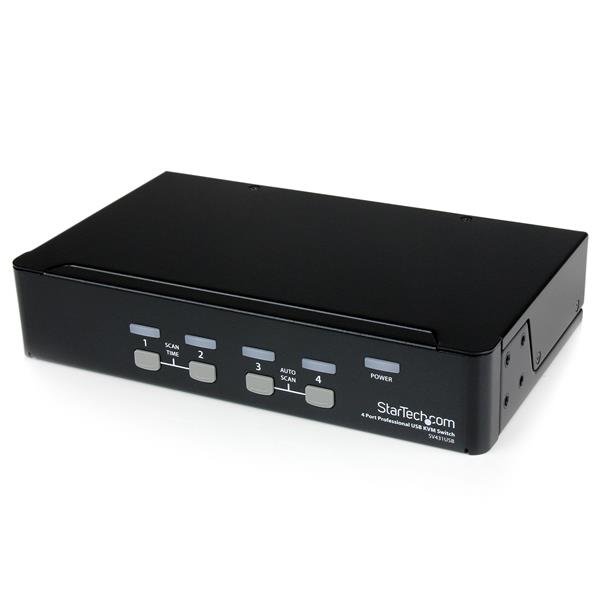

StarTech.com 4 Port Professional VGA USB KVM Switch with Hub - TAA
Mfr. Part Number
STA-SV431USB
GTIN / Barcode
0065030787192
Ports & interfaces
Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
VGA
Console ports
USB A, VGA (D-Sub)
Console USB ports quantity
4
Audio connections
No
DC-in jack
Yes
Performance
Maximum resolution
1920 x 1440 pixels
Scan interval
3,8,15,30 s
Daisy chain
No
Number of users
1 user(s)
Design
Rack mounting
Yes
Rack capacity
1U
Product colour
Black
Housing material
Steel
Maximum cable length
5 m
Hot keys
No
Mean time between failures (MTBF)
82506 h
Certification
CE, FCC, REACH, TAA, cUR
Display
Built-in display
No
On Screen Display (OSD)
No
Power
Input voltage
110-240 V
Input current
0.4 A
Output voltage
5 V
Output current
2 A
Power plug type
Type N
Sustainability
Compliance certificates
RoHS
Weight & dimensions
Width
130 mm
Depth
220 mm
Height
44 mm
Weight
988 g
Packaging data
Package width
195 mm
Package depth
296 mm
Package height
74 mm
Package weight
1.3 kg
Packaging content
Manual
Yes
Rubber feet
Yes
Other features
IP control
No
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
455 mm
Master (outer) case length
415 mm
Master (outer) case height
330 mm
Products per master (outer) case
12 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Network Switches
