/StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 - TAA
StarTech.com
StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 RS422 / RS485 - TAA
US$175.52
Save 5%
US$167.16
USD
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
- Business & Quantity Discounts Available
- Flexible Terms for Qualified Organizations
- Supporting Commercial, Government & Education Buyers
- Trusted B2B Ordering & Secure Payments
Product Details

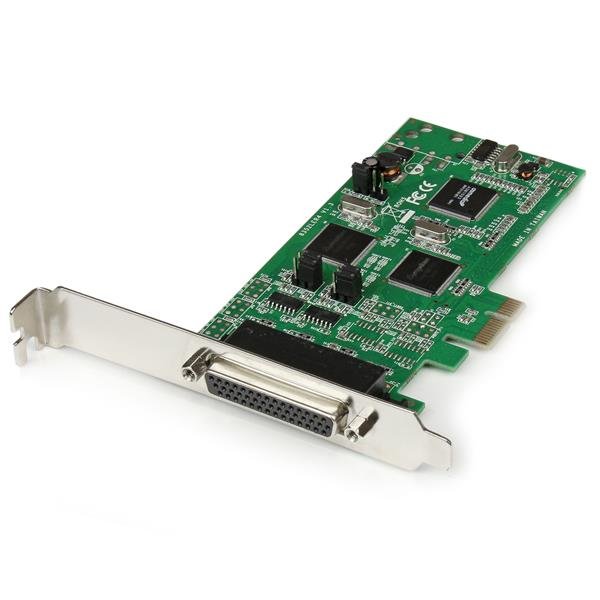

Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot
The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.

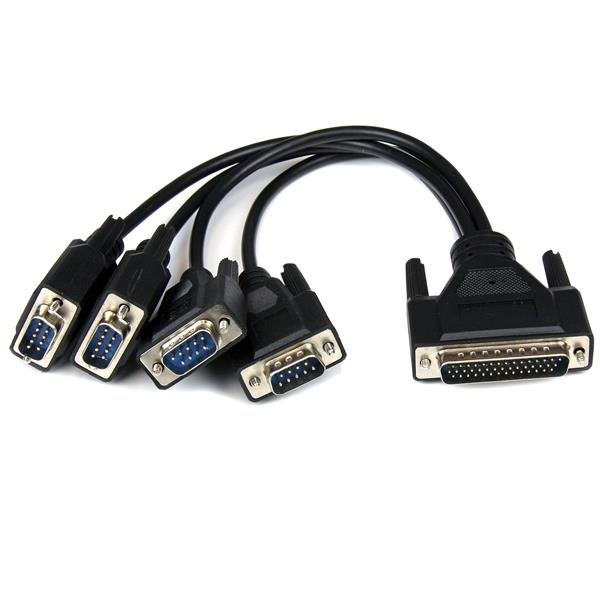

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.
A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Product Specifications
| Manufacturer | STARTECH.COM |
|---|---|
| Manufacturer Part Number | STA-PEX4S232485 |
| GTIN / Barcode | 0065030849357 |
| Brand Name | StarTech.com |
| Product Name | StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 - TAA |
| Mfr. Part Number | STA-PEX4S232485 |
|---|---|
| GTIN / Barcode | 0065030849357 |
| Ports & interfaces | |
| Host interface | PCIe |
| Output interface | Serial |
| Serial ports quantity | 4 |
| Serial interface type | RS-232/422/485 |
| Design | |
| Internal | Yes |
| Features | |
| Chipset | SystemBase SB16C1052PCI |
| FIFO (First In, First Out) | 256 B |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 100 °C |
| Storage temperature (T-T) | 0 - 150 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| System requirements | |
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 70 mm |
| Height | 20 mm |
| Weight | 67.4 g |
| Packaging data | |
| User guide | Yes |
| Package width | 146 mm |
| Package depth | 210 mm |
| Package height | 41 mm |
| Package weight | 390 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 25 pc(s) |
| Master (outer) case width | 344 mm |
| Master (outer) case length | 474 mm |
| Master (outer) case height | 240 mm |
| Other features | |
| Data transfer rate | 0.4608 Mbit/s |
| Connectivity technology | Wired |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Cables & Connectivity |
