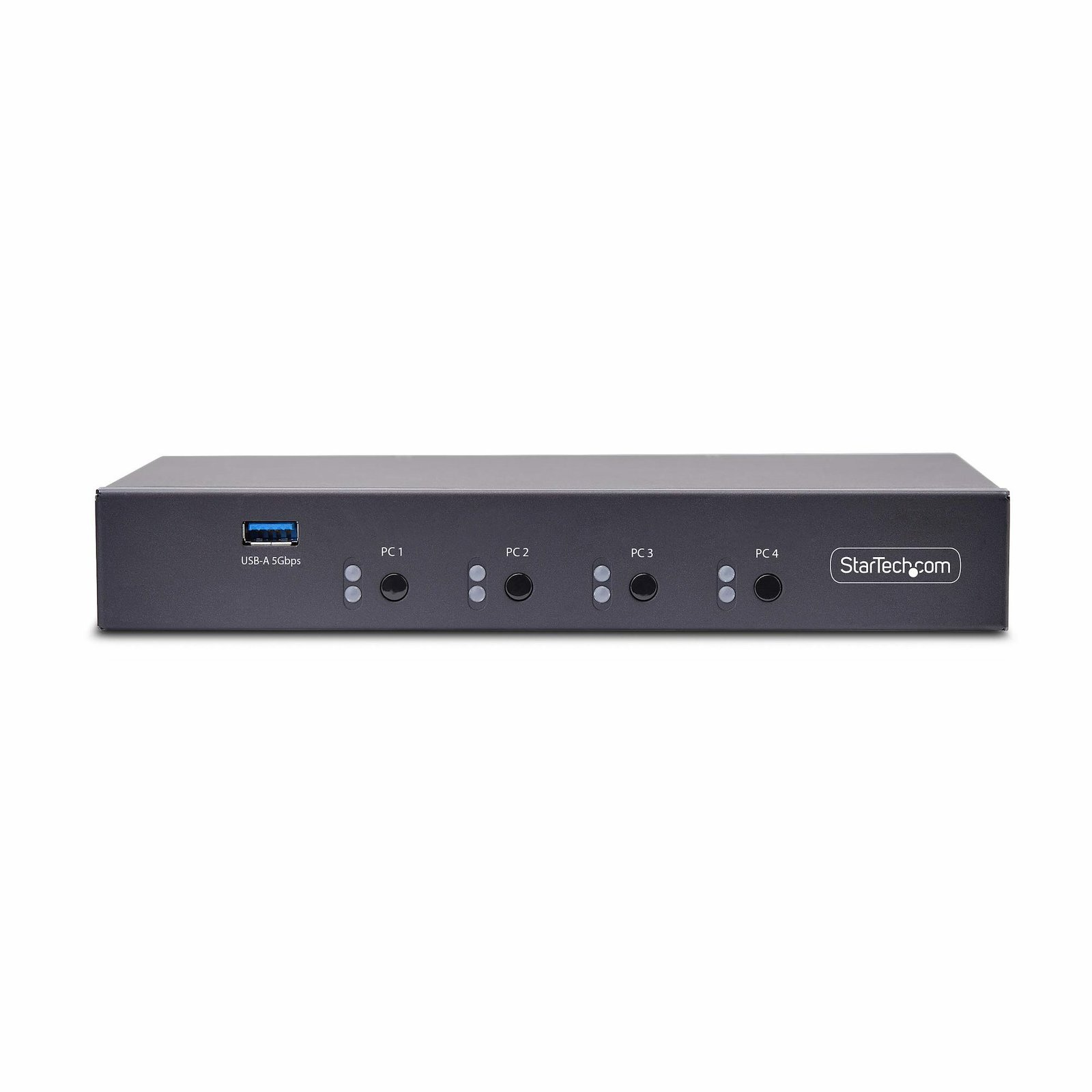

Control up to four computers with a single keyboard and mouse
This Keyboard and Mouse (KM) Switch enables switching a single keyboard and mouse between multiple computers using mouse roaming, allowing users to seamlessly move the cursor across multiple screens (i.e., one monitor per computer).
Mouse Switching
Switch between computers by moving the mouse between monitors, enabling uninterrupted workflow and increased efficiency. Hotkey and push-button switching are universally compatible. Mouse Switching is supported by most major desktop operating systems, including Windows, macOS, and Linux.
Preset Monitor Layouts
To accommodate various physical monitor setups, there are four preset display configurations available. This allows for smooth mouse movement across host monitors.
Thoughtful Design
Hotkeys enable listening to audio from one computer while controlling another. USB audio and 3.5mm pass-through are available, and LEDs provide visual port selection status, while an audible buzzer confirms hotkey selection.
Note: On computers with multiple monitors connected with Mouse Switching/Roaming enabled, mouse/keyboard operation is limited to the primary display
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
P4A20132-KM-SWITCH
GTIN / Barcode
0065030902250
Brand Name
StarTech.com
Product Name
StarTech.com 4-Port KM Switch with Mouse Switching, USB Switch for Keyboard/Mouse, 3.5mm/USB Audio, Peripheral Sharing for 4 Computers, TAA Compliant
Mfr. Part Number
P4A20132-KM-SWITCH
GTIN / Barcode
0065030902250
Ports & interfaces
Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4
Console ports
3.5mm headphone, 3.5mm mic, USB A
USB 2.0 Type-A hub ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Audio connections
Yes
Headphone outputs
6
Number of microphone inputs
1
DC-in jack
Yes
Performance
HD type
Not supported
Data transfer rate (max)
5 Gbit/s
Chipset
GL3523
Design
Product colour
Black
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Mean time between failures (MTBF)
156000 h
Display
Built-in display
No
On Screen Display (OSD)
No
Power
Input voltage
100 - 240 V
Input current
0.6 A
Output voltage
12 V
Output current
5 A
External power adapter
Yes
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US
Sustainability
Sustainability compliance
Yes
Compliance certificates
RoHS, Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
130 mm
Depth
220 mm
Height
34 mm
Weight
800 g
Packaging data
Package width
295 mm
Package depth
245 mm
Package height
63 mm
Package weight
180 g
Packaging content
Quick installation guide
Yes
Other features
IP control
No
Logistics data
Master (outer) case width
320 mm
Master (outer) case length
505 mm
Master (outer) case height
290 mm
Products per master (outer) case
8 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Keyboards, Mice & Peripherals
