1 In 4 Out Video Splitter | HDMI 2.0 | HDR | 2-Year Warranty

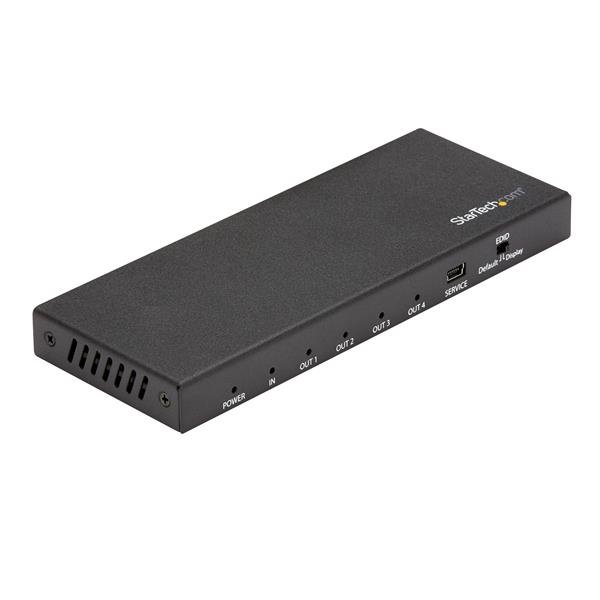

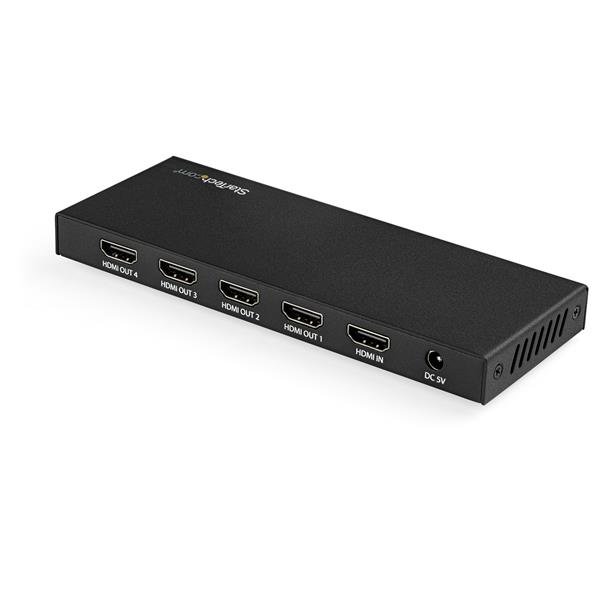

This 4-Port 4K HDMI splitter connects your HDMI video source to four HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.
True 4K at 60Hz and HDR
With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.
The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.
Widely Compatible
The 4-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.
Easy Installation
For hassle-free setup, the 1x4 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.
ST124HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
ST124HD202
GTIN / Barcode
0065030880398
Brand Name
StarTech.com
Product Name
StarTech.com 4-Port HDMI Splitter - 4K 60Hz
Mfr. Part Number
ST124HD202
GTIN / Barcode
0065030880398
Ports & interfaces
Video port type
HDMI
Video out
4x HDMI
HDMI version
2.0
Video ports quantity
4
Features
Product colour
Black
Maximum resolution
3840 x 2160 pixels
Full HD
Yes
HD type
4K Ultra HD
Maximum refresh rate
60 Hz
HDCP
Yes
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Power LED
Yes
Plug and Play
Yes
Supported video modes
720p, 1080p
LED indicators
Yes
Certification
CE, FCC, REACH
Power
AC input voltage
100 - 240 V
Input current
1 A
Output voltage
5 V
Output current
0.2 A
Power consumption (typical)
5 W
Weight & dimensions
Width
64 mm
Depth
165 mm
Height
65 mm
Weight
506 g
Packaging data
Package width
151 mm
Package depth
216 mm
Package height
68 mm
Packaging content
User guide
Yes
Included power plug types
AU, EU, NA, UK
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Technical details
Maximum cable length
5 m
Supported audio channels
7.1
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case width
453 mm
Master (outer) case length
360 mm
Master (outer) case height
329 mm
Products per master (outer) case
20 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Cables & Connectivity
Customer reviews
No reviews yet. If you have bought this,
yours would be the first.
