Home/Networking & Communications/Network Switches/StarTech.com 4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 2.0 Hub & Audio - Dell, HP, Apple, Lenovo - TAA Compliant
StarTech.com

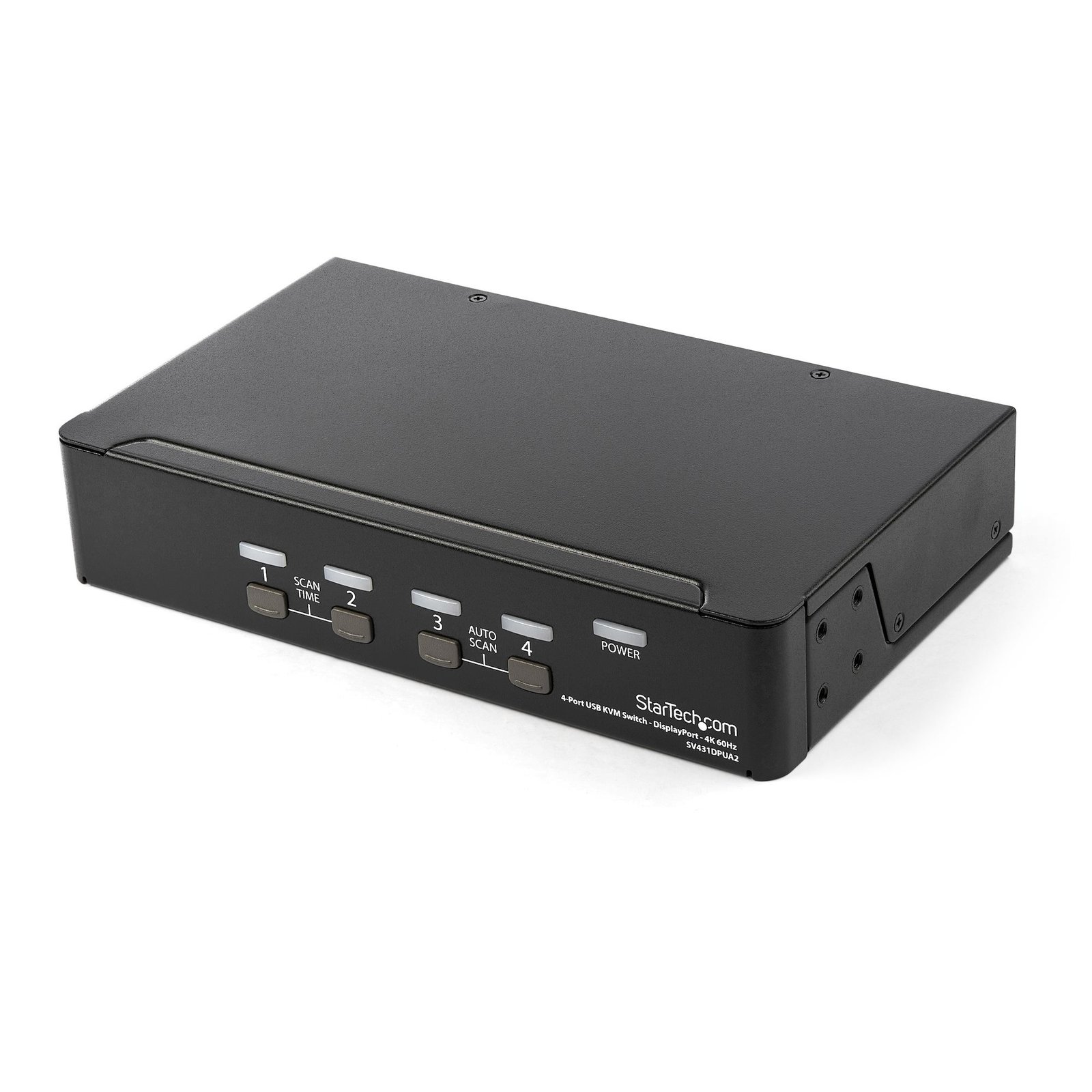

StarTech.com 4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual UHD DP 1.2 USB with
Availability: In StockMfr. Part#: SV431DPUA2
$573.42Save 5% · $27.31
$546.11USD
Prices shown in USD. Taxes, duties and freight are quoted separately.
Call 856-283-0457 for volume pricing.
Business & Quantity Discounts Available
Flexible Terms for Qualified Organizations
Supporting Commercial, Government & Education Buyers
DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio
This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.
Simple to Operate

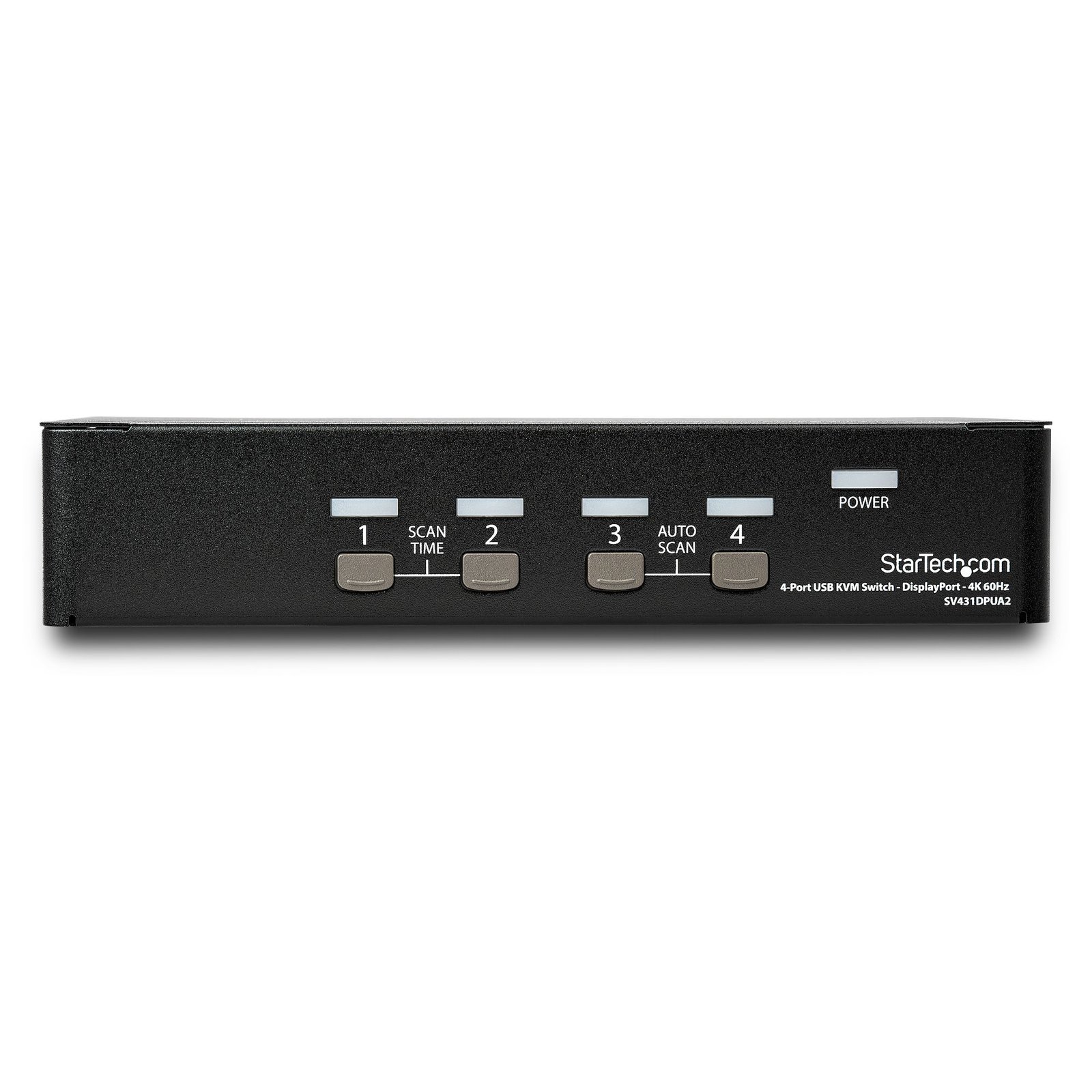

The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
SV431DPUA2
GTIN / Barcode
0065030826372
Brand Name
StarTech.com
Product Name
StarTech.com 4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 2.0 Hub & Audio - Dell, HP, Apple, Lenovo - TAA Compliant
Mfr. Part Number
SV431DPUA2
GTIN / Barcode
0065030826372
Ports & interfaces
Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
DisplayPorts quantity
5
USB 2.0 Type-B ports quantity
4
Console ports

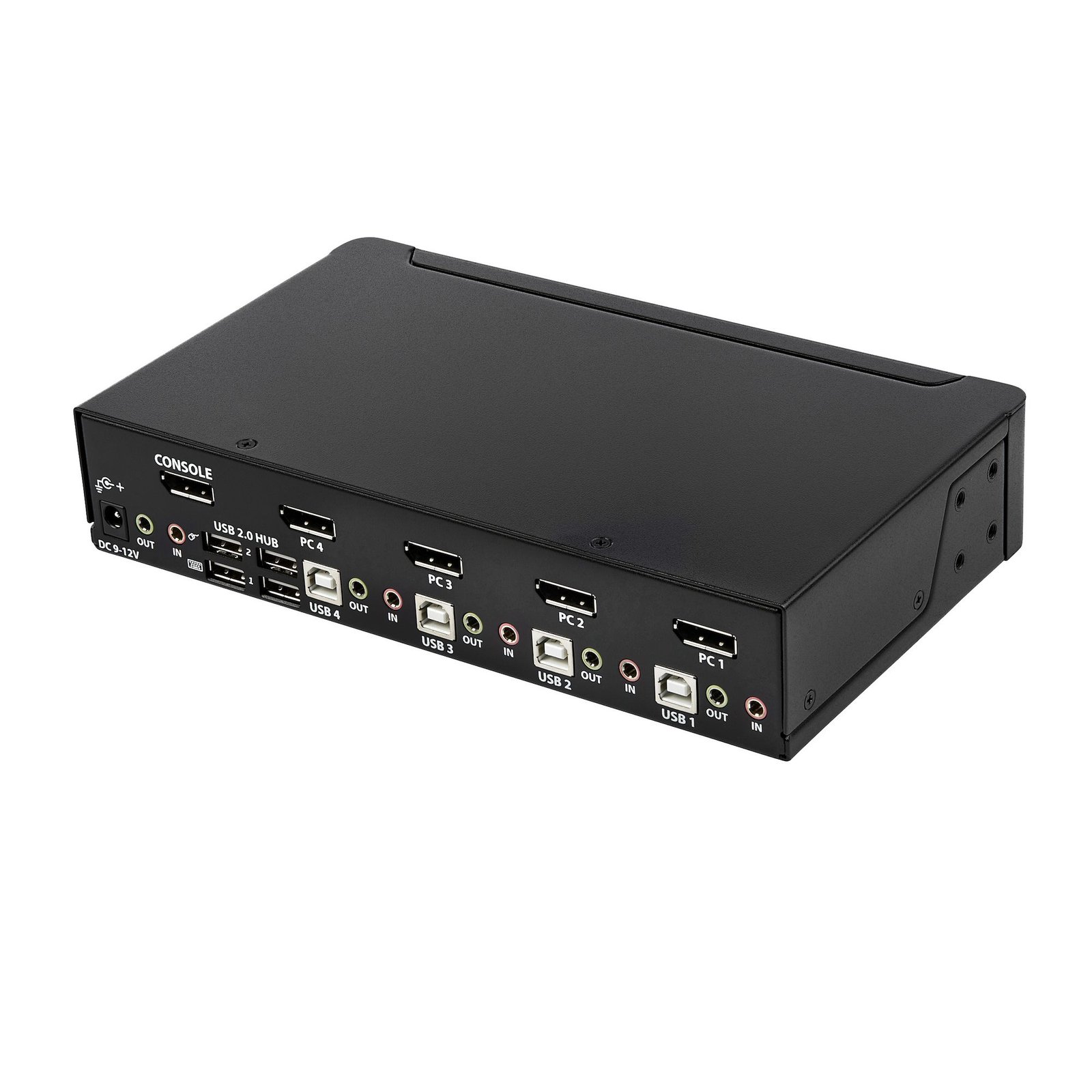

3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity
4
Audio connections
Yes
Headphone outputs
5
Number of microphone inputs
5
DC-in jack
Yes
Network
Ethernet LAN
No
Performance
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Data transfer rate (max)
0.48 Gbit/s
Scan interval
3,8,15,30 s
Plug and Play
Yes
Daisy chain
No
Number of users
1 user(s)
Design
Rack mounting
Yes
Rack capacity
1U
Product colour
Black
Housing material
Steel
LED indicators
Yes
Hot keys
Yes
Mean time between failures (MTBF)
138327 h
Certification
CE, FCC, TAA, REACH
Display
On Screen Display (OSD)
Yes
Power
Input voltage
100 - 240 V
Input current
0.6 A
Output voltage
12 V
Output current
1.5 A
Power consumption (typical)
18 W
External power adapter
Yes
Power plug type
Type M
Compatible power plug types
AU, EU, JP, UK, US
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 40%
Weight & dimensions
Width
131 mm
Depth
220 mm
Height
45 mm
Weight
1 kg
Packaging data
Package width
412 mm
Package depth
216 mm
Package height
89 mm
Package weight
1.6 kg
Packaging content
Quick installation guide
Yes
AC adapter included
Yes
Rubber feet
Yes
Other features
Audio support
Yes
IP control
No
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
551 mm
Master (outer) case length
436 mm
Master (outer) case height
257 mm
Products per master (outer) case
6 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Network Switches
