Control up to 4 VGA and USB computers from a single keyboard, mouse and monitor
The SV431DUSBU 4 Port 1U Rack Mountable USB KVM Switch with OSD lets you control multiple USB based computers from a single console (USB keyboard, USB mouse, monitor).

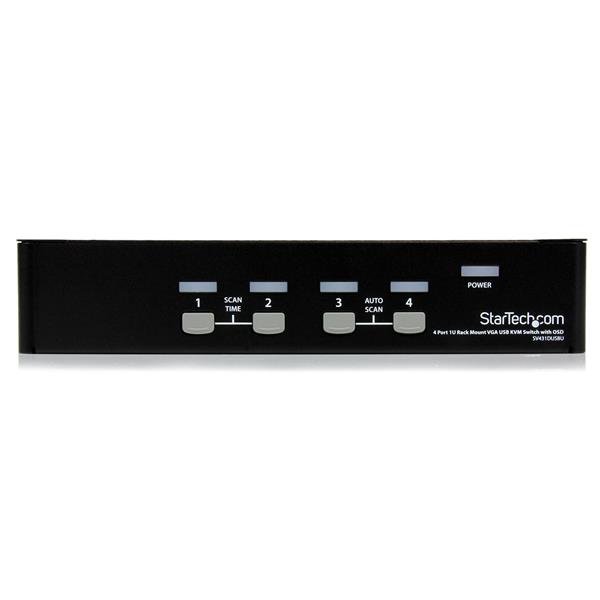

Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.

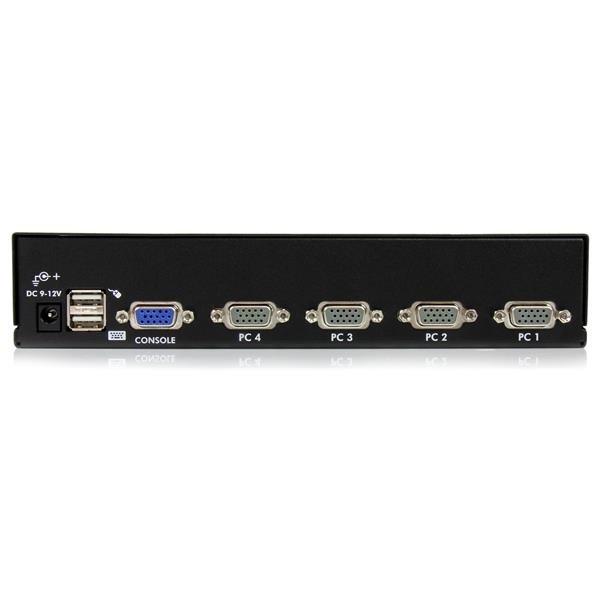

Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet (with optional mounting bracket SV431RACK) and offers rear cable connections to eliminate cable tangles and minimize workspace disruption.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The SV431DUSBU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
15 ft Ultra Thin USB VGA 2-in-1 KVM Cable
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
SV431DUSBU
GTIN / Barcode
0065030837231
Brand Name
StarTech.com
Product Name
StarTech.com 4 Port 1U Rackmount USB KVM Switch with OSD - TAA
Mfr. Part Number
SV431DUSBU
GTIN / Barcode
0065030837231
Ports & interfaces
Number of computers controlled
4
Keyboard port type
No
Mouse port type
No
Video port type
VGA
VGA (D-Sub) ports quantity
5
Console ports
USB A, VGA (D-Sub)
Console USB ports quantity
2
USB 2.0 ports quantity
2
Audio connections
No
DC-in jack
Yes
Performance
Maximum resolution
1920 x 1440 pixels
Maximum analog resolution
1920 x 1440 pixels
Plug and Play
Yes
Daisy chain
Yes
Design
Rack mounting
Yes
Rack capacity
1U
Product colour
Black
Housing material
Steel
LED indicators
Power
Hot keys
Yes
Mean time between failures (MTBF)
143000 h
Certification
CE, FCC, TAA, REACH
Display
Built-in display
No
On Screen Display (OSD)
Yes
Power
Input voltage
110 - 240 V
Input current
0.2 A
Output voltage
9 V
Output current
0.6 A
Power consumption (typical)
5.4 W
External power adapter
Yes
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
5 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
220 mm
Depth
130 mm
Height
43 mm
Weight
957 g
Packaging data
Package width
412 mm
Package depth
215 mm
Package height
92 mm
Package weight
1.6 kg
Packaging content
Manual
Yes
AC adapter included
Yes
Rubber feet
Yes
Other features
Audio support
No
IP control
No
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
551 mm
Master (outer) case length
439 mm
Master (outer) case height
258 mm
Products per master (outer) case
6 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Network Switches
