StarTech.com 3-Port MST Hub - DisplayPort to 3x HDMI, Triple 4K 60Hz Monitors, DP 1.4 Multi-Monitor

Create a high-performance triple-monitor workstation by connecting a DisplayPort Desktop to three independent HDMI monitors

Connect three HDMI monitors to a DisplayPort-enabled host device, using this DisplayPort to HDMI MST Hub.

Drive Triple 4K 60Hz Displays with HDR

Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into three independent signals, one for each HDMI-enabled display. Support for High Dynamic Range (HDR) facilitates enhanced contrast, brightness, color, and luminosity.

Host Connection

Maximum Resolution Output 1

Maximum Resolution Output 2

Maximum Resolution Output 3

Example Host Processor/Graphics

DisplayPort 1.4 with DSC

4K 60Hz

4K 60Hz

4K 60Hz

Intel 12th Gen Processors & Later

Dedicated AMD & Nvidia GPU's that support DSC

4K 60Hz

4K 60Hz

N/A

Intel 11 th Gen with DSC

DisplayPort 1.4

4K 30Hz

4K 30Hz

4K 30Hz

Intel 10 th Gen (Ice Lake Only)

Intel 11th Gen Processors & Later

Dedicated AMD and Nvidia GPU's that support DP 1.4

DisplayPort 1.2

4K 30Hz

4K 30Hz

1080p

Intel 8 th - 10th Gen Processors & Later

*Please verify the GPU capabilities and driver support for DSC through MST with the OEM of the host device

Multitasking Made Easy

Configure the triple-HDMI displays in extended or mirrored mode. Create a high-performance workstation by adding three independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.

Driverless for Rapid Deployment and Seamless User Setup Experience

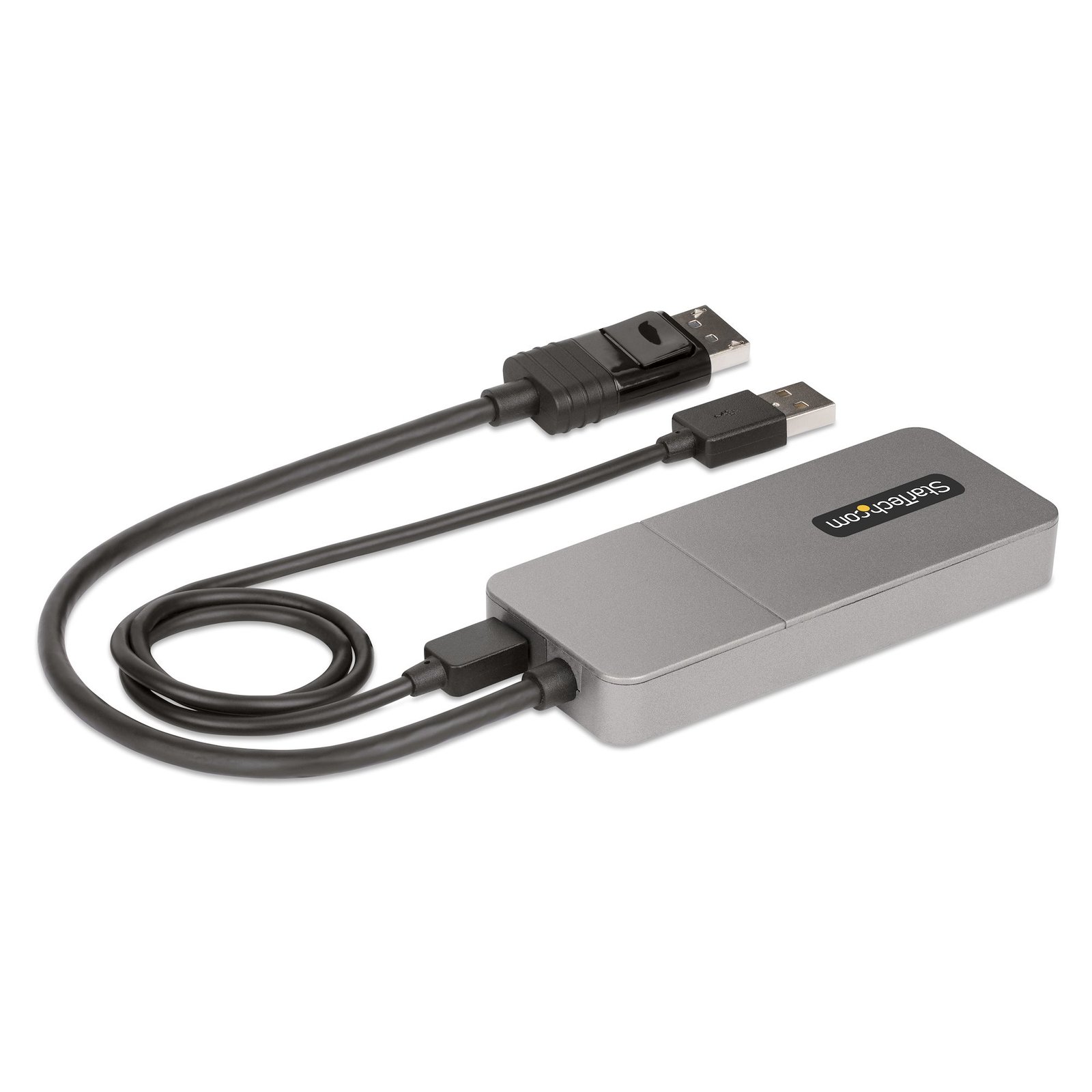

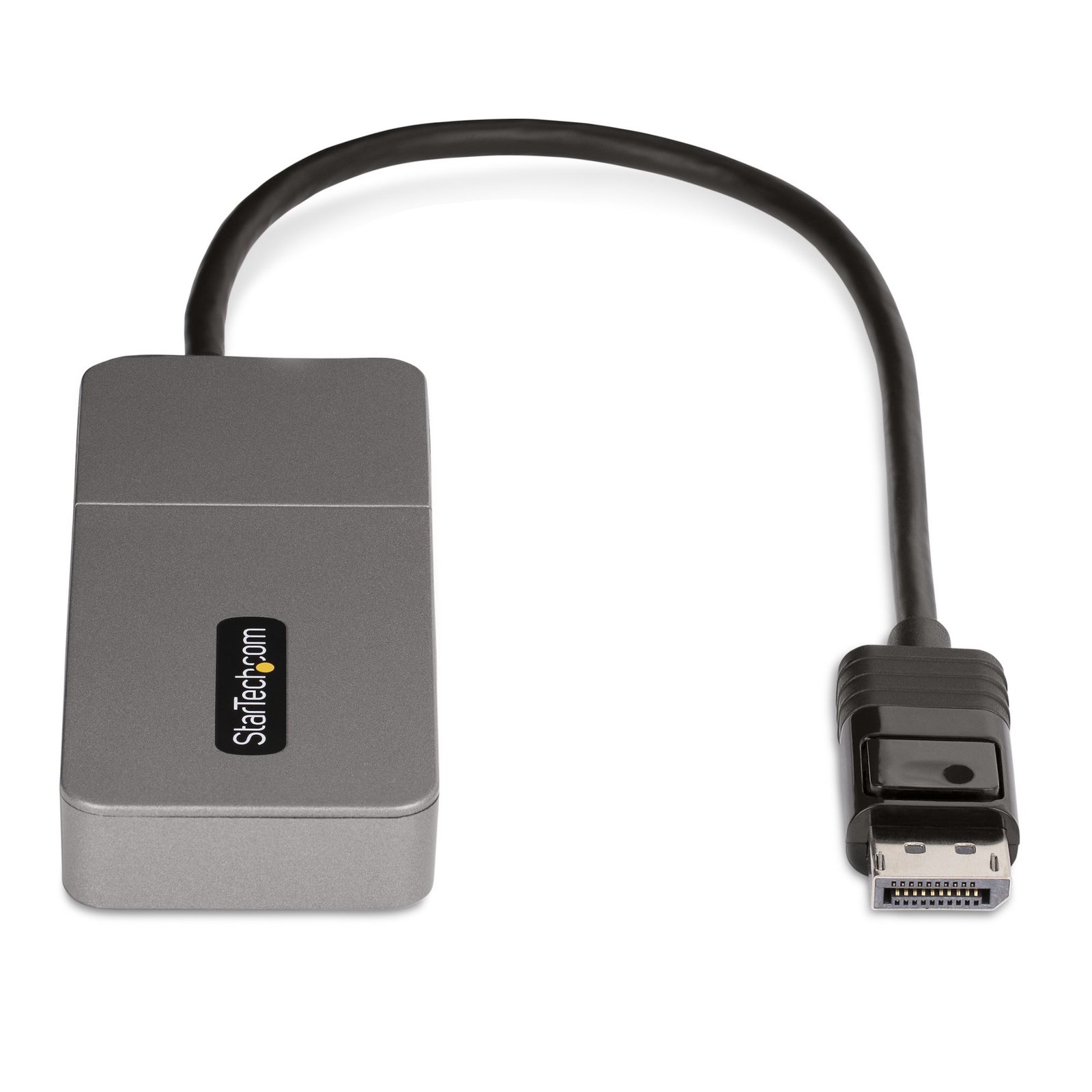

This MST Hub achieves maximum performance with Windows desktops featuring Intel 12th generation (and later) processors, or dedicated graphics cards with DisplayPort 1.4 output ports and DSC support. Plug-and-play installation with no drivers or software required. The 12in (30cm) built-in DisplayPort cable provides options for flexible installation configurations, reducing the amount of strain on the port and connector. Additionally, this triple-monitor splitter is USB Powered and includes a 20inch (50cm) USB Micro-B power cable.
