Distribute your HDMI source to three remote displays over standard CAT5e, CAT6 or CAT7 cable

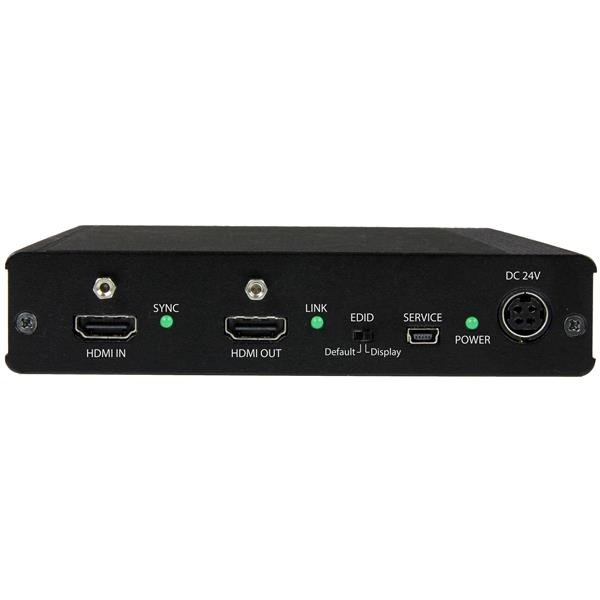

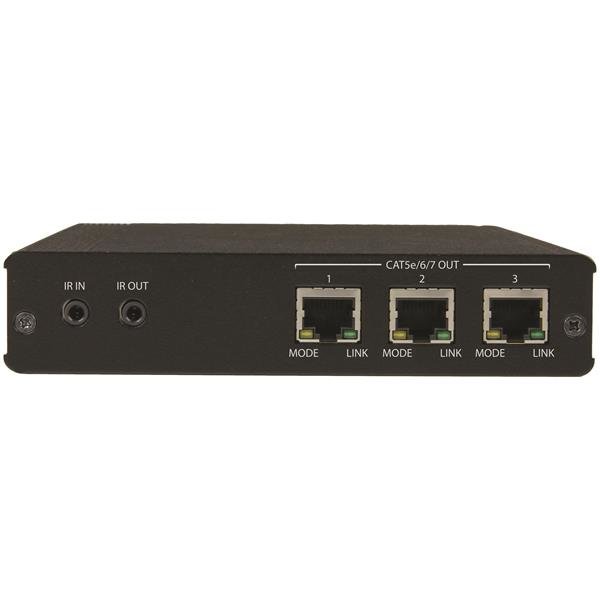

This 3-Port HDBaseT™ extender kit lets you extend an HDMI® source to three remote locations, using HDBaseT technology. The kit includes three remote receiver units, and the transmitter features a local HDMI output, which gives you the ability to keep a fourth HDMI display at your local video source.
A complete extender kit that includes transmitter and receivers
This all-in-one extender kit saves you the complications and compatibility issues that can happen if you're not using the correct receivers. It’s perfect for use in corporate environments such as small or large offices, or in retail, hospitality, and educational establishments.
Astonishing 4K picture quality from an impressive distance
With the A/V industry adopting 4K as its new high-resolution standard, long-range video distribution can be difficult, especially considering the 4K distance limitations on standard HDMI cables. You’ll be amazed at how this HDBase-T extender kit can deliver your video signal to three different locations while maintaining 4K Ultra HD picture quality. You get four times the resolution of high-definition 1080p, even at 115 feet (35 m) away from your video source.
The extender is also backward compatible with 1080p at 230 feet (70 m), so you can comfortably use it to make any video source look great.
Professional installation
HDBaseT technology offers a single-cable installation, so you can integrate this solution seamlessly using your existing CAT5e or CAT6 infrastructure. Plus, each device included with the HDBaseT extender kit is mountable, so you can keep the equipment out of sight in an equipment rack, or on a wall. This helps to reduce clutter and ensure a professional installation that doesn't draw your viewers' attention away from the content on your display. It’s perfect for customer-facing displays in bars or restaurants.
What is HDBaseT?
HDBaseT is a standardized, zero-latency video technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals, over a single Ethernet cable.
Offering greater versatility than traditional HDMI extenders, and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer. It can do so much, with just a single cable.
The ST124HDBT is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
ST124HDBT
GTIN / Barcode
0065030864558
Brand Name
StarTech.com
Product Name
StarTech.com 3-Port HDBaseT Extender Kit with 3 Receivers - 1x3 HDMI over CAT5e Splitter - Up to 4K - TAA
Mfr. Part Number
ST124HDBT
GTIN / Barcode
0065030864558
Features
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat7
Maximum transfer distance
70 m
Maximum refresh rate
30 Hz
LED indicators
Link, Power
Supported video modes
720p, 1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160
Rack mounting
Yes
HDCP & EDID bypass
Yes
Daisy chain
Yes
Certification
CE, FCC, TAA
Ports & interfaces
RJ-45 input ports
3
RJ-45 output ports
3
HDMI in
1
Number of HDMI outputs
4
Remote (IR) input
1
Remote (IR) output
1
DC-in jack
Yes
Power
AC input voltage
100 - 240 V
Operating voltage
24 V
Input current
1.5 A
Output current
2.7 A
Power consumption (typical)
64.8 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
145 mm
Depth
200 mm
Height
30 mm
Weight
1 kg
Packaging data
Package width
239 mm
Package depth
470 mm
Package height
96 mm
Package weight
2.6 kg
Packaging content
AC adapter included
Yes
Included power plug types
AU, EU, NA, UK
Quick start guide
Yes
IR blaster included
Yes
IR receiver included
Yes
Technical details
Audio support
Yes
Country of origin
Taiwan
Compliance certificates
RoHS
Logistics data
Master (outer) case width
370 mm
Master (outer) case length
315 mm
Master (outer) case height
514 mm
Products per master (outer) case
5 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Cables & Connectivity
Customer reviews
No reviews yet. If you have bought this,
yours would be the first.
