Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays

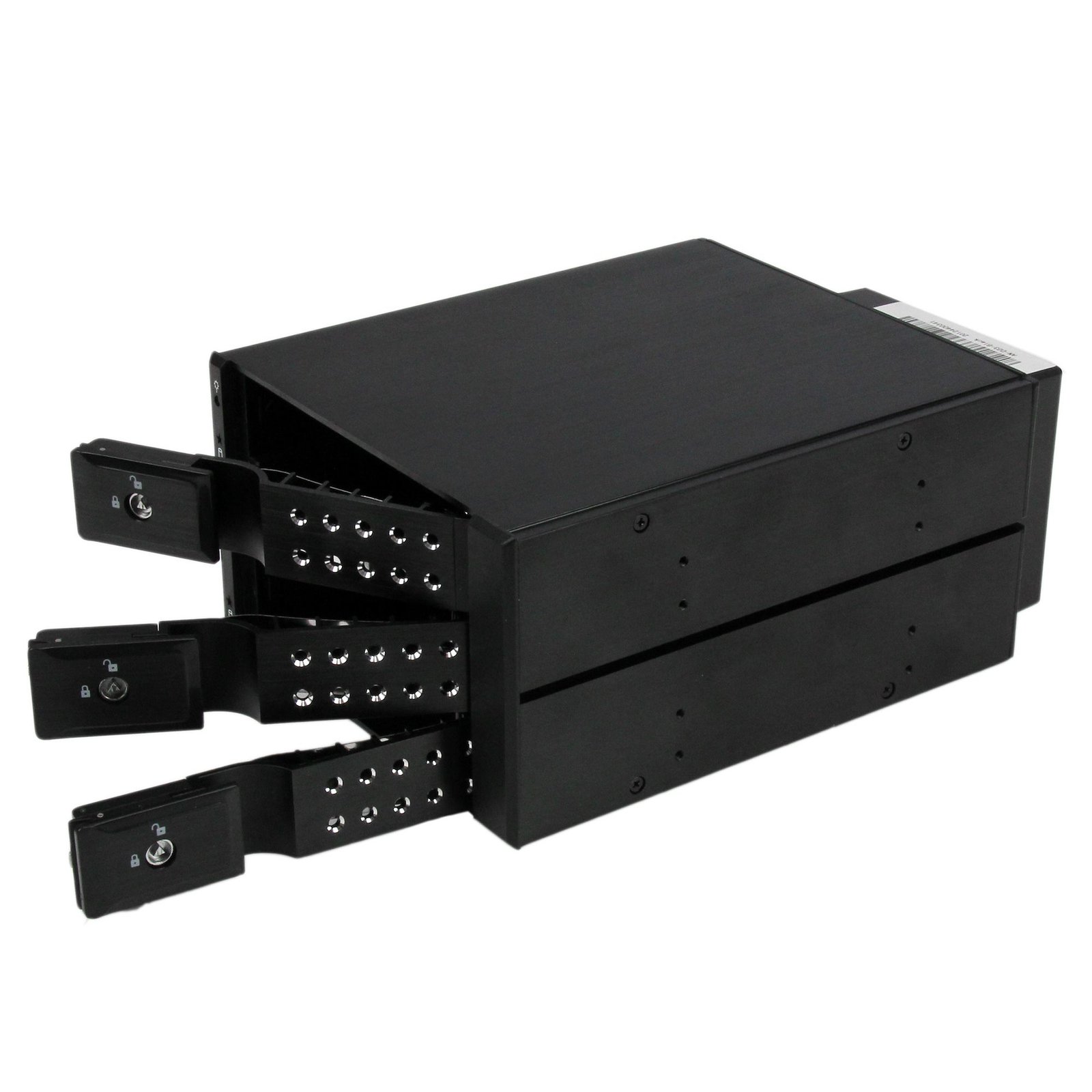

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
HSB3SATSASBA
GTIN / Barcode
0065030855297
Brand Name
StarTech.com
Product Name
StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD
Mfr. Part Number
HSB3SATSASBA
GTIN / Barcode
0065030855297
Storage
Storage drives installed
No
Installed storage drive type
No
Total installed storage capacity
0 TB
Supported storage drive types
HDD
Number of storage drives supported
3
Maximum supported storage capacity
12 TB
Storage drive interface
Serial ATA, Serial ATA II, Serial ATA III
Storage drive size
3.5"
Data transfer rate
6 Gbit/s
Hot-swap drive bays
Yes
Ports & interfaces
Host ports
3
SATA host port
Yes
Number of SATA power connectors
2
SATA power connector type
SATA 15-pin
Design
Internal
No
Product colour
Black
LED indicators
Activity, Power
Number of fans
1 fan(s)
Performance
Backplanes support
Yes
Weight & dimensions
Width
145 mm
Depth
194.1 mm
Height
110 mm
Weight
1.2 kg
Packaging data
Package width
253 mm
Package depth
184 mm
Package height
126 mm
Package weight
1.2 kg
Packaging content
Cables included
SATA
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Operating relative humidity (H-H)
5 - 85%
Storage temperature (T-T)
-20 - 60 °C
Other features
Compliance certificates
RoHS
Logistics data
Products per master (outer) case
8 pc(s)
Master (outer) case length
391 mm
Master (outer) case width
541 mm
Master (outer) case height
287 mm
Harmonized System (HS) code
84717020
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Storage (SSD/HDD/NAS)
Customer reviews
No reviews yet. If you have bought this,
yours would be the first.
