Home/Computers & IT Hardware/Monitors & Displays/StarTech.com 2-Port USB-C KVM Switch, Single 4K 60Hz DisplayPort Monitor, 3.5mm Audio, 6x USB Hub Ports, Hot Key Switching, Thunderbolt 3/4 Compatible - TAA
StarTech.com
StarTech.com 2-Port USB-C KVM Switch, Single 4K 60Hz DisplayPort Monitor, 3.5mm Audio, 6x USB Hub
Availability: In StockMfr. Part#: STA-SV231DPUCA
$315.85Save 5% · $15.04
$300.81USD
Prices shown in USD. Taxes, duties and freight are quoted separately.
Call 856-283-0457 for volume pricing.
Business & Quantity Discounts Available
Flexible Terms for Qualified Organizations
Supporting Commercial, Government & Education Buyers
DisplayPort 1.2 KVM | 6x USB Hub Ports | Digital & Analog Audio | TAA Compliant
This 2-port KVM switch combines 4K 60Hz capabilities with control of two USB-C DP Alt-mode, Thunderbolt 3, or Thunderbolt 4 computers.
4K 60Hz Resolution
This 2-Port USB-C KVM switches between two USB-C enabled computers viewed over a single DisplayPort monitor. It supports up to 4K 60Hz (4:4:4) resolutions with 6x USB-A 480Mbps hub ports. This KVM is ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Analog and Digital Audio
This USB-C DisplayPort KVM Switch supports 2-channel analog and digital audio output, as well as microphone input, through 3.5mm or USB ports. This provides the user with centralized audio control through the KVM switch. Audio profiles are selectable with hot key commands.
Intuitive Control

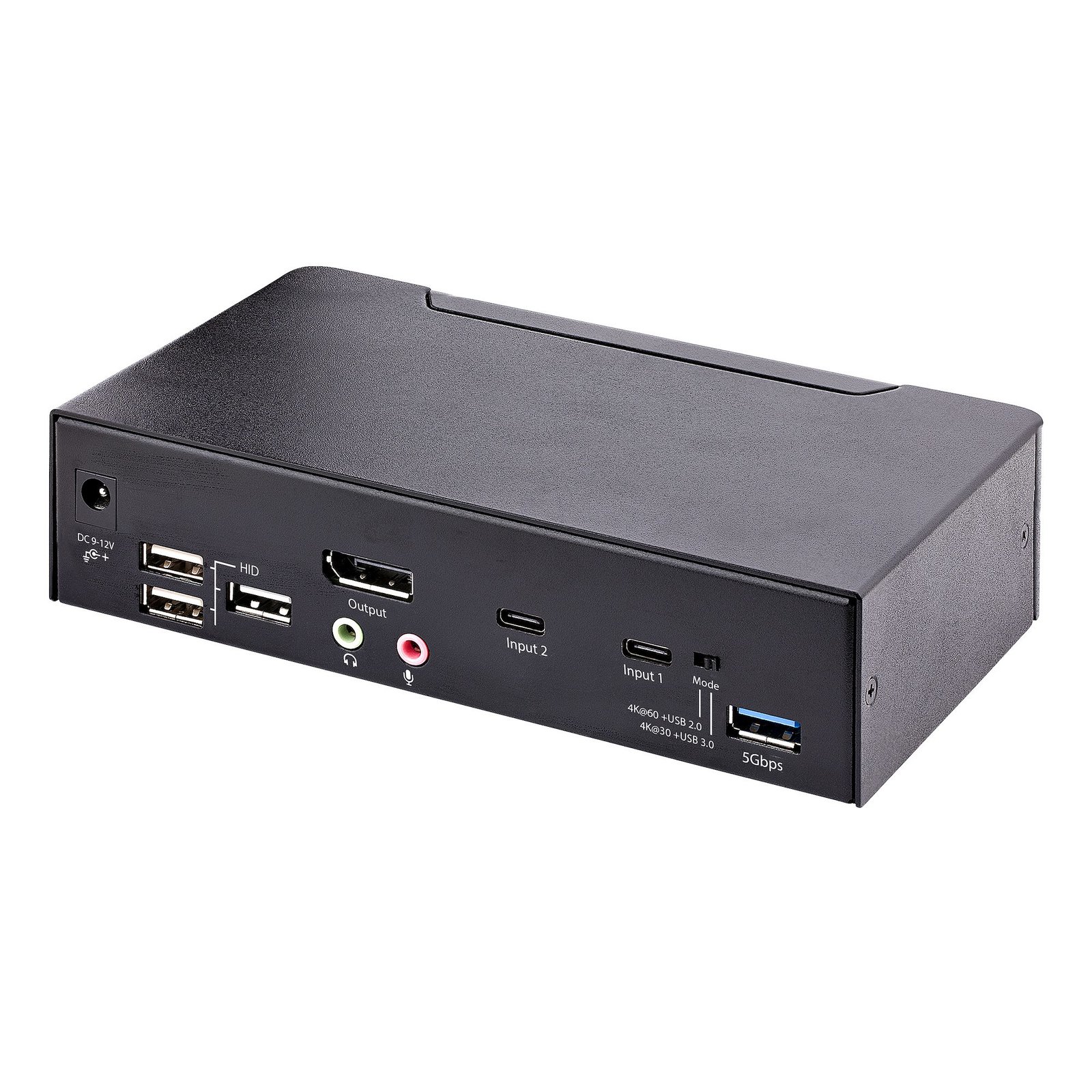

The front panel push button and hot key functions make it easy to switch between computers. Install host computers using a single USB-C cable to connect to the KVM. USB HID and USB Hub ports on the front and rear ensure convenient setup configuration and access to USB peripherals. The metal housing of the KVM Switch is suitable for many installation environments.
This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.
Product Specifications
Manufacturer
STARTECH.COM
Manufacturer Part Number
STA-SV231DPUCA
GTIN / Barcode
0065030872201
Brand Name
StarTech.com
Product Name
StarTech.com 2-Port USB-C KVM Switch, Single 4K 60Hz DisplayPort Monitor, 3.5mm Audio, 6x USB Hub Ports, Hot Key Switching, Thunderbolt 3/4 Compatible - TAA
Mfr. Part Number
STA-SV231DPUCA
GTIN / Barcode
0065030872201
Ports & interfaces
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
DisplayPort version
1.2
Console ports
3.5mm headphone, 3.5mm mic, DisplayPort
Console USB ports quantity
6
Console DisplayPorts ports quantity
1
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Headphone outputs
1
Number of microphone inputs
1
Performance
HD type
4K Ultra HD
Maximum resolution
5120 x 1440 pixels
Video bandwidth
60 Hz
Data transfer rate (max)
5 Gbit/s
Scan interval
3,8,15,30 s
HDCP
Yes
Chipset
Parade - PS8461, Etron - EJ899I
Audio channels
2.0
Number of displays supported
1
Design
Rack mounting
No
Product colour
Black
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Mean time between failures (MTBF)
158000 h
Display
Built-in display
No
Power
Power source
AC
Input voltage
100 - 240 V
Input current
1.2 A
Output voltage
12 V
Output current
3 A
Power plug type
Type M
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
140 mm
Depth
160 mm
Height
40 mm
Weight
600 g
Packaging data
Package width
186 mm
Package depth
240 mm
Package height
94 mm
Package weight
1 kg
Packaging content
Quick installation guide
Yes
AC adapter included
Yes
Rubber feet
Yes
Other features
IP control
No
Logistics data
Master (outer) case width
300 mm
Master (outer) case length
397 mm
Master (outer) case height
257 mm
Products per master (outer) case
6 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Monitors & Displays
Customer reviews
No reviews yet. If you have bought this,
yours would be the first.
