Home/Computers & IT Hardware/Desktops & Workstations/StarTech.com 2 Port Quad Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR - Desktop 4K DP 1.2 KVM with 2 Port USB 3.0 Hub (5Gbps) & 4x USB 2.0 HID Ports, Audio - Hotkey Switching - TAA
StarTech.com
StarTech.com 2 Port Quad Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR - Desktop DP 1.2 with USB
Availability: In StockMfr. Part#: SV231QDPU34K
$753.73Save 5% · $35.89
$717.84USD
Prices shown in USD. Taxes, duties and freight are quoted separately.
Call 856-283-0457 for volume pricing.
Business & Quantity Discounts Available
Flexible Terms for Qualified Organizations
Supporting Commercial, Government & Education Buyers
KVM with USB | Quad Monitor | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and drives four large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate

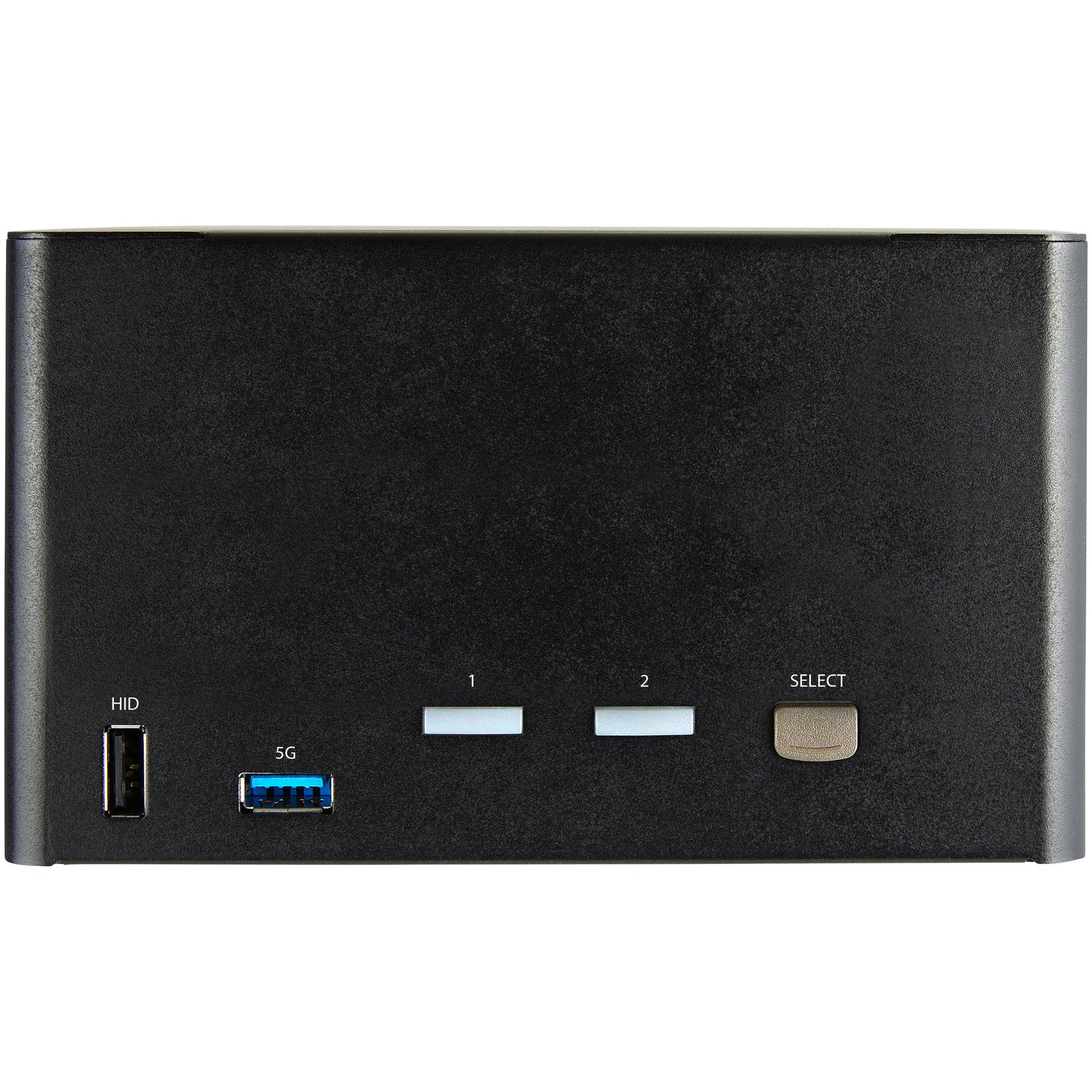

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
SV231QDPU34K
GTIN / Barcode
0065030881777
Brand Name
StarTech.com
Product Name
StarTech.com 2 Port Quad Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR - Desktop 4K DP 1.2 KVM with 2 Port USB 3.0 Hub (5Gbps) & 4x USB 2.0 HID Ports, Audio - Hotkey Switching - TAA
Mfr. Part Number
SV231QDPU34K
GTIN / Barcode
0065030881777
Ports & interfaces
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
DisplayPorts quantity
12
DisplayPort version
1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
2
Console ports
3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity
4
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Audio connections
Yes
Headphone outputs
3
DC-in jack
Yes
Performance
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Video bandwidth
60 Hz
Data transfer rate (max)
5 Gbit/s
Scan interval
3,8,15,30 s
HDCP
Yes
Daisy chain
No
Chipset
Genesys Logic - GL3523
Audio channels
5.1
Number of displays supported
4
Design
Rack mounting
No
Product colour
Black
Housing material
Steel
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Mean time between failures (MTBF)
156000 h
Certification
CE, FCC, RoHS
Display
Built-in display
No
On Screen Display (OSD)
No
Power
Input voltage
100 - 240 V
Input current
1 A
Output voltage
12 V
Output current
3 A
Power consumption (typical)
36 W
External power adapter
Yes
Power plug type
Type M
Compatible power plug types
EU, JP, UK, US
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
180 mm
Depth
438 mm
Height
43 mm
Weight
959 g
Packaging data
Package width
187 mm
Package depth
253 mm
Package height
102 mm
Packaging content
Manual
Yes
Rubber feet
Yes
Other features
IP control
No
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
398 mm
Master (outer) case length
322 mm
Master (outer) case height
291 mm
Products per master (outer) case
6 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Desktops & Workstations
