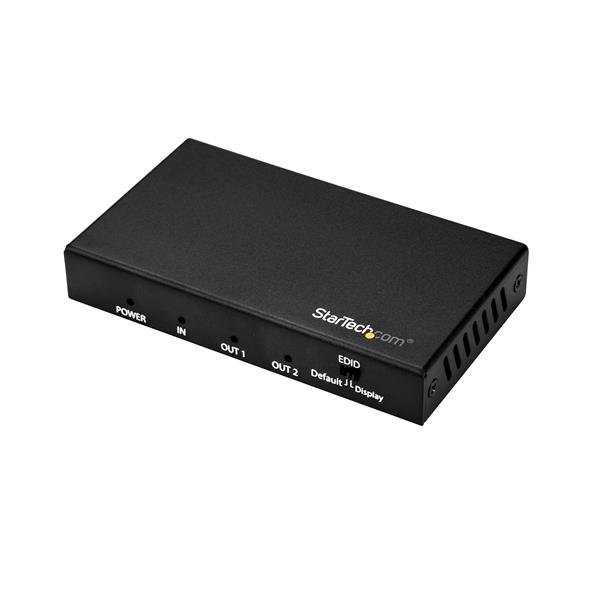

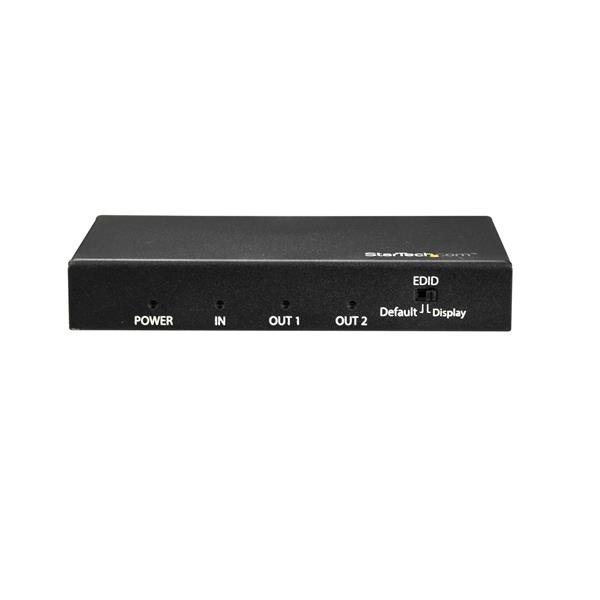

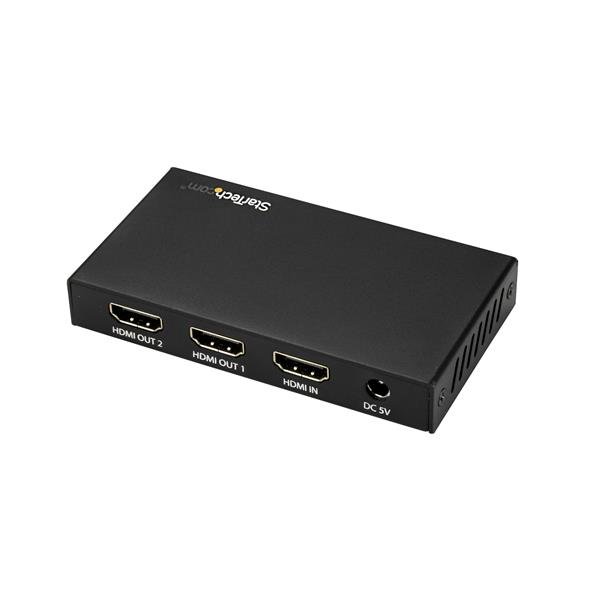

StarTech.com 2-Port HDMI Splitter with HDR - 4K 60Hz STA-ST122HD202
Product details
This 2-Port 4K HDMI splitter connects your HDMI video source to two HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.
True 4K at 60Hz and HDR
With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.
The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.
Widely Compatible
The 2-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.
Easy Installation
For hassle-free setup, the 1x2 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.
ST122HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
- Business & Quantity Discounts Available
- Flexible Terms for Qualified Organizations
- Supporting Commercial, Government & Education Buyers
- Trusted B2B Ordering & Secure Payments
Specifications
| Manufacturer | STARTECH.COM |
|---|---|
| Manufacturer Part Number | STA-ST122HD202 |
| Barcode | 0065030880404 |
| Brand Name | StarTech.com |
| Product Name | StarTech.com 2-Port HDMI Splitter with HDR - 4K 60Hz |
| Mfr. Part Number | STA-ST122HD202 |
|---|---|
| Barcode | 0065030880404 |
| Ports & interfaces | |
| Video port type | HDMI |
| Video out | 2x HDMI |
| HDMI version | 2.0 |
| Video ports quantity | 2 |
| Features | |
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Power LED | Yes |
| Plug and Play | Yes |
| Supported video modes | 720p, 1080p |
| LED indicators | Yes |
| Certification | CE, FCC |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.2 A |
| Output voltage | 5 V |
| Output current | 1 A |
| Power consumption (typical) | 5 W |
| Weight & dimensions | |
| Dimensions (WxDxH) | 56 x 100 x 17 mm |
| Weight | 159 g |
| Packaging data | |
| Package width | 154 mm |
| Package depth | 217 mm |
| Package height | 58 mm |
| Package weight | 402 g |
| Packaging content | |
| User guide | Yes |
| AC adapter included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Technical details | |
| Supported audio channels | 7.1 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 462 mm |
| Master (outer) case length | 307 mm |
| Master (outer) case height | 485 mm |
| Products per master (outer) case | 30 pc(s) |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Cables & Connectivity |
