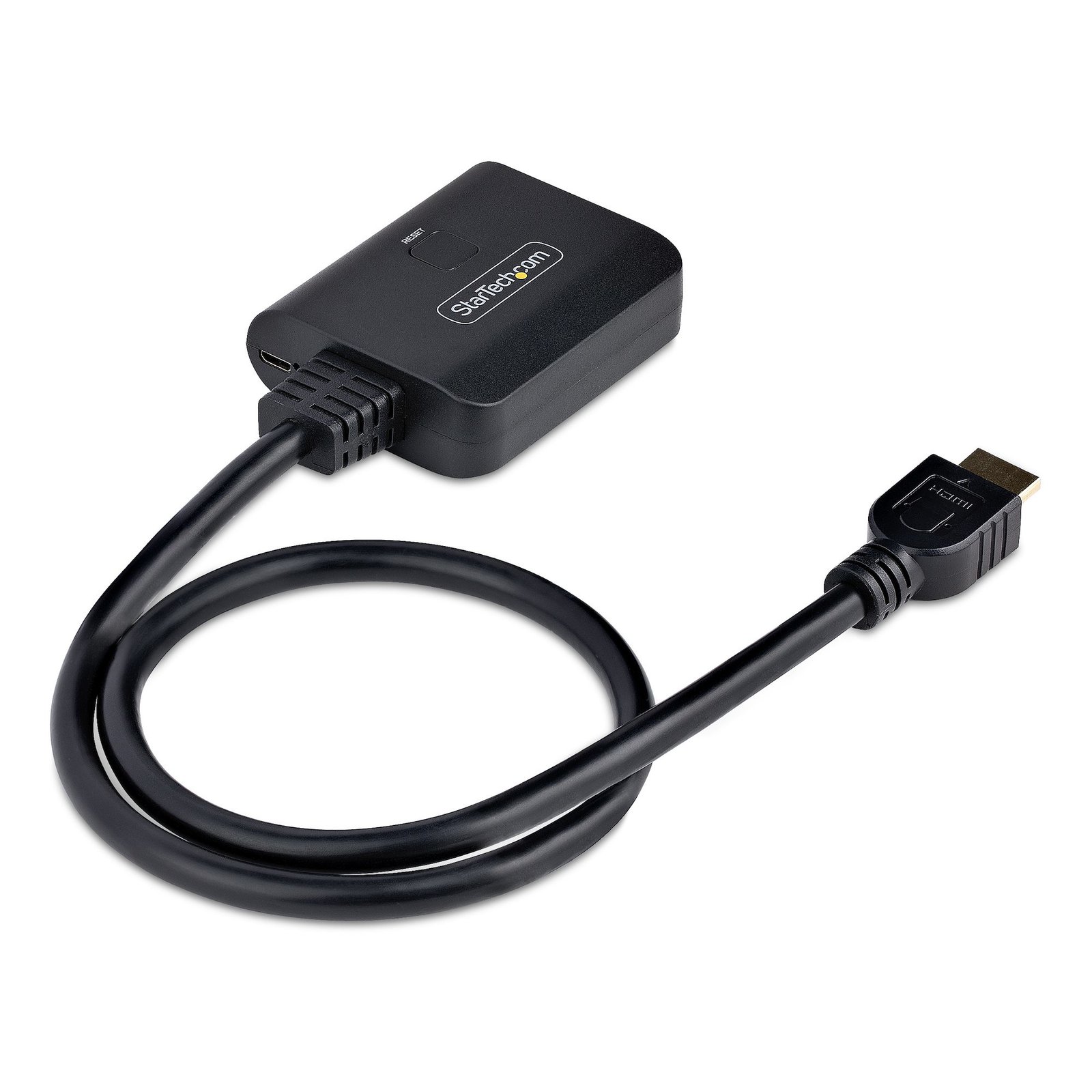

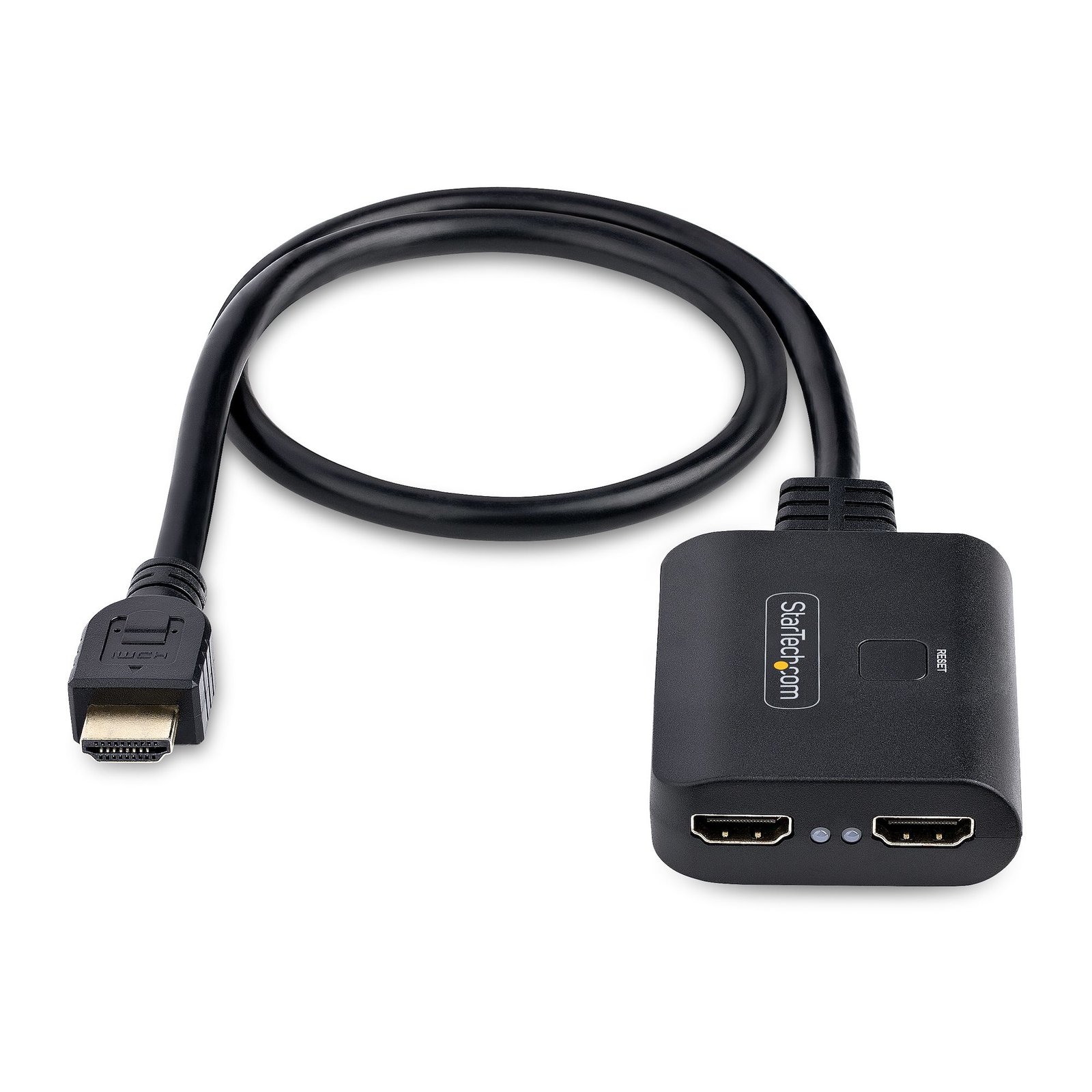

StarTech.com 2-Port HDMI Splitter, 4K 60Hz 2.0 Video, 1 In 2 Out, 1x2 Display/Output HDR/HDCP, 20in
Product details
This 2-port HDMI splitter displays the same image from an HDMI video source onto two HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), HDCP content, and 7.1 channel audio.
4K 60Hz Resolution
This 2-way HDMI splitter supports up to 4K 60Hz resolution and 4:4:4 chroma subsampling. Display 4K content on both your 4K displays or downscale the resolution to 1080p to support monitors with different resolutions, thanks to the built-in scaler. Ideal for environments containing displays of mixed resolutions.
USB Powered
The splitter includes a 31inch (78cm) USB Micro-B to Type-A power cable and USB wall charger. If an outlet is not available or within reach, the USB power cable can be connected to a 5V 1A USB Type-A port.
Robust Installation Options
This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The reset button enables hassle-free hot plug EDID detection, without the need of unplugging cables. The splitter features 8kV air and 6kV contact Electrostatic Discharge (ESD) protection, suitable for installation in a variety of environments.
This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 856-283-0457 for volume pricing.
- Business & Quantity Discounts Available
- Flexible Terms for Qualified Organizations
- Supporting Commercial, Government & Education Buyers
- Trusted B2B Ordering & Secure Payments
Specifications
| Manufacturer | STARTECH.COM |
|---|---|
| Manufacturer Part Number | STA-HDMI-SPLITTER-4K60UP |
| Barcode | 0065030897556 |
| Brand Name | StarTech.com |
| Product Name | StarTech.com 2-Port HDMI Splitter, 4K 60Hz HDMI 2.0 Video, 4K HDMI Splitter 1 In 2 Out, 1x2 HDMI Display/Output Splitter, HDR/HDCP, 20in (50cm) Built-in HDMI Cable |
| Mfr. Part Number | STA-HDMI-SPLITTER-4K60UP |
|---|---|
| Barcode | 0065030897556 |
| Ports & interfaces | |
| Video port type | HDMI |
| Video out | 2x HDMI |
| HDMI version | 2.0 |
| Video ports quantity | 2 |
| Features | |
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Maximum resolution | 4096 x 2160 pixels |
| HD type | 4K Ultra HD |
| Maximum operating distance | 5 m |
| Maximum refresh rate | 60 Hz |
| High Dynamic Range (HDR) supported | Yes |
| Cable length | 0.5 m |
| Data transfer rate | 18 Gbit/s |
| HDCP | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| LED indicators | Power |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.3 A |
| Output voltage | 5 V |
| Output current | 1 A |
| USB powered | Yes |
| Weight & dimensions | |
| Width | 55 mm |
| Depth | 65 mm |
| Height | 19 mm |
| Weight | 92 g |
| Packaging data | |
| Package width | 219 mm |
| Package depth | 180 mm |
| Package height | 52 mm |
| Package weight | 168 g |
| Packaging content | |
| Manual | Yes |
| Cables included | USB Type-A to Micro-USB Type-B |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| Supported audio channels | 7.1 |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 630 mm |
| Master (outer) case length | 470 mm |
| Master (outer) case height | 220 mm |
| Products per master (outer) case | 30 pc(s) |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Monitors & Displays |
