| Manufacturer | Startech.com |
|---|---|
| Manufacturer Part Number | SV231DDVDUA |
| GTIN / Barcode | 0065030835725 |
| Brand Name | StarTech.com |

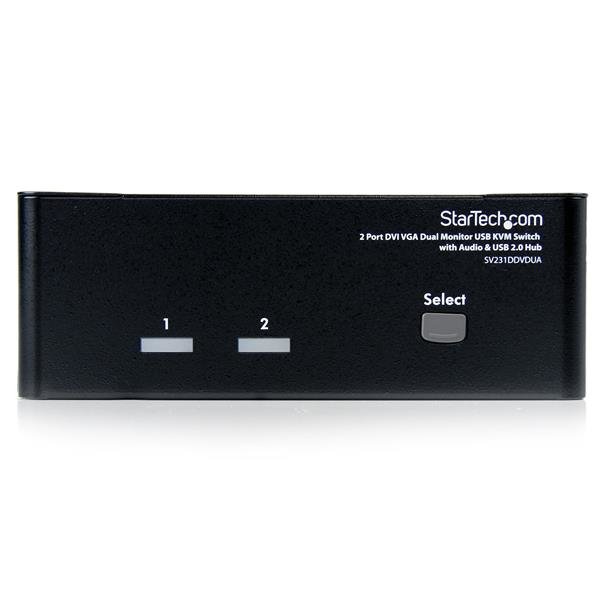

| Product Name | StarTech.com 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub - TAA |
| Mfr. Part Number | SV231DDVDUA |
|---|---|
| GTIN / Barcode | 0065030835725 |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA/DVI-I |

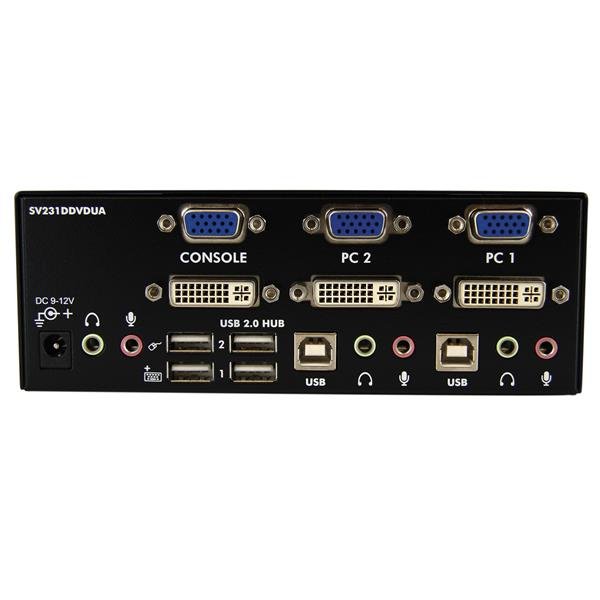

| Console ports | 3.5mm headphone, DVI-I, VGA (D-Sub) |
| USB 2.0 ports quantity | 4 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum digital resolution | 1920 x 1200 pixels |
| DDC2B support | Yes |
| HDCP | Yes |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Power |
| Mean time between failures (MTBF) | 64691 h |
| Certification | CE, FCC |
| Display | |
| Built-in display | No |
| Power | |
| Input voltage | 100-240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 163 mm |
| Height | 57 mm |
| Weight | 750 g |
| Packaging data | |
| Package width | 198 mm |
| Package depth | 294 mm |
| Package height | 72 mm |
| Package weight | 1.29 kg |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Rubber feet | Yes |
| Other features | |
| Audio support | Yes |
| IP control | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 454 mm |
| Master (outer) case height | 332 mm |
| Products per master (outer) case | 12 pc(s) |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Monitors & Displays |
