Home/Networking & Communications/Network Switches/StarTech.com 2-Port DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, Single Display, DP 1.4, 2x USB 3.0 Ports, 4x USB 2.0 HID Ports, Push-Button & Hotkey Switching, TAA Compliant - OS Independent, Metal Housing
StarTech.com

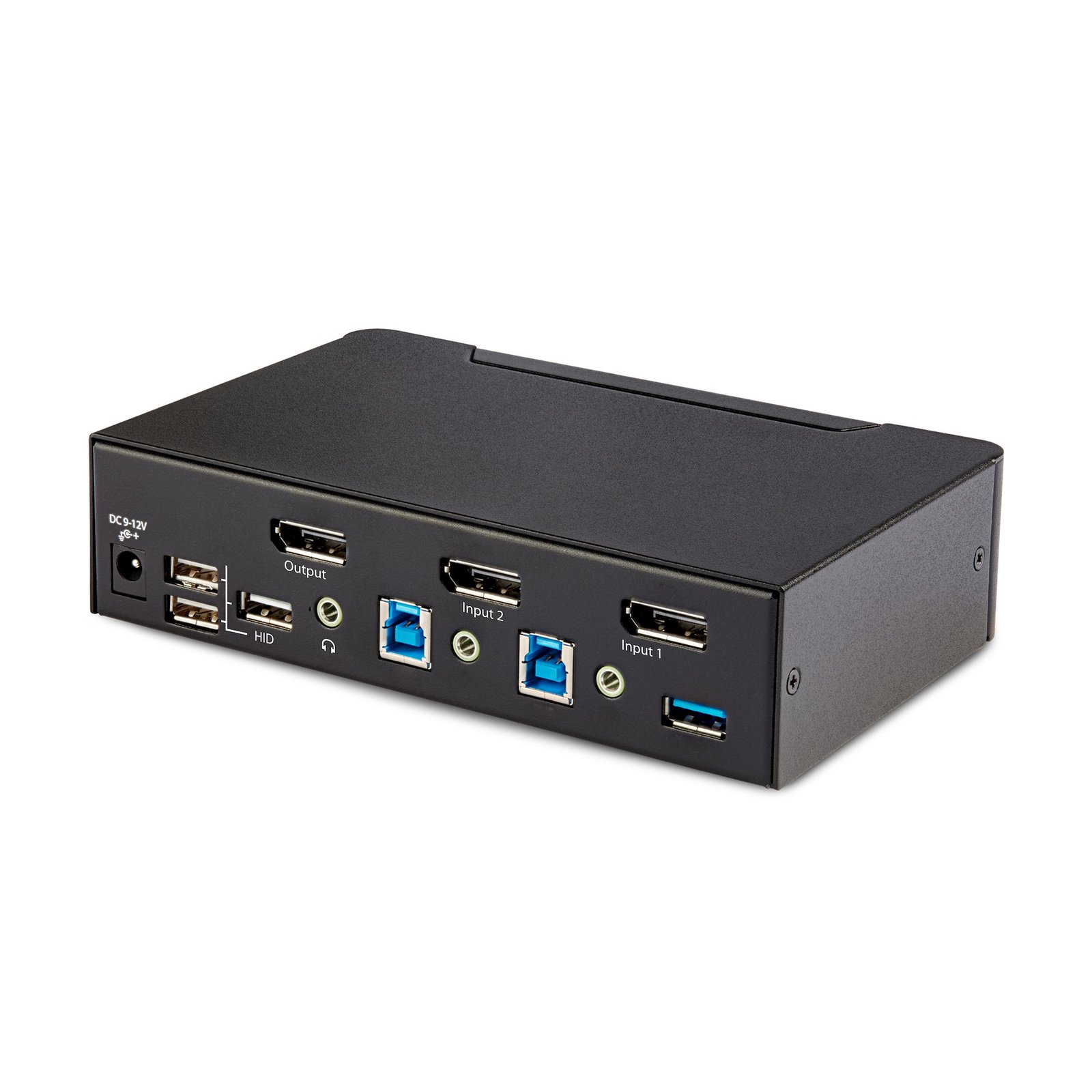

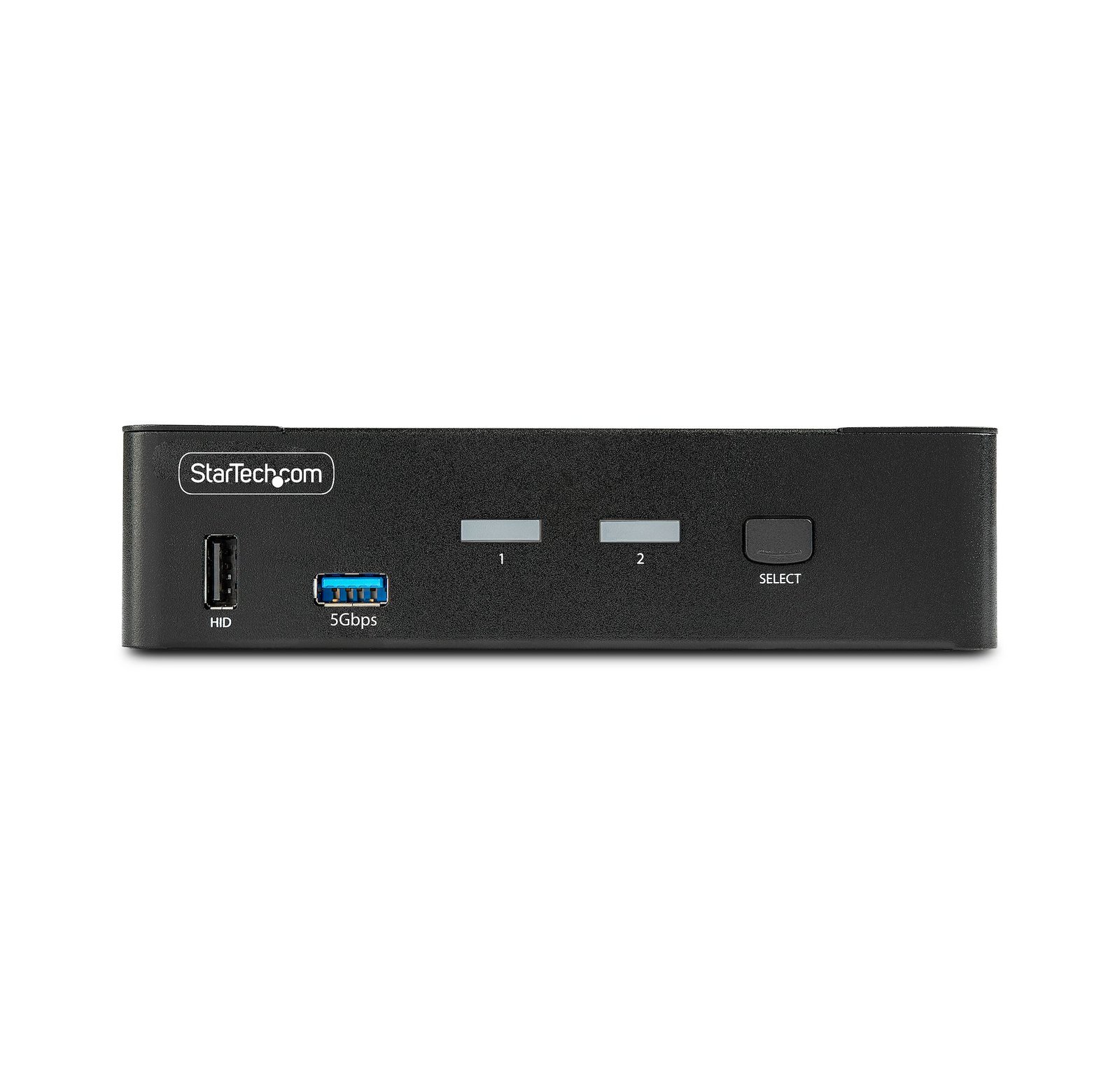

StarTech.com 2-Port DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, Single Display, DP 1.4, 2x USB 3.0
Availability: In StockMfr. Part#: D86A2-2-PORT-8K-KVM
$520.45Save 5% · $24.78
$495.67USD
Prices shown in USD. Taxes, duties and freight are quoted separately.
Call 856-283-0457 for volume pricing.
Business & Quantity Discounts Available
Flexible Terms for Qualified Organizations
Supporting Commercial, Government & Education Buyers
Share a mouse, keyboard, USB 5Gbps Hub, and 8K 60Hz DisplayPort between two DisplayPort enabled computers
Share and switch between two USB-A and DisplayPort-enabled computers, using this DisplayPort KVM Switch. Share an 8K 60Hz DisplayPort monitor, a keyboard and mouse, two USB 5Gbps devices, and two additional USB 2.0 devices.
High-Resolution 8K 60Hz Video
This KVM supports resolutions up to 8K 60Hz or 4K 144Hz/120Hz. Daisy chain additional monitors via MST pass-through. The KVM supports ultrawide resolutions of up to 5120x1440 at 60Hz. Ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Customizable Switching
This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of audio and video, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
Universal Compatibility
The TAA-Compliant KVM Switch offers universal compatibility, working with all operating systems, including Windows, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms, including Intel and AMD.
Reliable Performance
The durable metal housing helps prevent Electro-magnetic Interference (EMI). Overcurrent Protection (OCP) ensures peripherals don't overdraw power, reducing the occurrence of device dropouts or shutdowns.
Product Specifications
Manufacturer
Startech.com
Manufacturer Part Number
D86A2-2-PORT-8K-KVM
GTIN / Barcode
0065030894906
Brand Name
StarTech.com
Product Name
StarTech.com 2-Port DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, Single Display, DP 1.4, 2x USB 3.0 Ports, 4x USB 2.0 HID Ports, Push-Button & Hotkey Switching, TAA Compliant - OS Independent, Metal Housing
Mfr. Part Number
D86A2-2-PORT-8K-KVM
GTIN / Barcode
0065030894906
Ports & interfaces
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
DisplayPorts quantity
2
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
2
Console ports
3.5mm headphone, DisplayPort, USB A
Console USB ports quantity
6
Console DisplayPorts ports quantity
1
Audio connections
Yes
Headphone outputs
3
DC-in jack
Yes
Performance
HD type
8K Ultra HD
Maximum resolution
7680 x 4320 pixels
Data transfer rate (max)
5 Gbit/s
Scan interval
3,8,15,30 s
High Dynamic Range (HDR) supported
Yes
HDCP
Yes
Plug and Play
Yes
Daisy chain
No
Chipset
GL-3523
HDCP version
1.4/2.2
Design
Rack mounting
No
Product colour
Black
Housing material
Steel
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Mean time between failures (MTBF)
130000 h
Display
Built-in display
No
On Screen Display (OSD)
No
Power
Power source
DC
Input voltage
100 - 240 V
Input current
1 A
Output voltage
12 V
Output current
3 A
Power consumption (typical)
36 W
Compatible power plug types
EU, JP, UK, US
Sustainability
Sustainability compliance
Yes
Compliance certificates
CE, RoHS, Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
100 mm
Depth
160 mm
Height
40 mm
Weight
600 g
Packaging data
Package width
187 mm
Package depth
242 mm
Package height
93 mm
Package weight
1 kg
Packaging content
Quick installation guide
Yes
Rubber feet
Yes
Other features
IP control
No
Logistics data
Master (outer) case width
397 mm
Master (outer) case length
257 mm
Master (outer) case height
300 mm
Products per master (outer) case
60 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Network Switches
