Home/Networking & Communications/Network Cabling/StarTech.com 150m (492ft) USB 2.0 Extender over Cat5e/Cat6 Ethernet Cable, Externally Powered USB Extender via RJ45/Network Cable, USB Over Ethernet Cable Extender/Adapter - TAA
StarTech.com
StarTech.com 150m (492ft) USB 2.0 Extender over Cat5e/Cat6 Ethernet Cable, Externally Powered via
Availability: In StockMfr. Part#: STA-C15012-USB-EXTENDER
$270.17Save 5% · $12.87
$257.30USD
Prices shown in USD. Taxes, duties and freight are quoted separately.
Call 856-283-0457 for volume pricing.
Business & Quantity Discounts Available
Flexible Terms for Qualified Organizations
Supporting Commercial, Government & Education Buyers
Connect a remote USB 2.0 device to your computer over long distances
Extend a USB 2.0 connection up to 492 ft (150 m) with this USB Extender Kit. Connect the transmitter to the receiver, using existing Ethernet cabling that is Cat5e or better (e.g., Cat 6, 6a, etc.). No software or configuration is required. Conveniently control remote USB devices in warehouses, classrooms, board rooms, and other long-range application environments.
Overcome Distance Limitations
This USB Extender Kit enables you to exceed the limitations posed by traditional USB cable lengths, to establish long-range USB connections. Use this kit for a wide variety of applications such as remote surveillance and monitoring with a webcam (up to 1080p resolution), controlling machines at a distance, remote printing, connecting retail barcode scanners, and many other applications. In addition, the remote unit is connected to a power source, using the included power adapter, for applications requiring USB bus power.
Rugged Durability

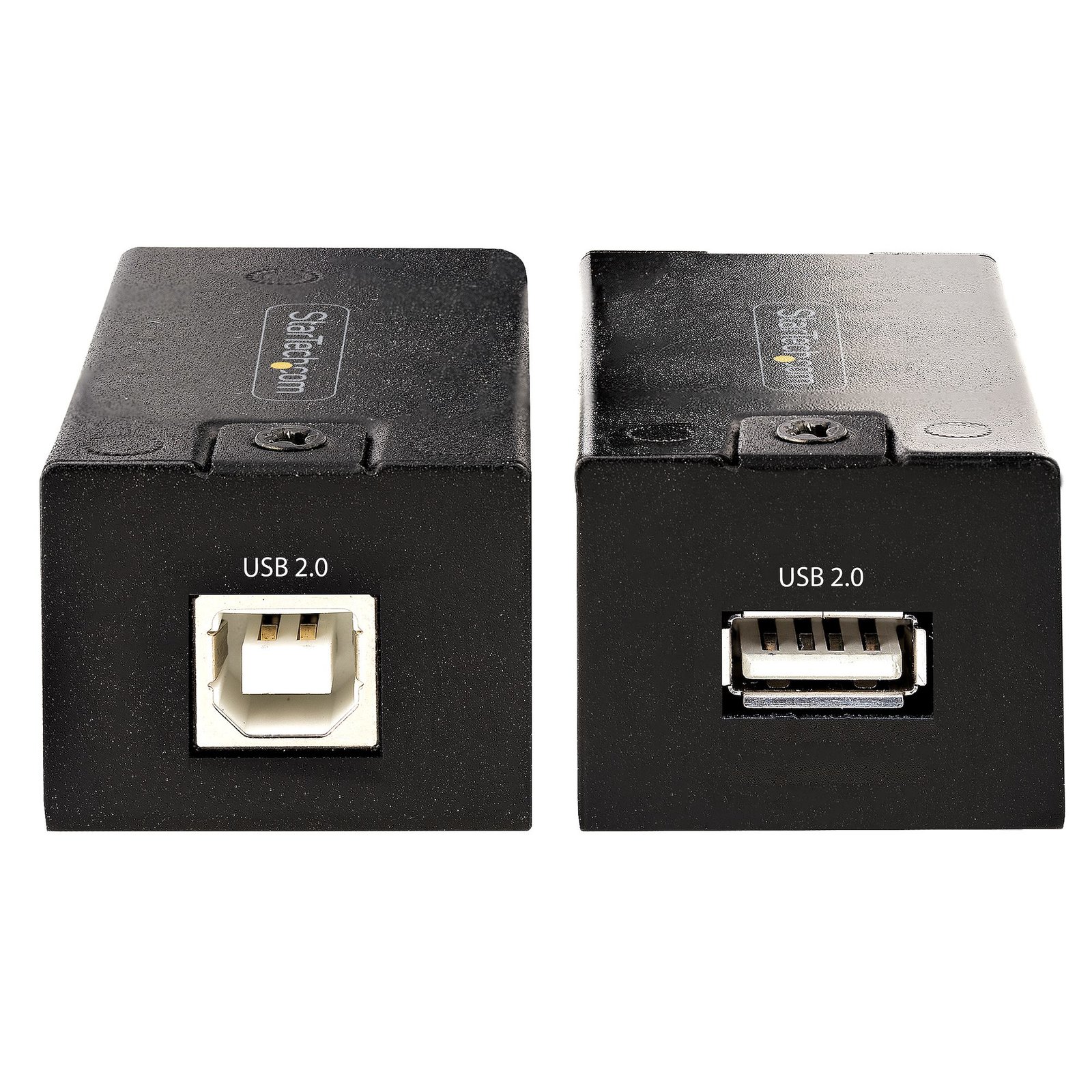

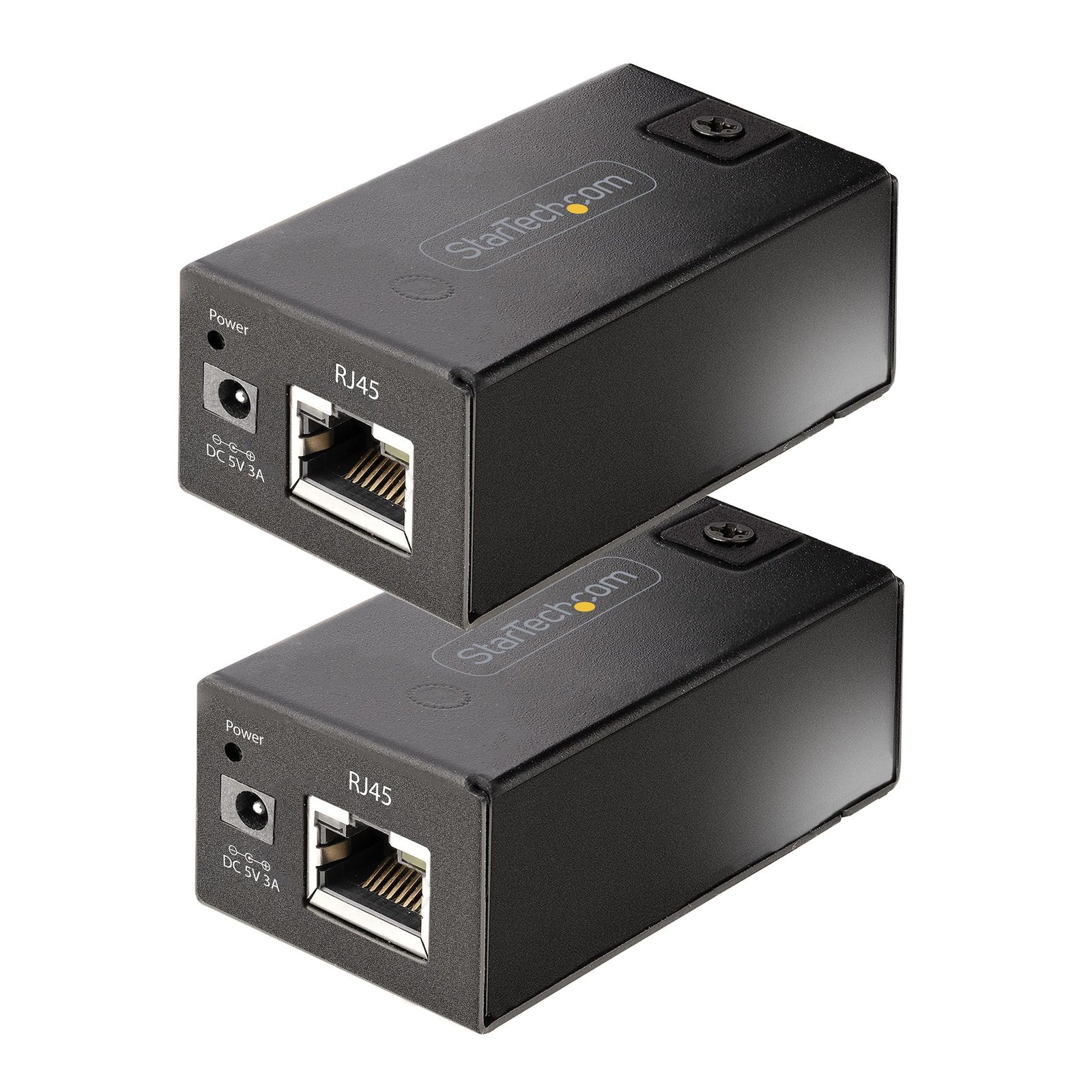

The local and remote units feature a metal exterior for extra protection and longevity in harsher environments. With dimensions of only 1.3 x 1.0 x 2.65 in (32.2 x 25.4 x 67.3 mm), both units are very compact, allowing for installations in tight spaces.
Ease of Use
The USB over Ethernet cable extender kit is compatible with any operating system and does not require any additional software to work. Set up the units by connecting them on a point-to-point connection, using your existing Ethernet cabling (Cat5e or better). This kit is not compatible with network switches and routers. The Extender is compatible with USB 2.0, USB 1.1, and USB 1.0 peripherals.
The C15012-USB-EXTENDER is TAA compliant and backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
Product Specifications
Manufacturer
STARTECH.COM
Manufacturer Part Number
STA-C15012-USB-EXTENDER
GTIN / Barcode
0065030893176
Brand Name
StarTech.com
Product Name
StarTech.com 150m (492ft) USB 2.0 Extender over Cat5e/Cat6 Ethernet Cable, Externally Powered USB Extender via RJ45/Network Cable, USB Over Ethernet Cable Extender/Adapter - TAA
Mfr. Part Number
STA-C15012-USB-EXTENDER
GTIN / Barcode
0065030893176
Technical details
Type
Console transmitter & receiver
Data transfer rate
480 Mbit/s
Maximum transfer distance
150 m
Product colour
Black
Housing material
Metal
LED indicators
Power
Cable types supported
Cat5e, Cat6
Compliance certificates
CE, RoHS
Plug and Play
Yes
Ports & interfaces
USB 2.0 Type-A ports quantity
1
USB 2.0 Type-B ports quantity
1
RJ-45 ports quantity
2
DC-in jack
Yes
Weight & dimensions
Width
67 mm
Depth
32 mm
Height
25 mm
Weight
173 g
Package width
194 mm
Package depth
222 mm
Package height
62 mm
Package weight
173 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Packaging content
Cables included
USB Type-A to USB Type-B
AC adapter included
Yes
Power
Power source type
DC
Power consumption (typical)
15 W
Input voltage
100 - 240 V
Input current
0.6 A
Output voltage
5 V
Output current
3 A
Power plug type
Type H
Logistics data
Master (outer) case width
400 mm
Master (outer) case length
400 mm
Master (outer) case height
278 mm
Products per master (outer) case
12 pc(s)
Brand
StarTech.com
Availability
In Stock
Price Currency
USD
Category
Network Cabling
